Exploded View

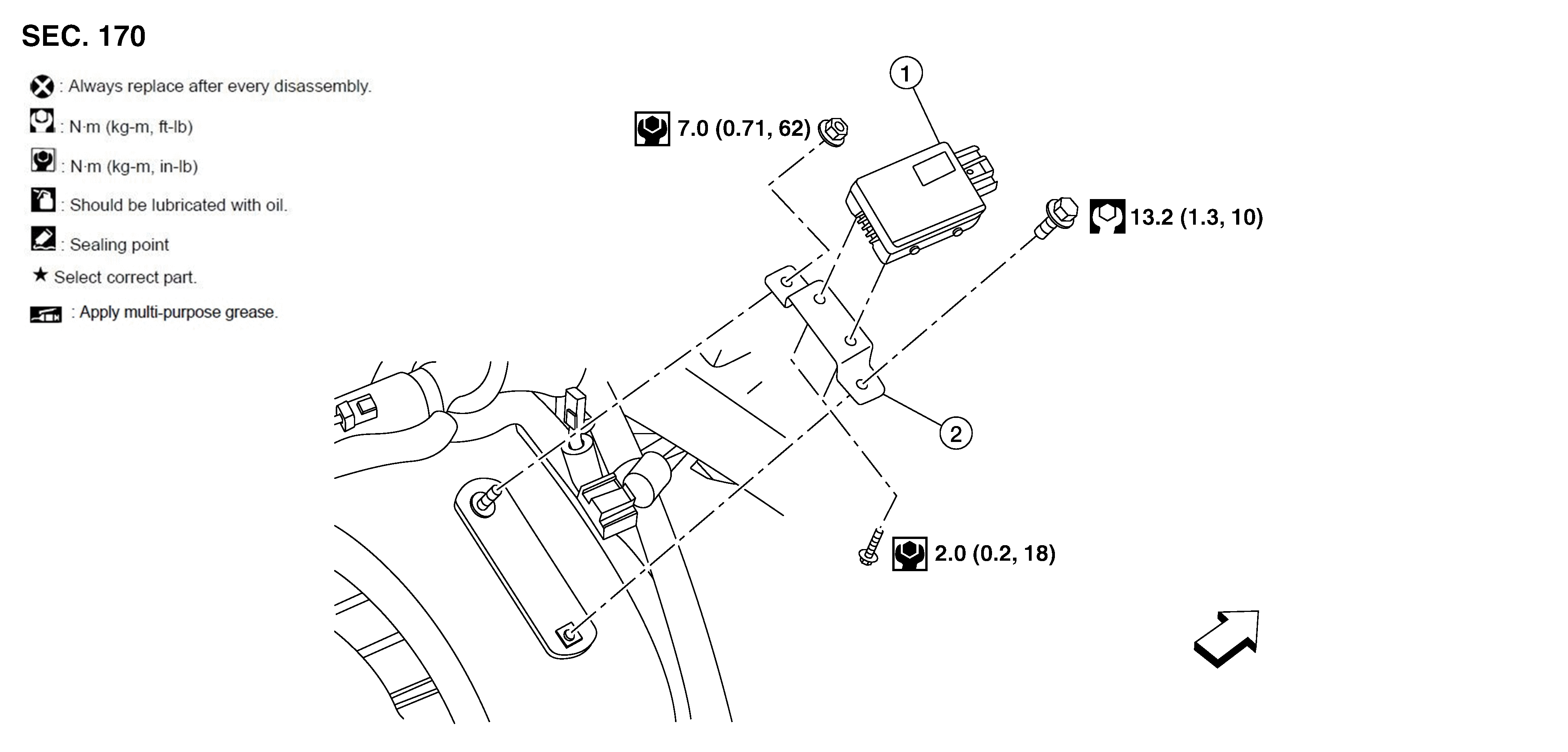

Fig 1: Fuel Pump Control Module (FPCM) With Torque Specifications
GNSDB19491Courtesy of NISSAN NORTH AMERICA, INC.

1.

Fuel pump control module

2.

Fuel pump control module bracket

SYMBOL

Front
