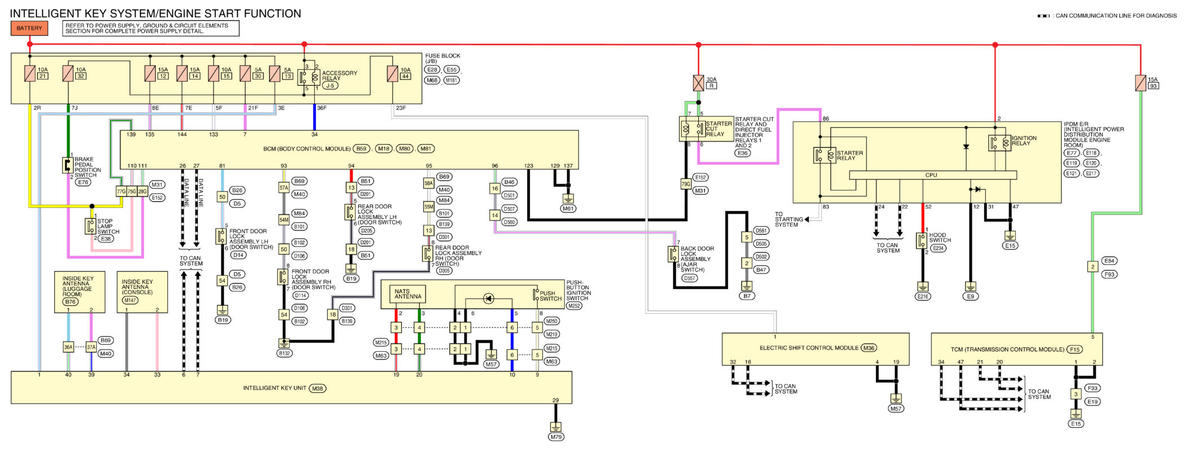

Intelligent Key System/Engine Start Function: Wiring Diagram

GNSW35518Courtesy of NISSAN NORTH AMERICA
