Exploded View

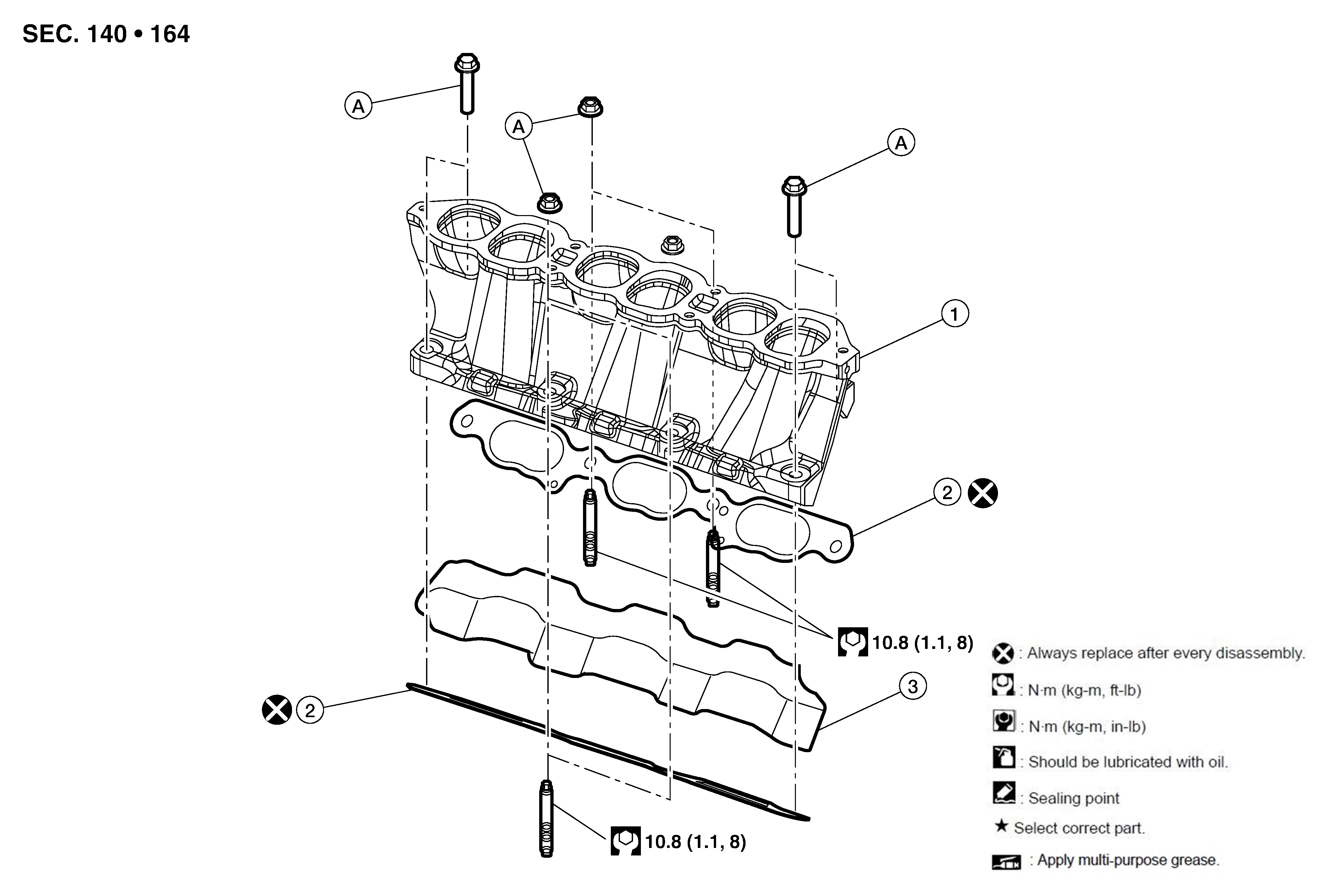

Fig 1: Intake Manifold With Torque Specifications

GNSDB18419

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Intake manifold	2.	Intake manifold gasket	3.	Insulator
A.	Refer to INSTALLATION .
