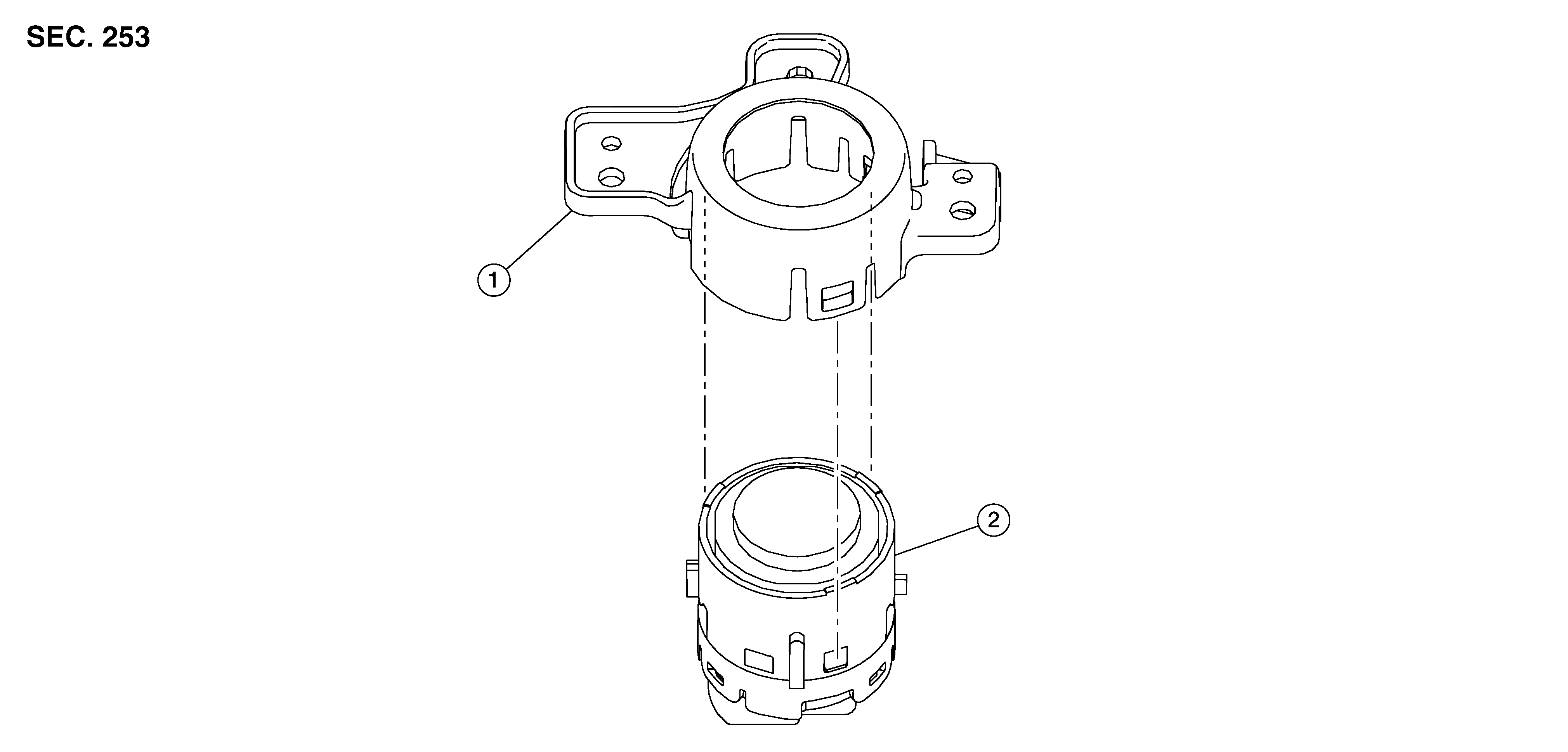

Exploded View

GNSDB17983Courtesy of NISSAN NORTH AMERICA, INC.

1.

Push-button ignition switch housing

2.

Push-button ignition switch
