System Diagram

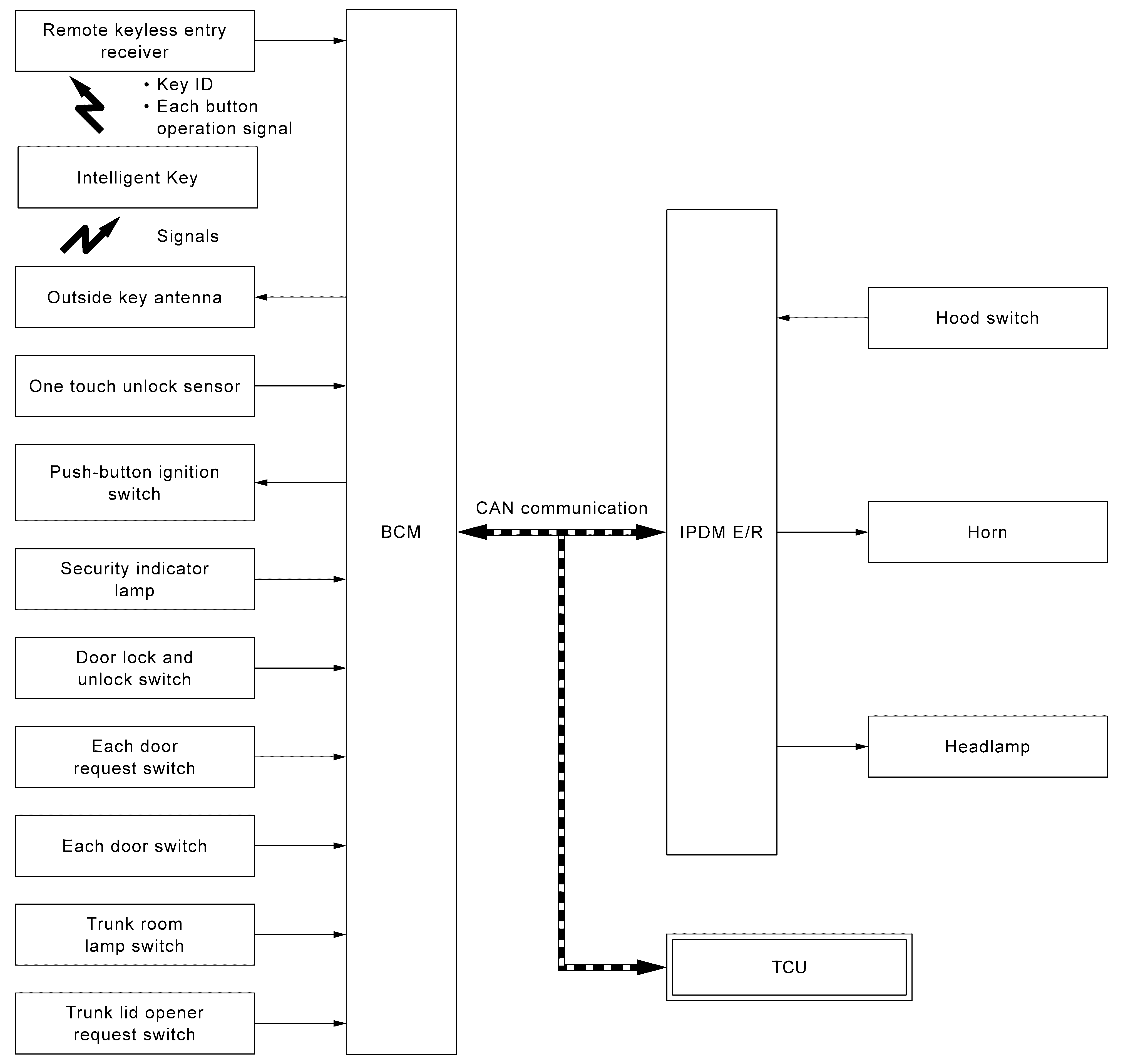

For U.S.A. and Canada

GNSDB39498Courtesy of NISSAN NORTH AMERICA, INC.

For Mexico

GNSDB22729Courtesy of NISSAN NORTH AMERICA, INC.
