Engine Control System (Diagnostics) (1 Of 4)
›
Description
›
System
›
Turbocharger Boost Control
›
System Description - VR30DDTT Engine
›

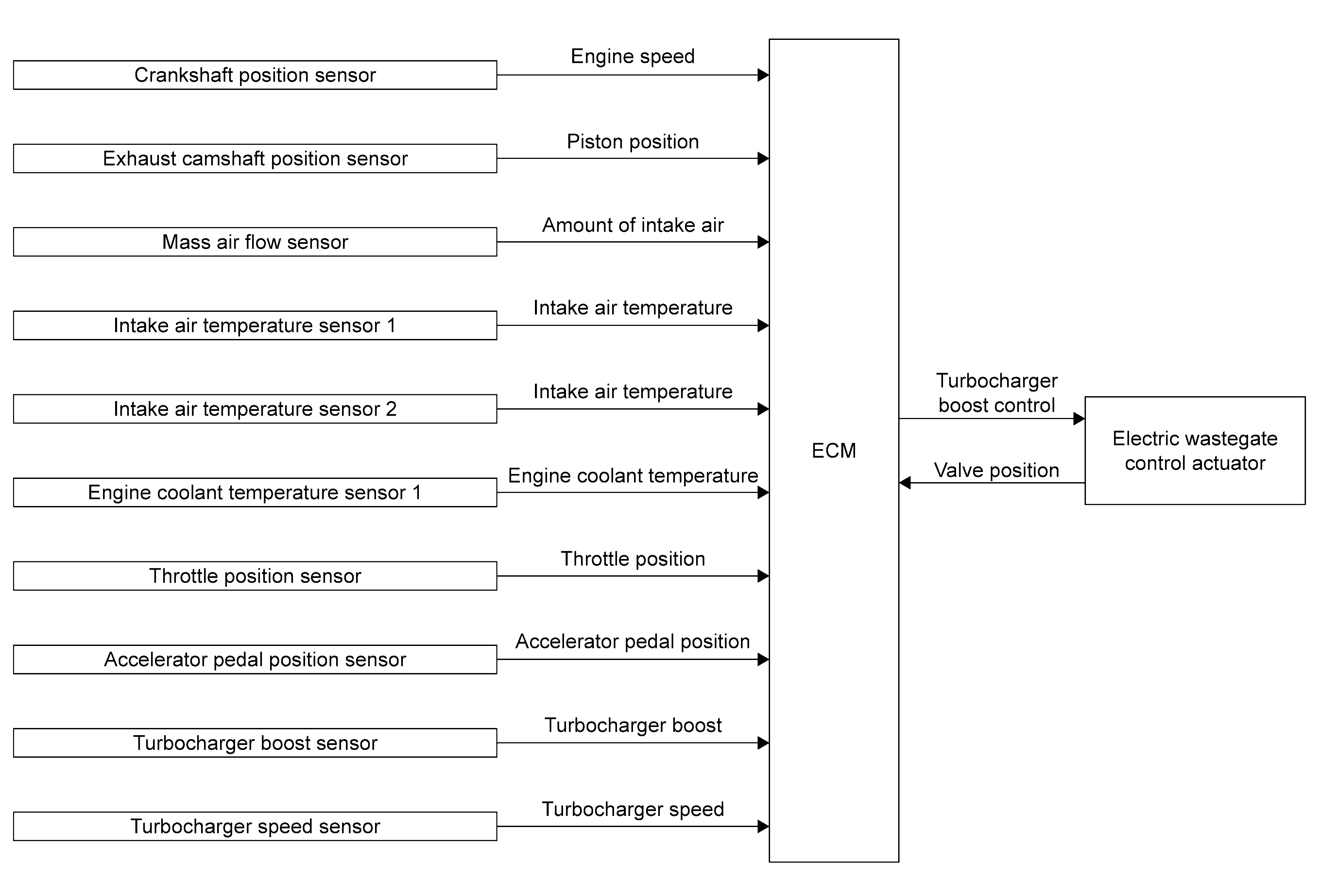

System Diagram
System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
*: Turbocharger speed sensor is not used for turbo low pressure model
Courtesy of NISSAN NORTH AMERICA, INC.
