Circuit Diagram

GNSDB40095Courtesy of NISSAN NORTH AMERICA, INC.

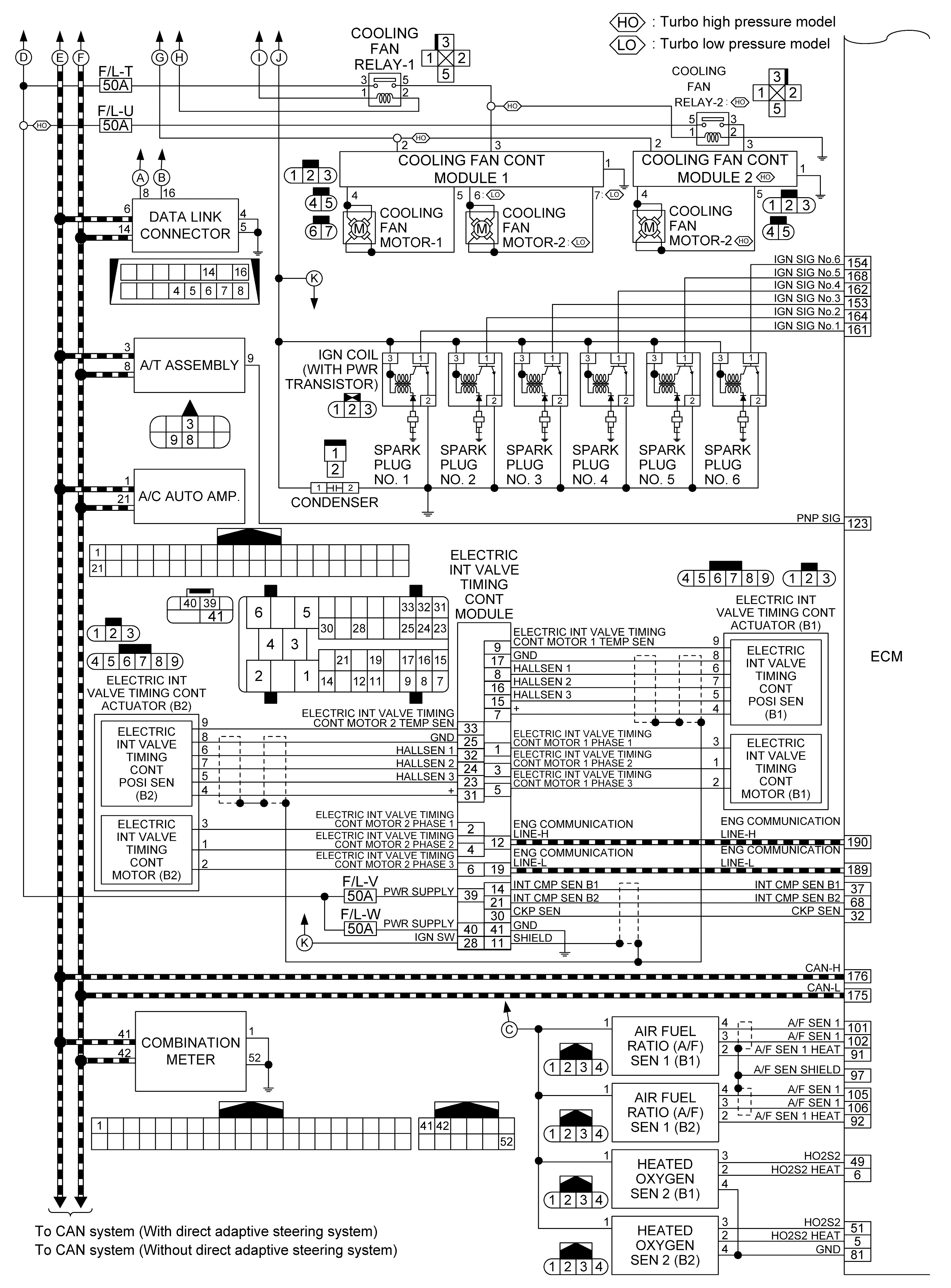

GNSDB39765Courtesy of NISSAN NORTH AMERICA, INC.

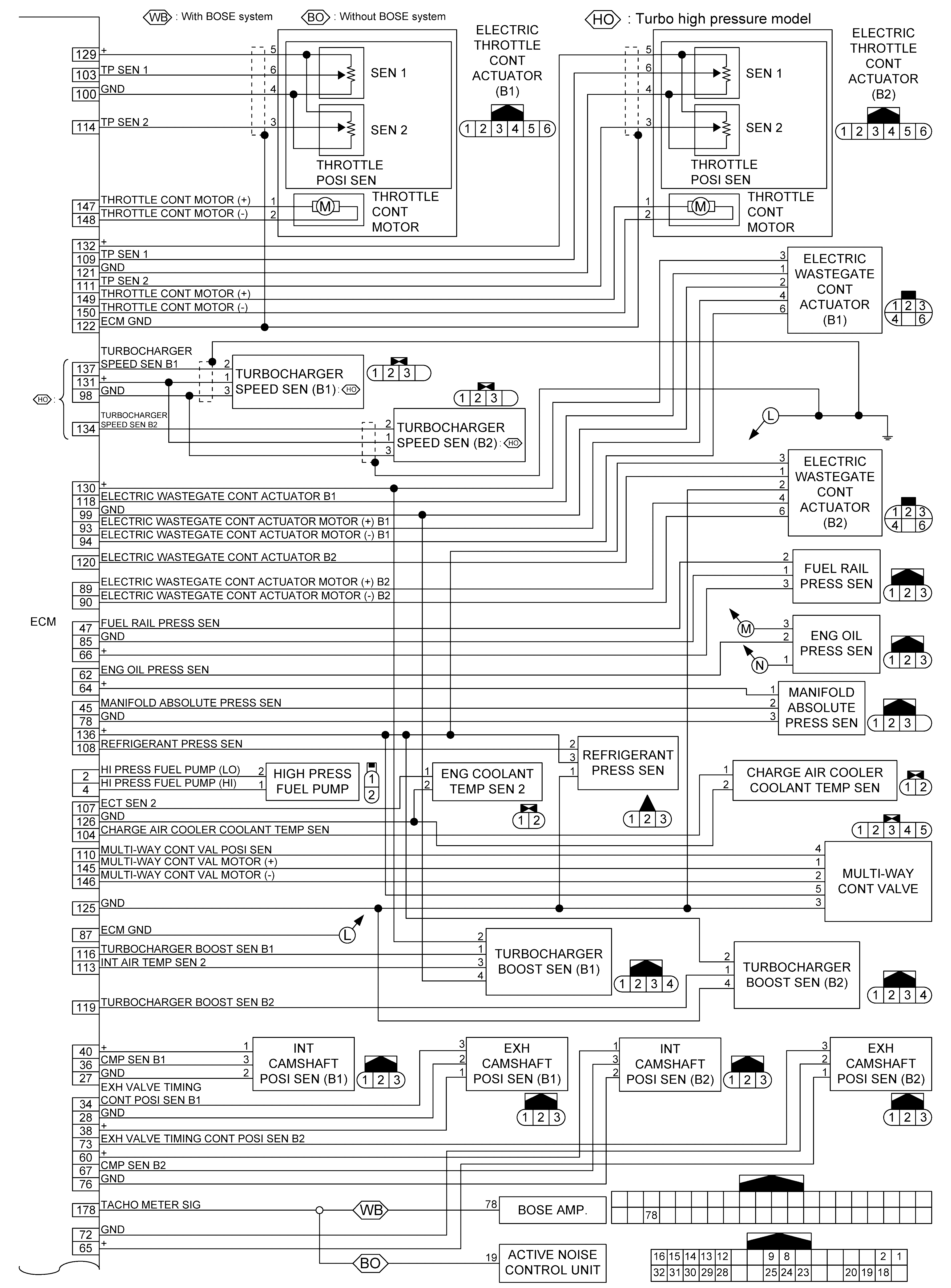

GNSDB39930Courtesy of NISSAN NORTH AMERICA, INC.

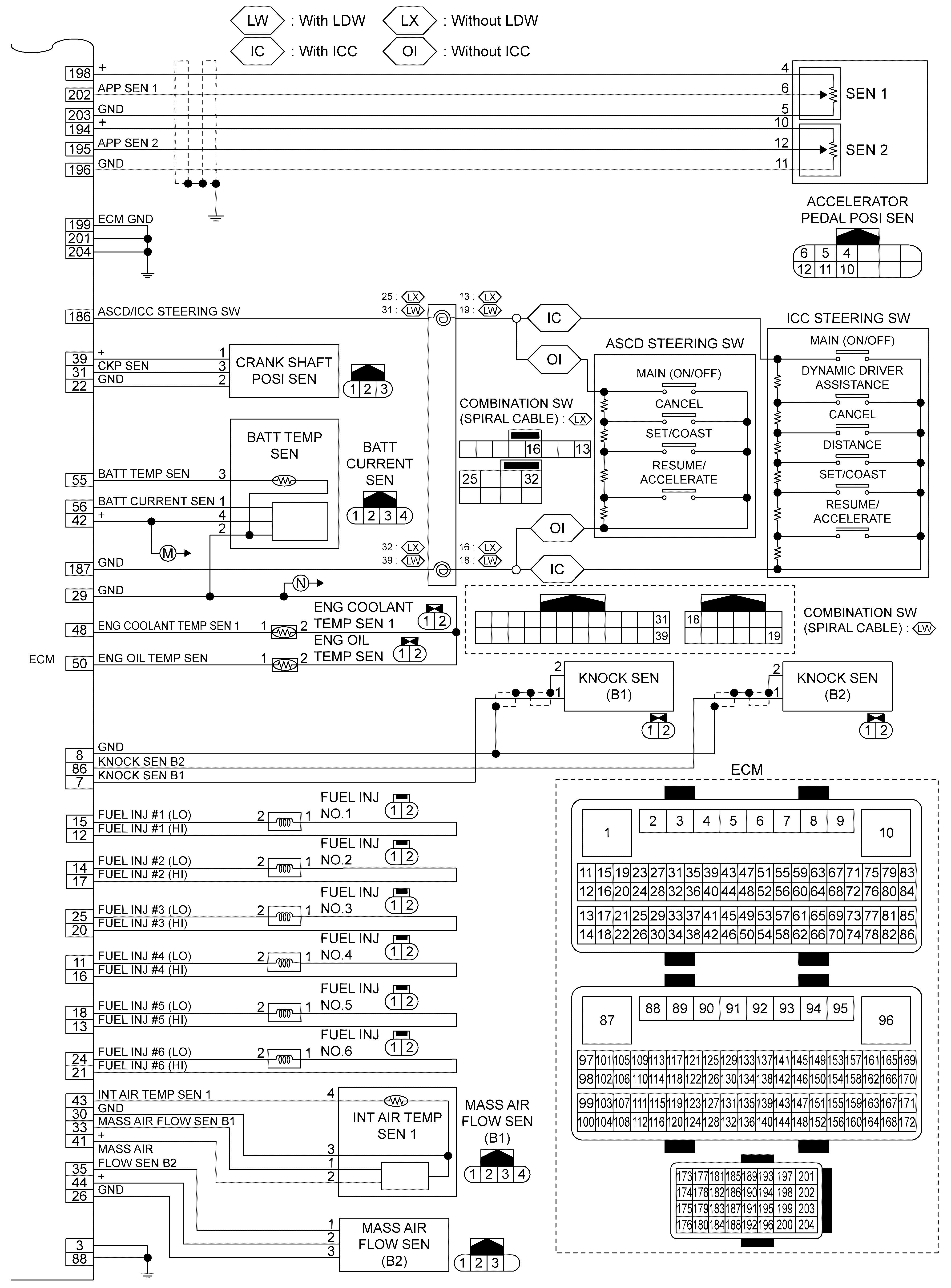

GNSDB39408Courtesy of NISSAN NORTH AMERICA, INC.
