Removal And Installation
›
Av Control Unit
›

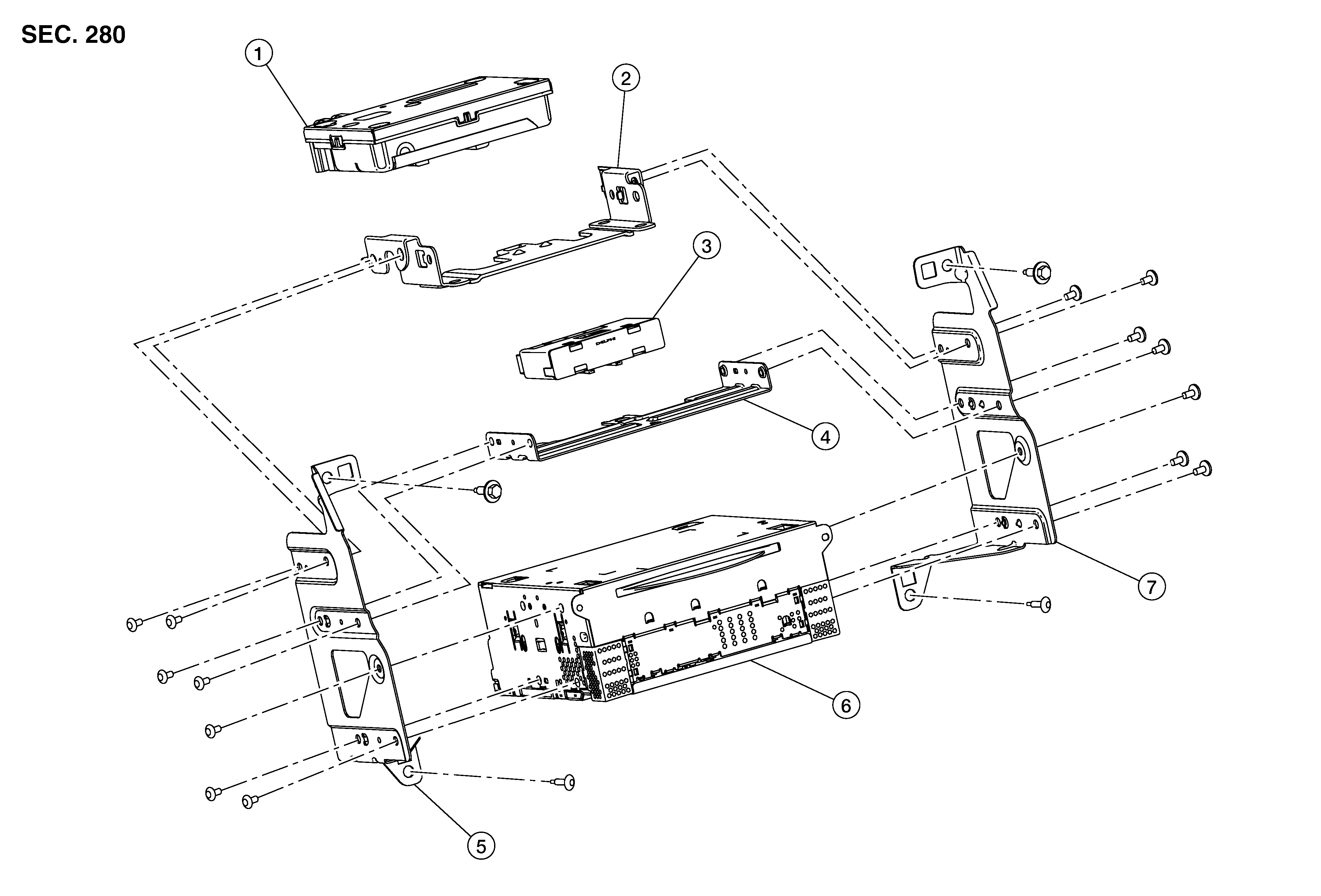

Exploded View
Exploded View
Courtesy of NISSAN
1.
TCU
2.
TCU bracket
3.
Front Auxiliary Input Jacks control unit
4.
Front Auxiliary Input Jacks control unit bracket
5.
Control unit bracket (LH)
6.
AV control unit
7.
Control unit bracket (RH)
