System Description

The steering operation condition by the driver and the information from multiple sensors are computed by the chassis control module, and a command is transmitted to the TCM.
Based on the command from the chassis control module, TCM shifts the gear ratio of the transaxle to the low side and applies the engine brake.
When the turn OFF the VDC function, active engine brake function is also turned OFF.
When the active engine brake (cornering control) function operates, operation display can be checked on the information display in the combination meter.
When the PERSONAL mode is selected, the active engine brake can be switched ON/OFF through the "Infiniti Drive Mode Selector" on the integral switch.
When a malfunction occurs in active engine brake control function, the master warning lamp illuminates and the information display in the combination meter informs the driver.

NOTE:

Active engine brake function may not be effective in all driving environments (traction conditions, etc.).
When active engine brake function operates, the needle of the tachometer will rise up, you may hear an engine noise and sense slight deceleration. These are not symptoms of malfunctions and indicate normal operating conditions.

CORNERING CONTROL

For the purpose of reducing the operation of switching to depress the brake pedal during cornering, the operation information of the driver is computed by the chassis control module and a command is transmitted to TCM.
Based on the command from the chassis control module, TCM shifts the gear ratio of the transaxle to the low side and applies the engine brake.

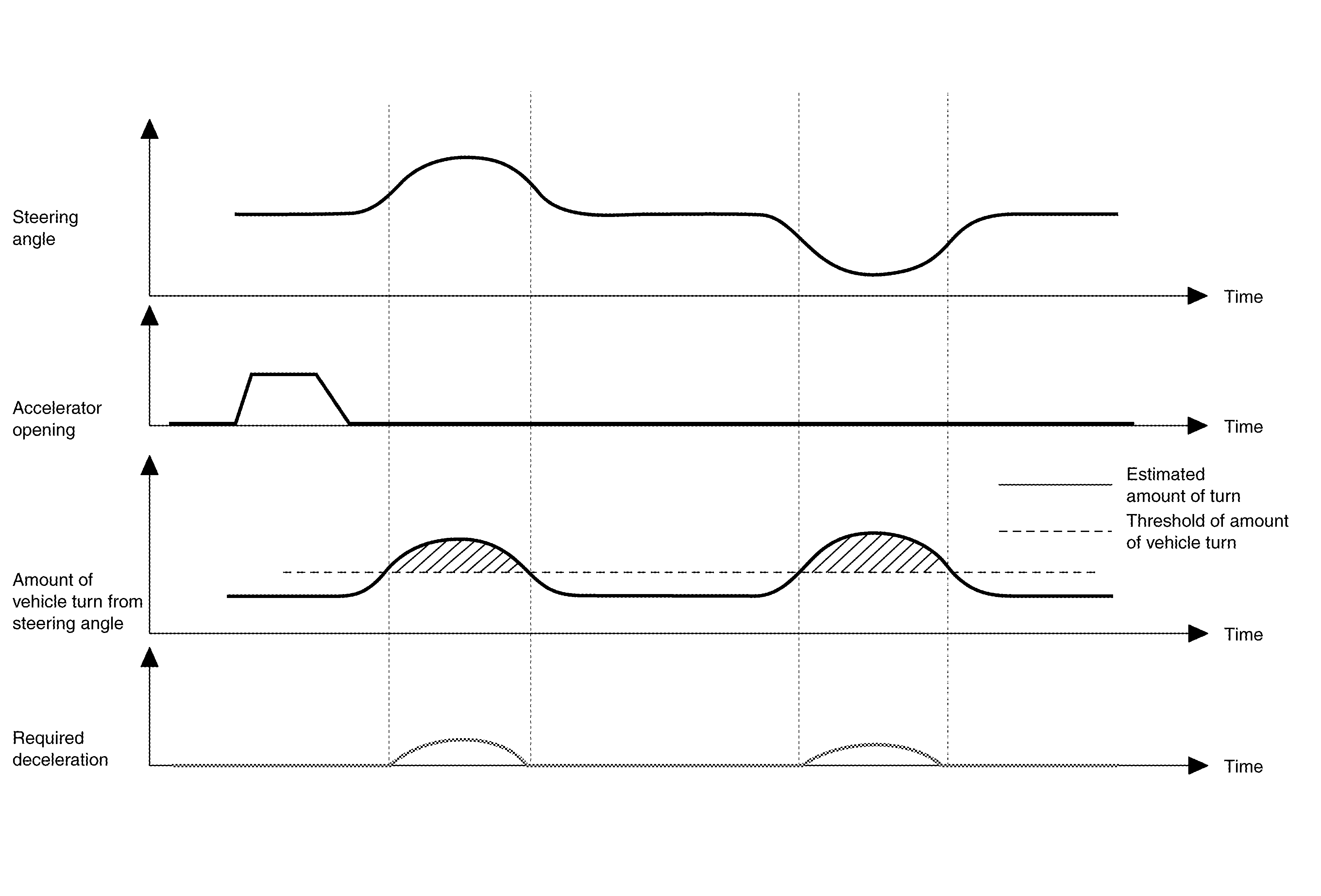

Courtesy of NISSAN

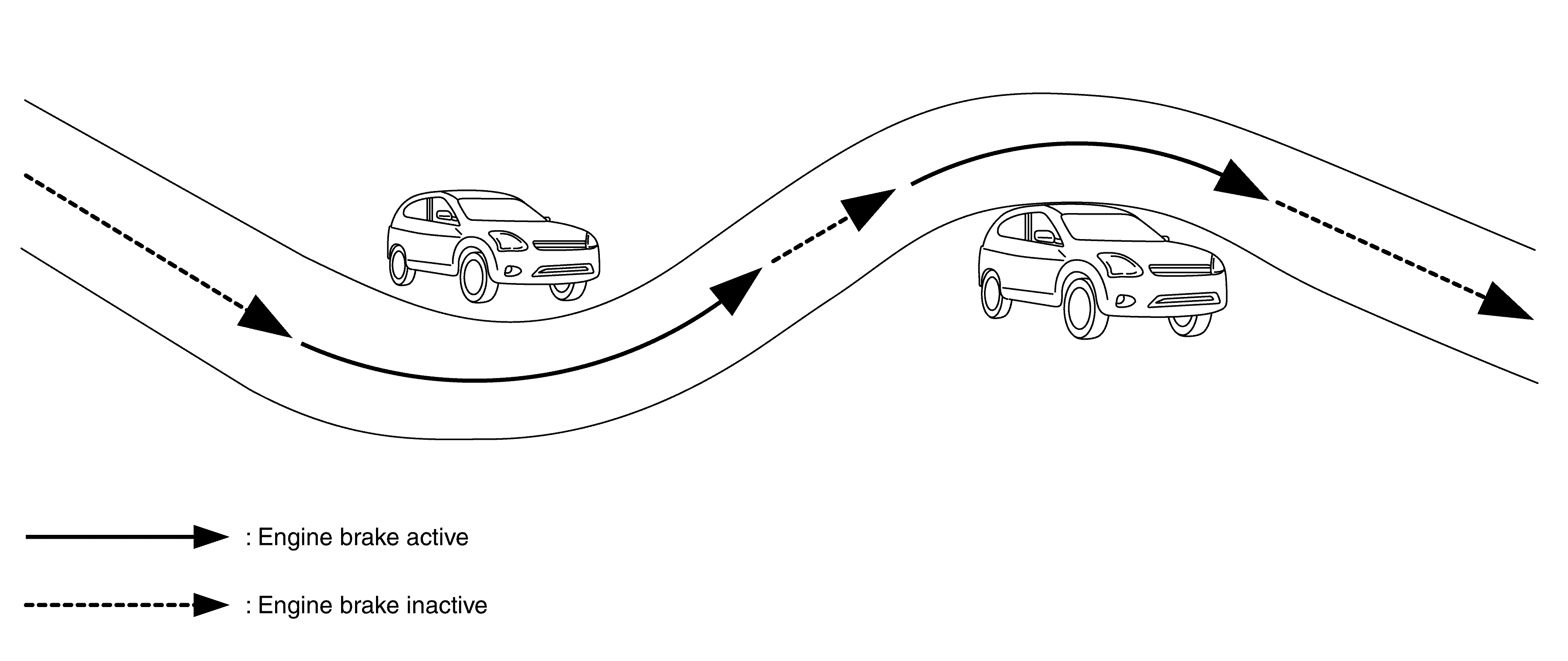

- The transaxle is controlled according to the steering operation of the driver, as well as the accelerator pedal condition and cornering condition of the vehicle.

  Courtesy of NISSAN

BRAKING CONTROL

For the purpose of improving the feeling of effectiveness of the brake when decelerating, the brake operation amount of the driver is computed by the chassis control module and a command is transmitted to TCM.
Based on the command from the chassis control module, TCM shifts the gear ratio of the transaxle to the low side and applies the engine brake.

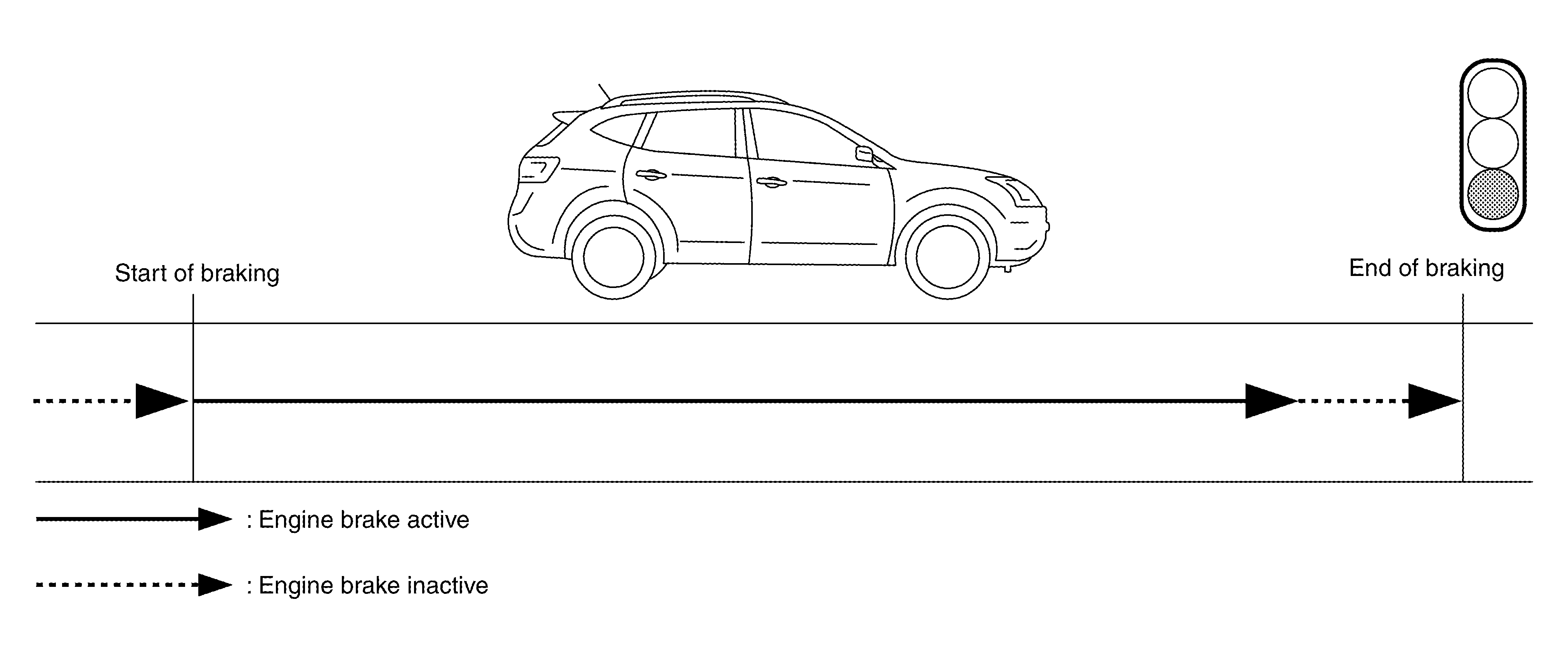

Courtesy of NISSAN

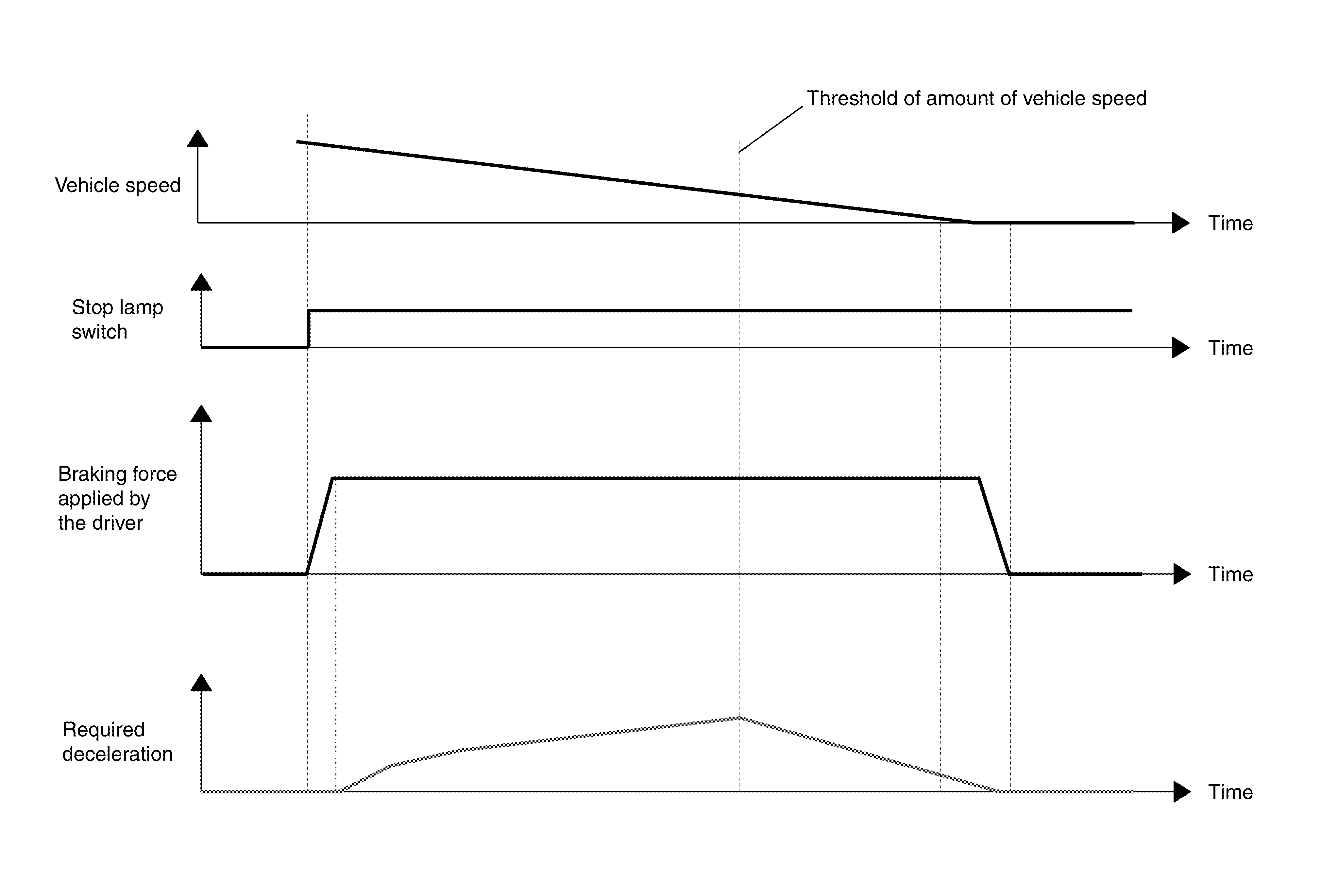

- The transaxle is controlled according to the brake condition.

  Courtesy of NISSAN

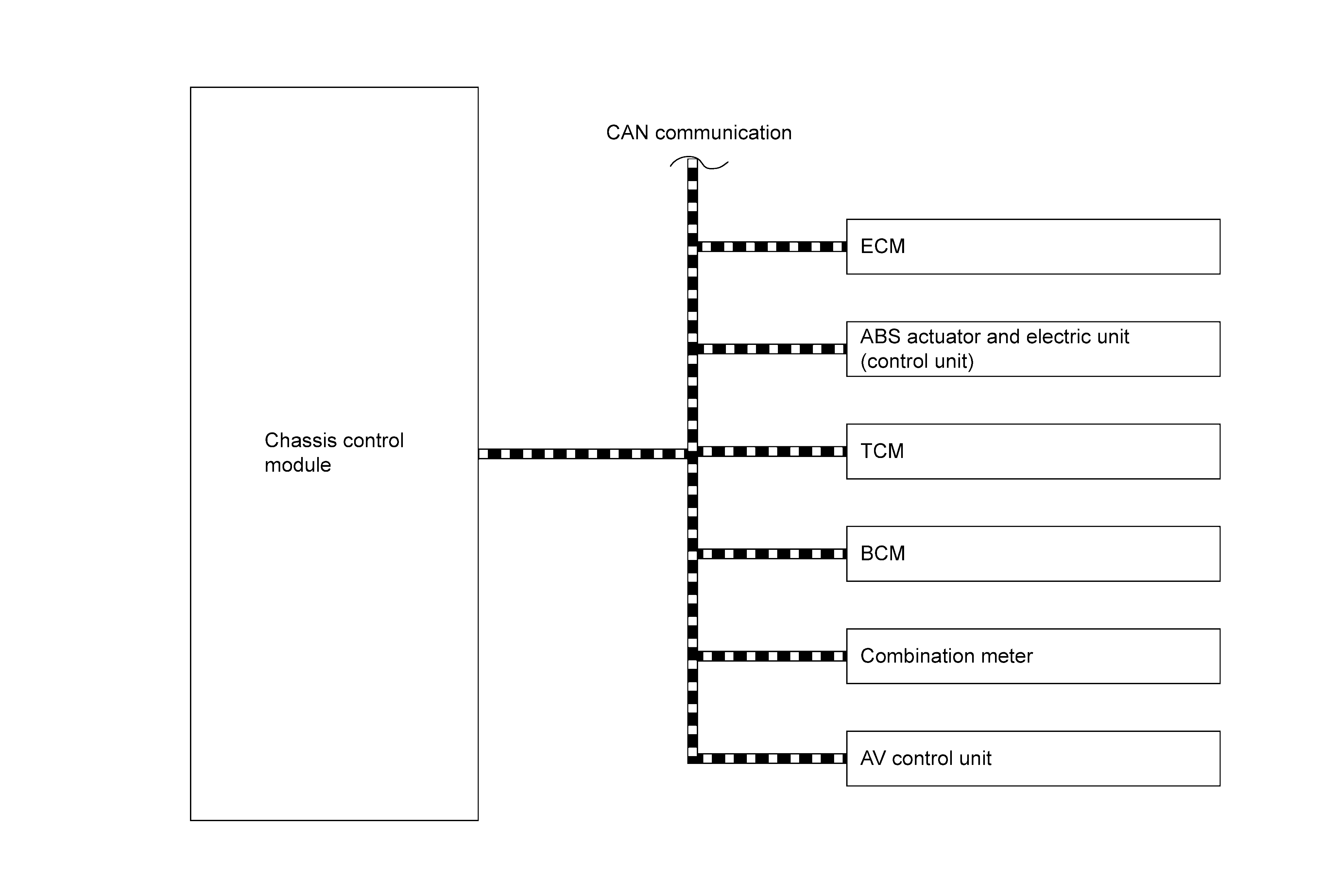

SYSTEM DIAGRAM

Courtesy of NISSAN

INPUT SIGNAL AND OUTPUT SIGNAL

Major signal transmission between each unit via communication lines is shown in the following table.

Component parts	Signal description
ECM	Mainly transmits the following signals to chassis control module via CAN communication. Accelerator pedal position signal
ABS actuator and electric unit (control unit)	Mainly transmits the following signals to chassis control module via CAN communication. Front LH wheel speed signal Front RH wheel speed signal Rear LH wheel speed signal Rear RH wheel speed signal TCS operation signal VDC operation signal Side G sensor signal Brake fluid pressure signal Steering angle sensor signal ABS operation signal VDC accept permission signal
BCM	Mainly transmits the following signals to chassis control module via CAN communication. Stop lamp switch signal
TCM	Mainly transmits the following signals to chassis control module via CAN communication. CVT accept permission signal Mainly transmits the following signals from chassis control module via CAN communication. Active engine brake signal
Combination meter	Mainly transmits the following signals to chassis control module via CAN communication. Meter display signal
AV control unit	Mainly transmits the following signals to chassis control module via CAN communication. System selection signal
Chassis control module	Chassis Control Module
