Exploded View

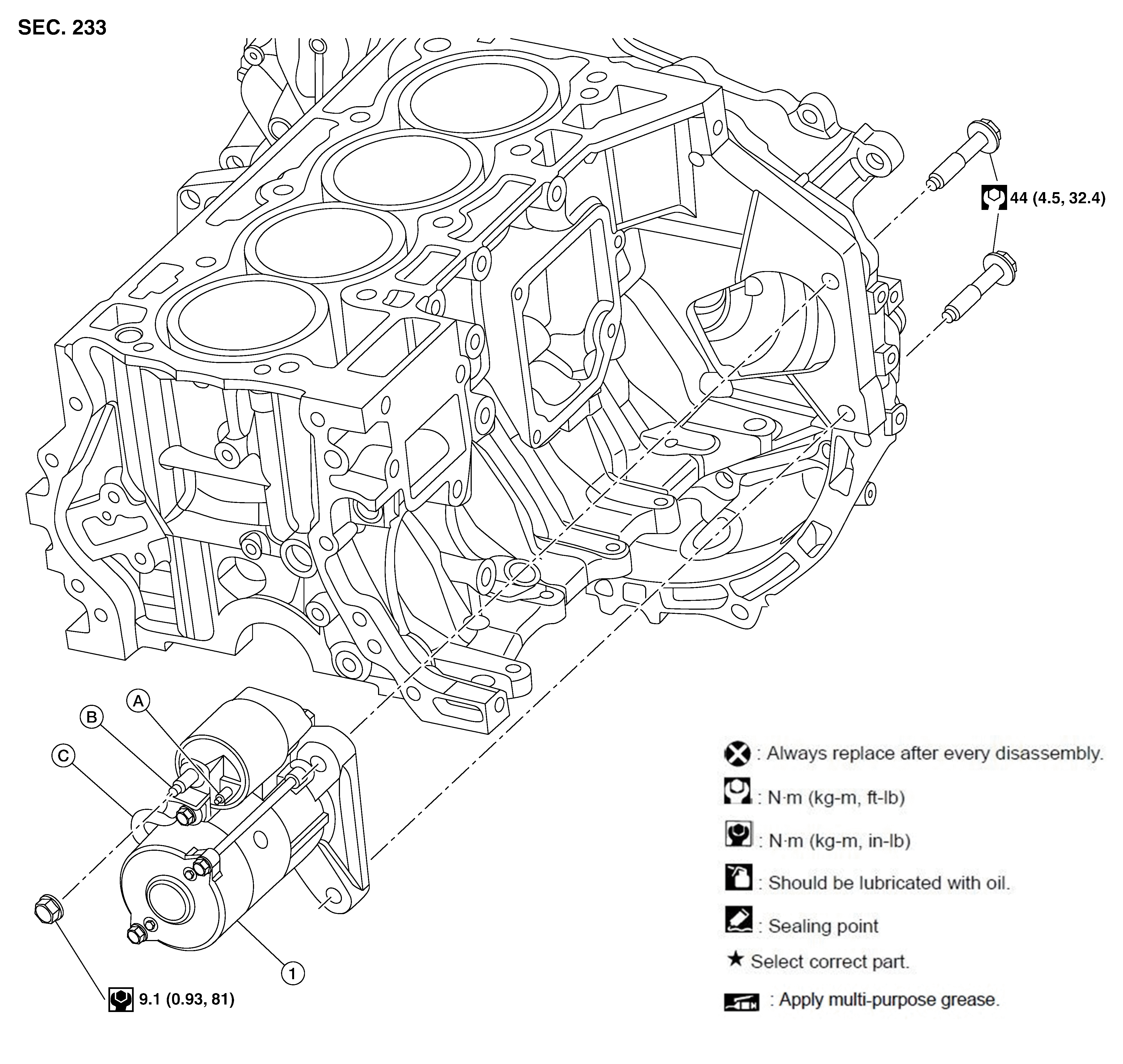

Fig 1: Starter Motor With Torque Specifications
GNSDB59317Courtesy of NISSAN
1. Starter Assembly A. "S" Connector B. "B" Terminal
C. Ground Harness
