Exploded View

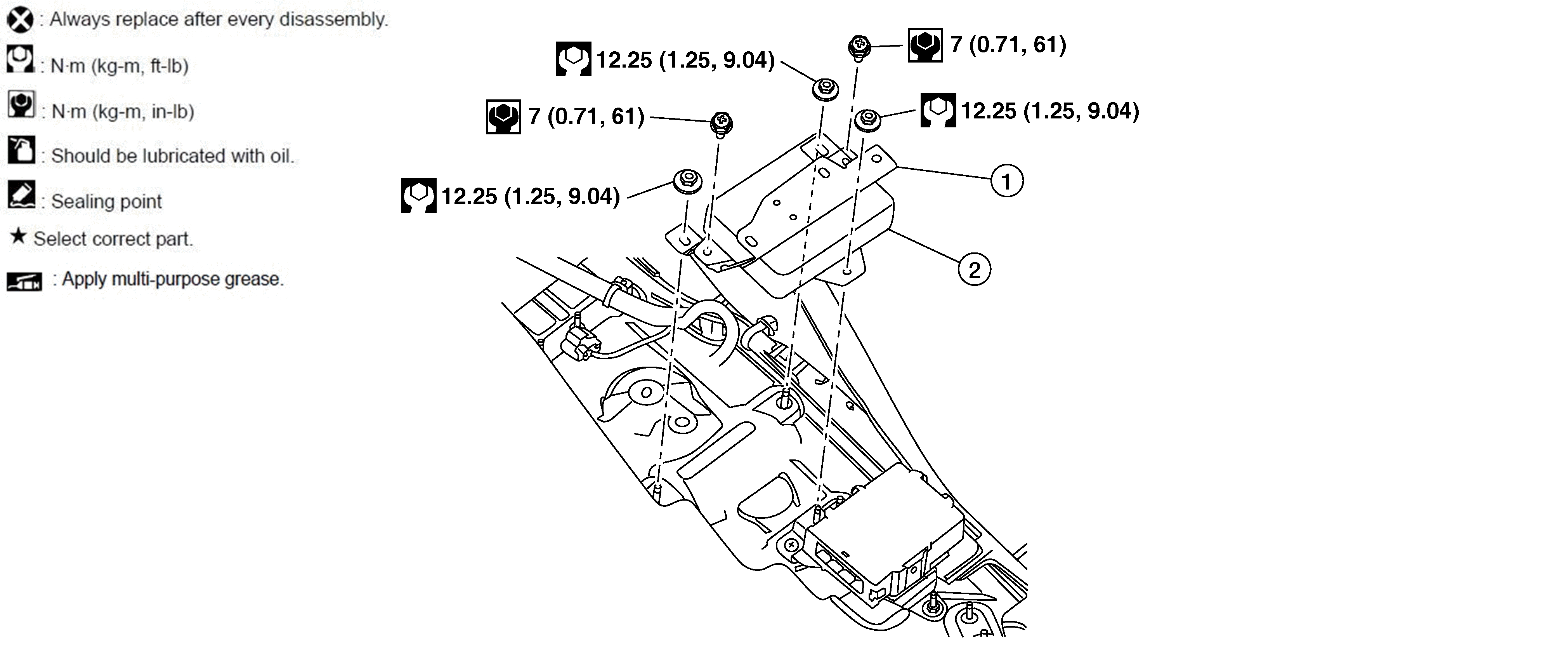

Fig 1: Active Torque Rod Control Module With Torque Specifications
GNSDB59228Courtesy of NISSAN
1. Bracket 2. Active torque rod control module
