System Description

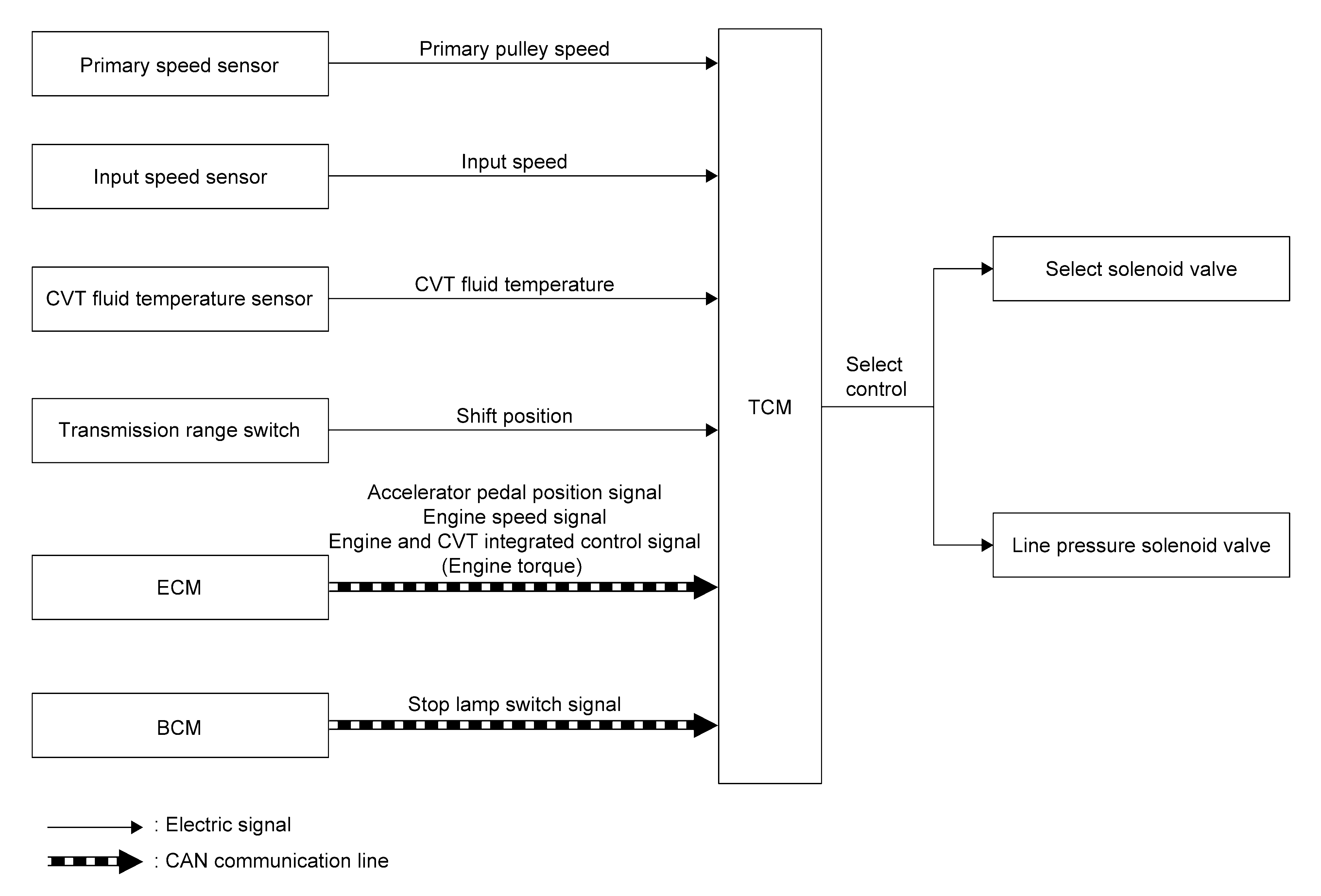

SYSTEM DIAGRAM

Courtesy of NISSAN

DESCRIPTION

Based on accelerator pedal angle, engine speed, primary pulley speed, and the input speed, the optimum operating pressure is set to reduce impact of a shift operation while shifting from "N" ("P") to "D" ("R") position.
