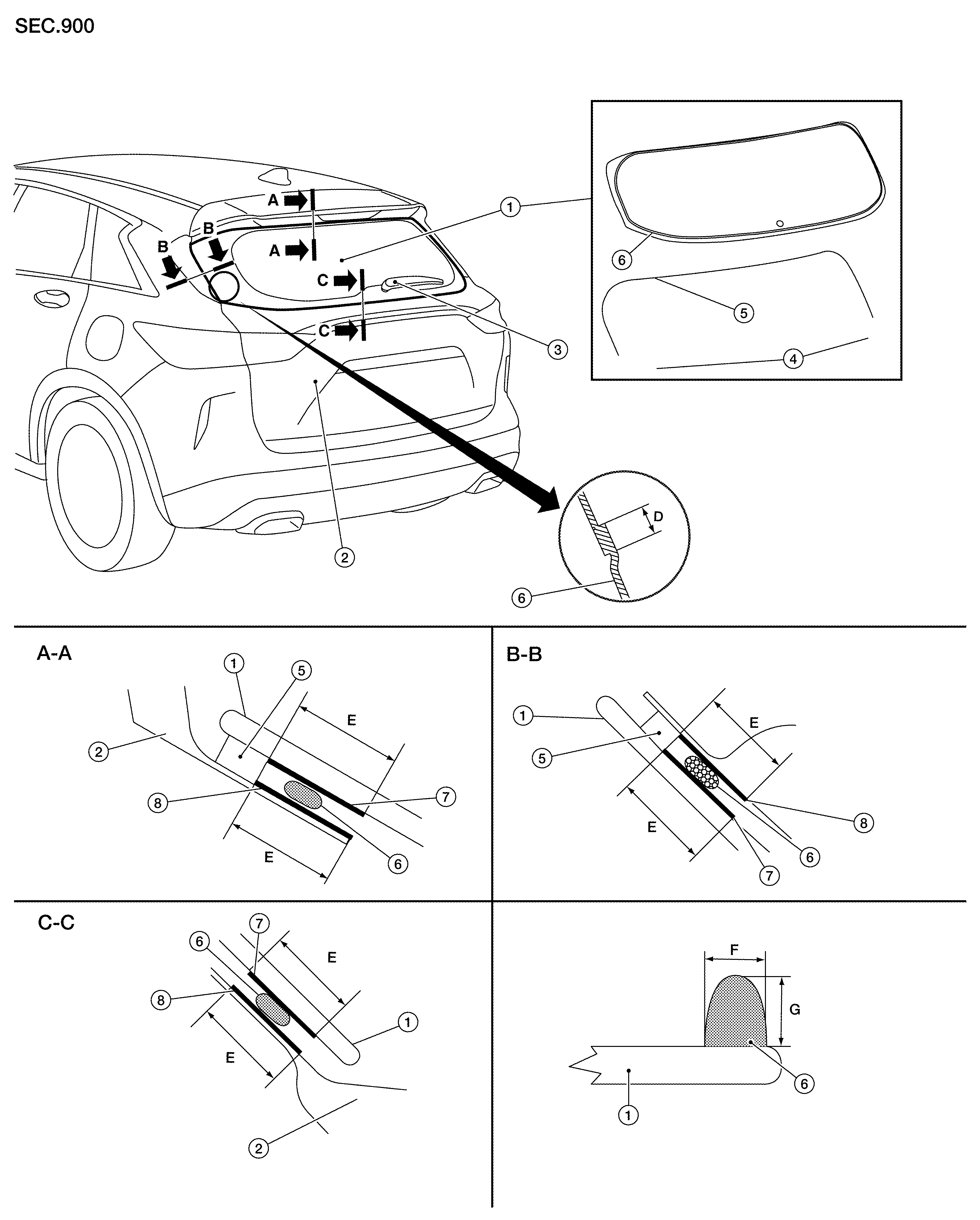

Exploded View

GNSDB58367

Courtesy of NISSAN

1.	Back door glass	2.	Back door assembly	3.	Rear wiper arm
4.	Spacer	5.	Dam sealant upper	6.	Adhesive
7.	Glass primer	8.	Body primer	D.	30 mm (1.18 in)
E	15 mm (0.59 in)	F.	7 + 2, - 0 mm (0.28 + 0.08, - 0 in)	G.	12 + 2, - 0 mm (0.47 + 0.08, - 0 in)
