Engine Control System (1 Of 2)
›
Wiring Diagram
›
Engine Control System
›
Wiring Diagram

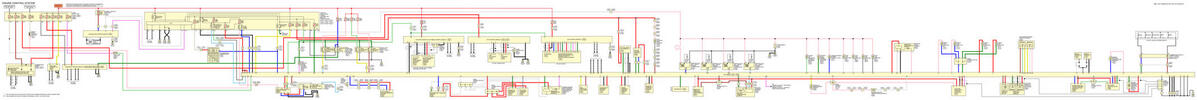

Engine Control System: Wiring Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
