Exploded View

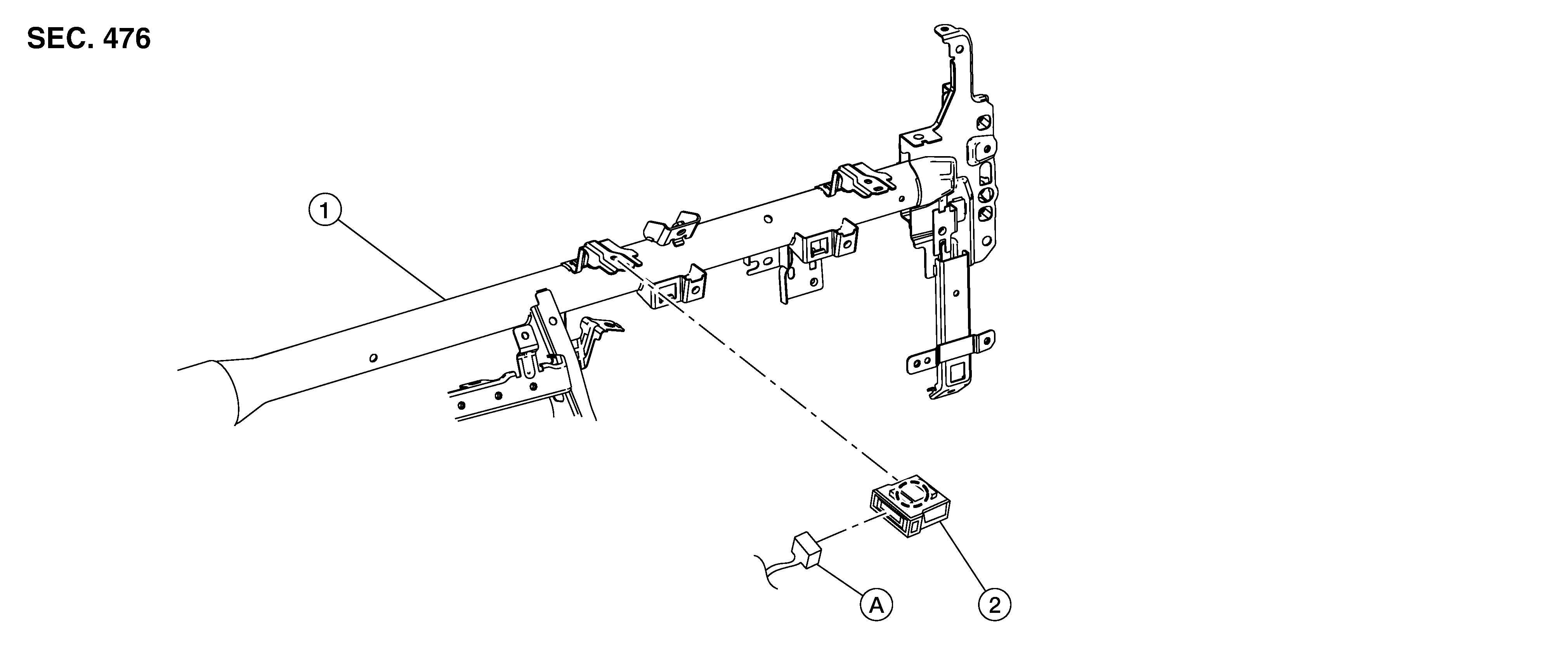

Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Steering member
2.
Chassis control module
A.
Chassis control module harness connector
