Its Switch Assembly (Warning System Switch)
›

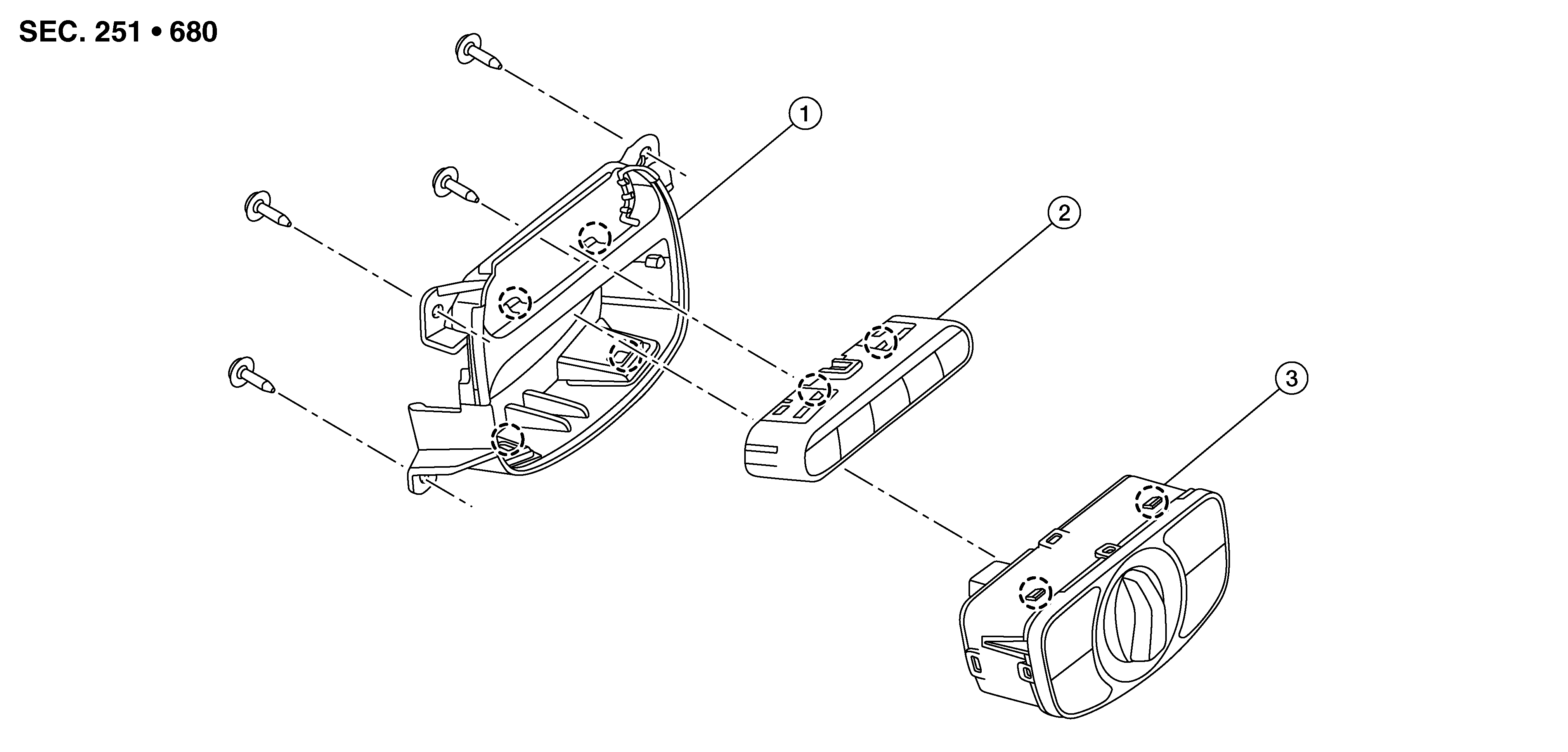

Exploded View
Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Switch carrier
2.
ITS switch assembly
3.
Master light switch
Pawl
Courtesy of NISSAN NORTH AMERICA, INC.
