Function Description
Displays the road conditions as identified by the front camera unit on the information display, and alerts the driver. Identifies the road sign information.

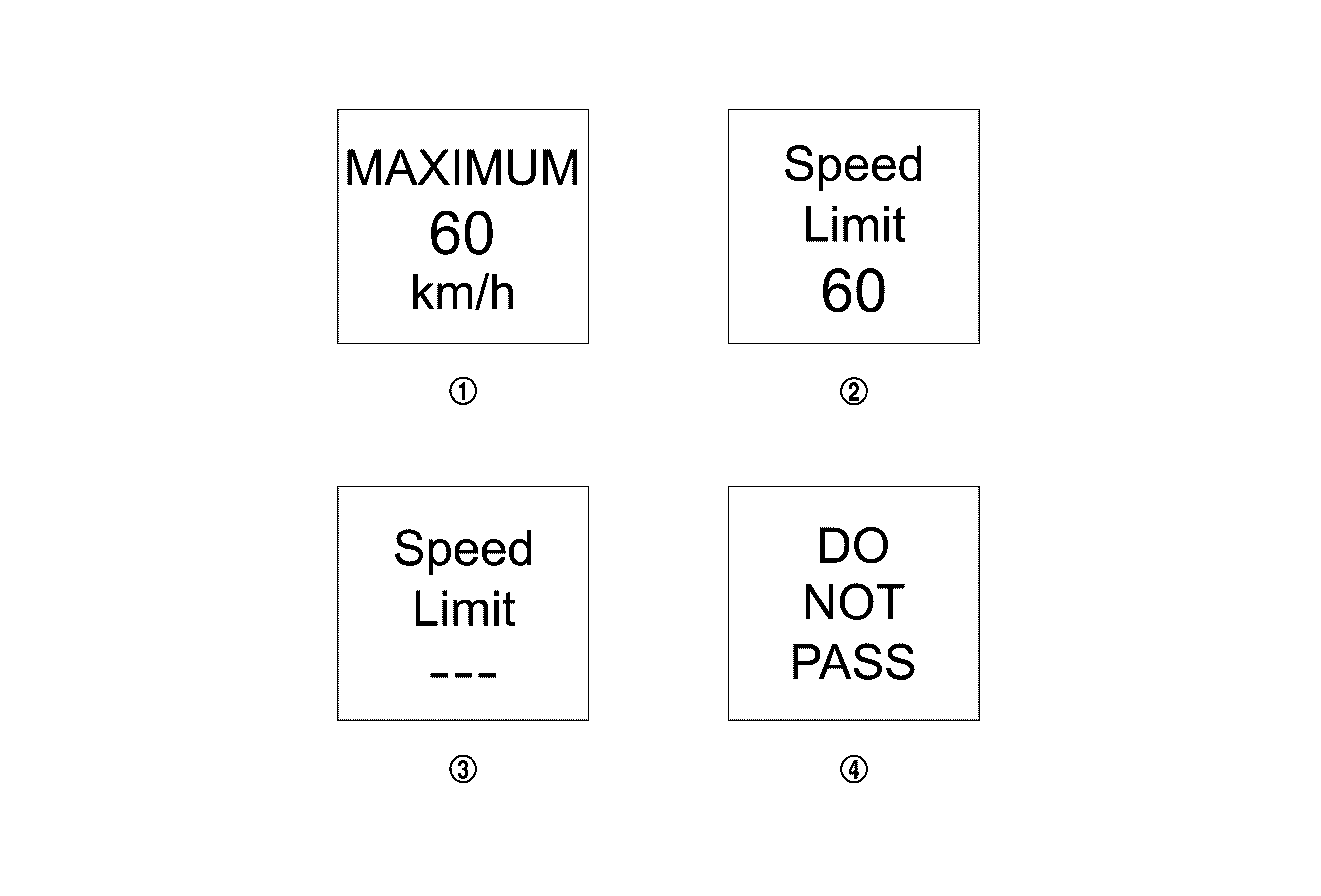

The front camera unit detects road signs as described below and displays them on the information display.
|
|
Speed sign detected *1 |
|
Speed sign detected *2 |
|
Speed sign detected (no speed limit detected) |
|
|
"Do not pass" sign detected |
||||
*1: For Canada
*2: For USA

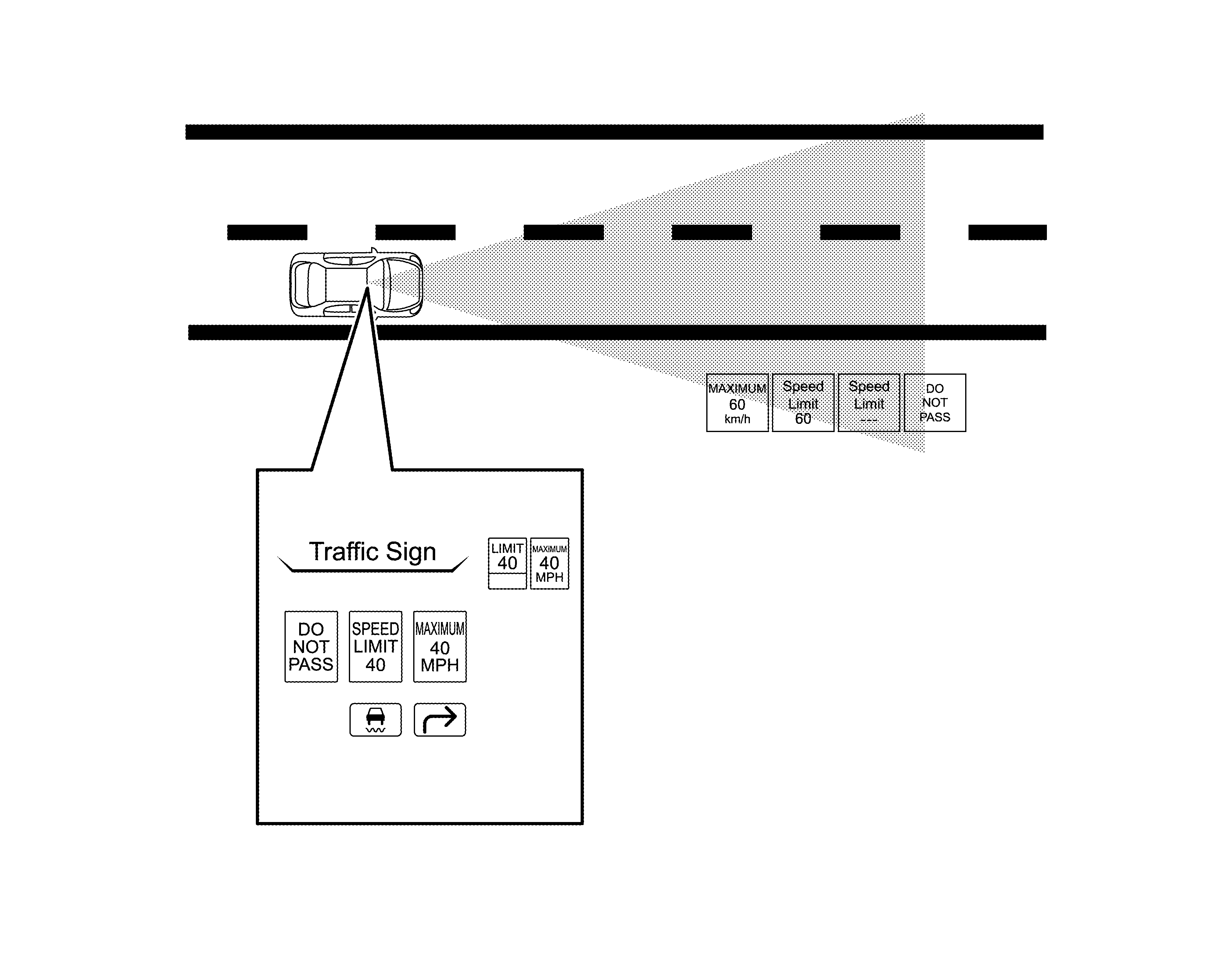

EXAMPLE
