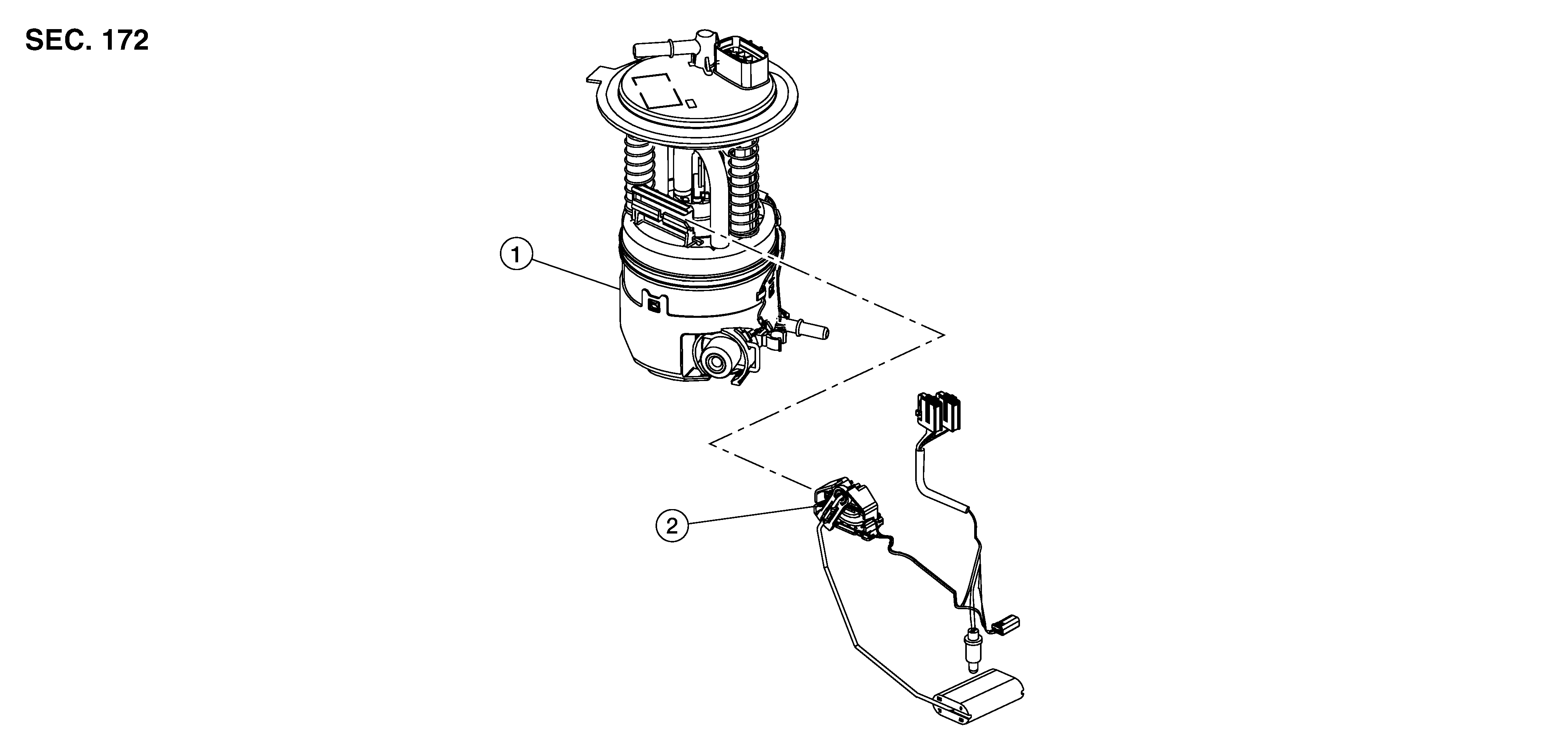

Exploded View

GNSDB38909Courtesy of NISSAN NORTH AMERICA, INC.

1.

Fuel filter and fuel pump assembly

2.

Fuel level sensor
