Exploded View
Exploded View

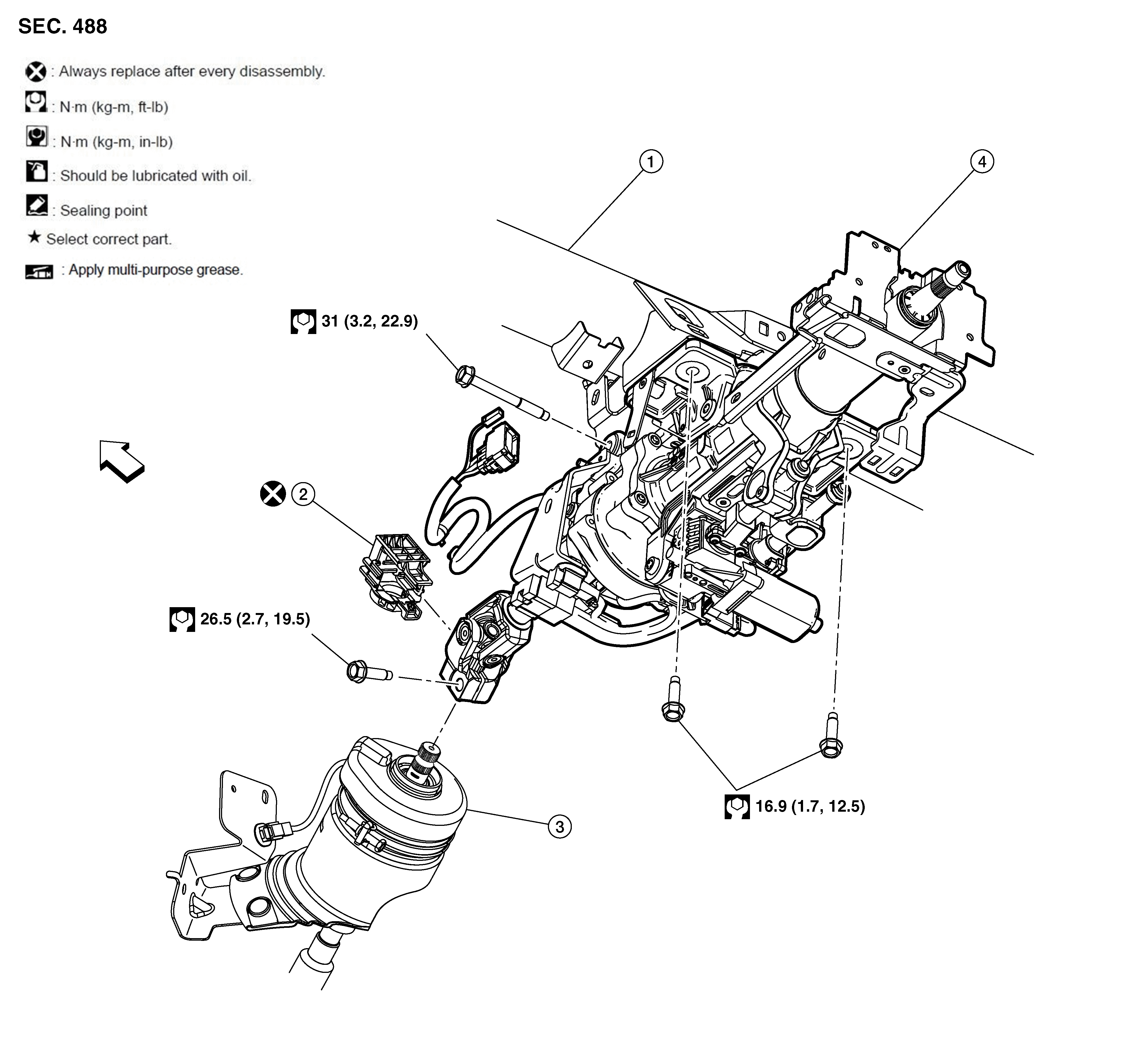

Fig 1: Steering Column With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Steering member
2.
Collar
3.
Steering clutch
4.
Steering column
Front
Courtesy of NISSAN NORTH AMERICA, INC.
