Exploded View

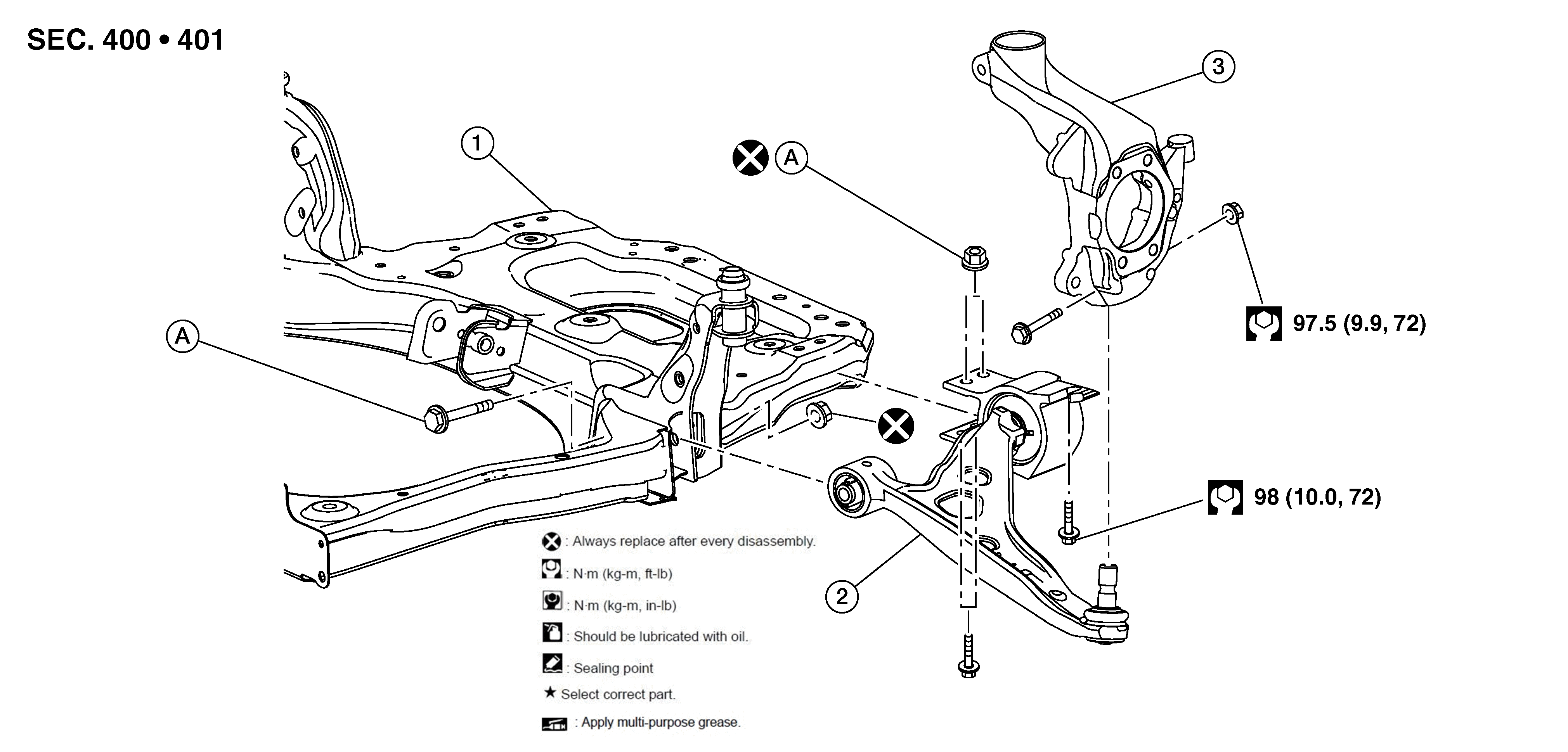

Fig 1: Transverse Link With Torque Specifications

GNSDB38083

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front suspension member	2.	Transverse link	3.	Steering knuckle
A.	Refer to Removal and Installation .
