Exploded View

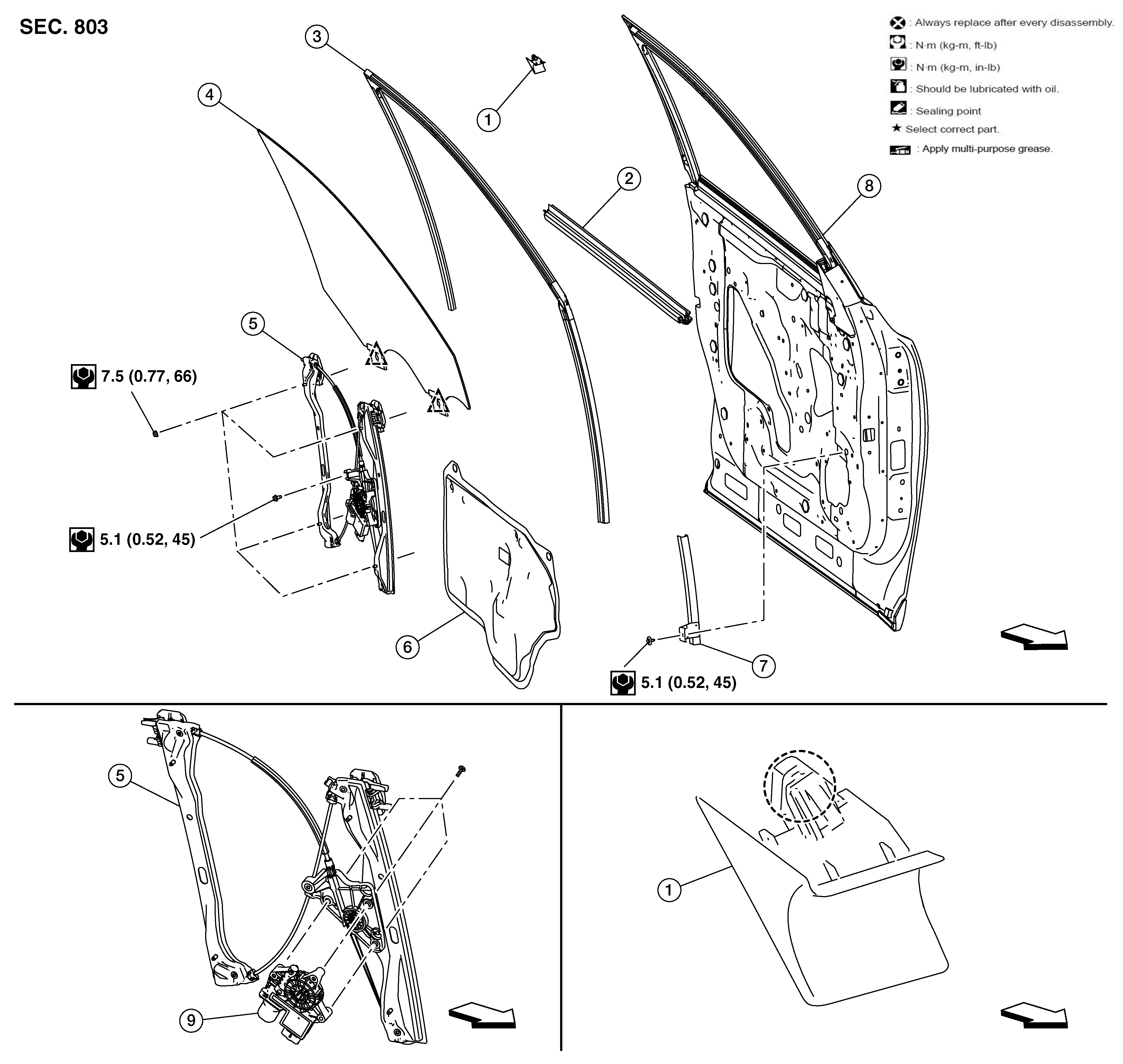

Fig 1: Front Door Regulator With Torque Specifications

GNSDB57705

Courtesy of NISSAN

1.	Front door sash cover inner	2.	Door inside seal	3.	Door glass rubber run
4.	Front door glass	5.	Front door regulator	6.	Vapor barrier
7.	Door glass front run	8.	Door panel	9.	Front power window motor
	Pawl		Clip	:	Front
