Exploded View

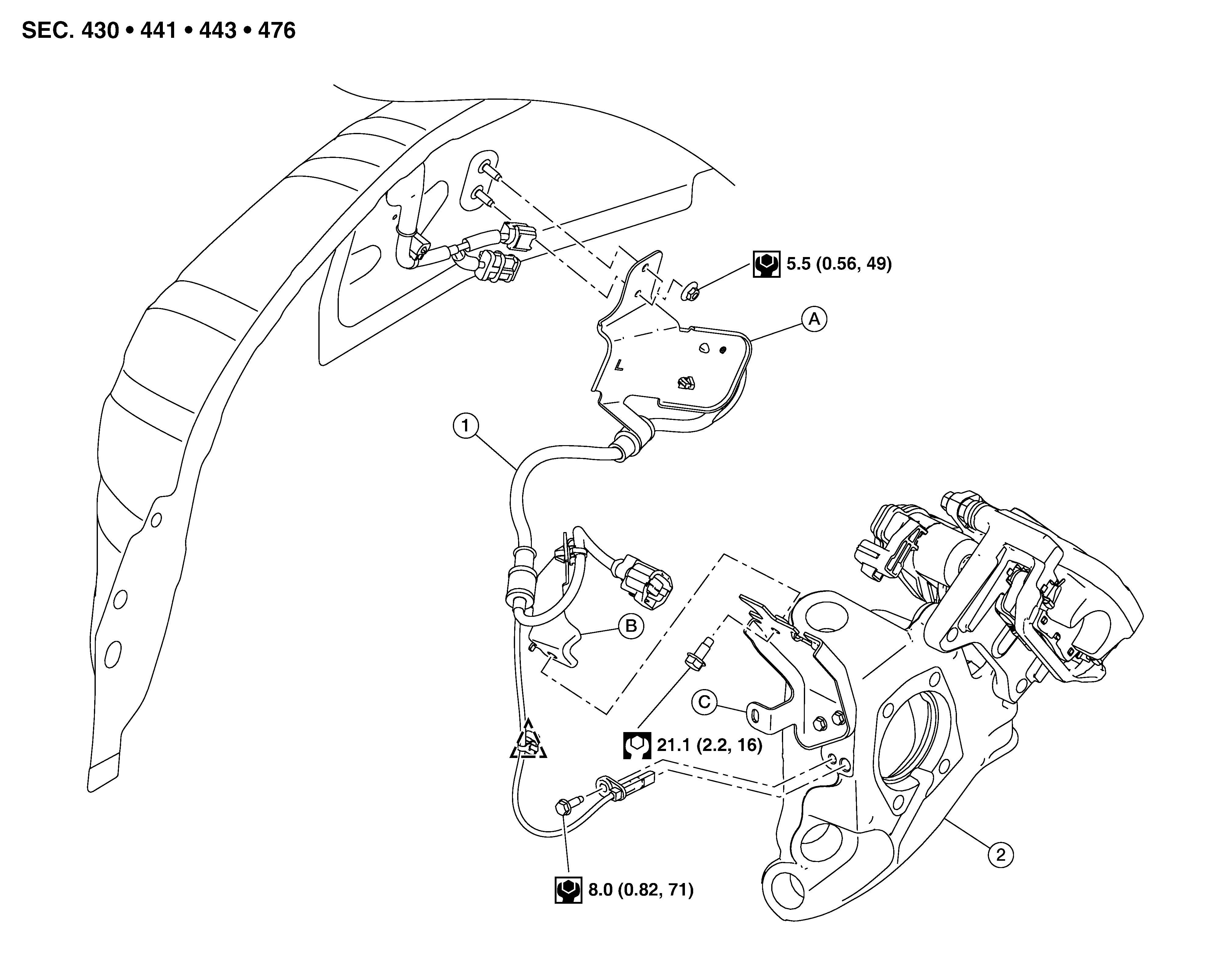

GNSDB45042Courtesy of NISSAN
1. Rear wheel sensor 2. Rear knuckle A. Upper bracket
B. Middle bracket C. Lower bracket SYMBOL Clip
