Exploded View

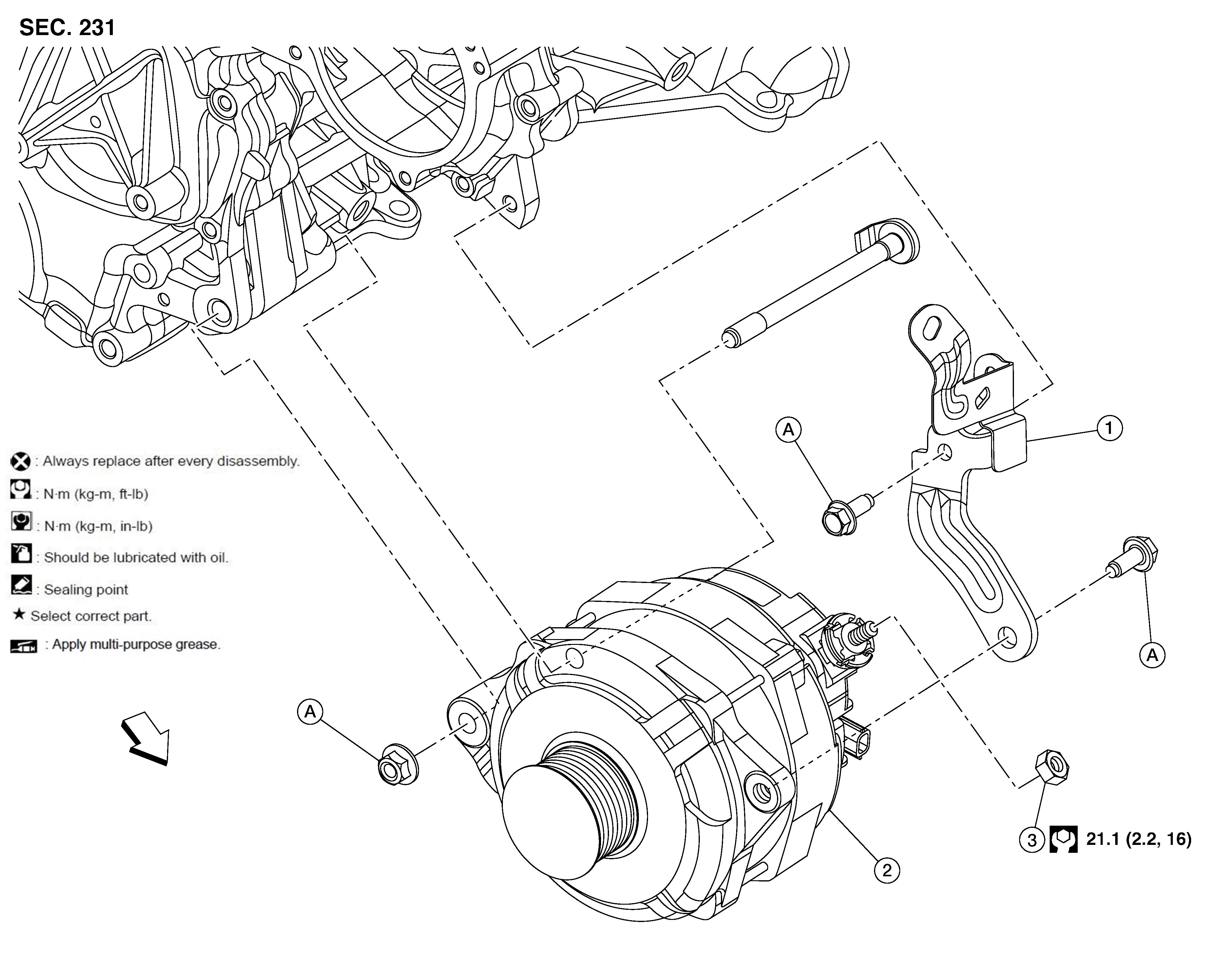

Fig 1: Generator With Torque Specifications
GNSDB45432SYMBOLCourtesy of NISSAN
1. Generator bracket 2. Generator 3. "B" terminal nut
A. Refer to Installation . SYMBOL Front
