Exploded View

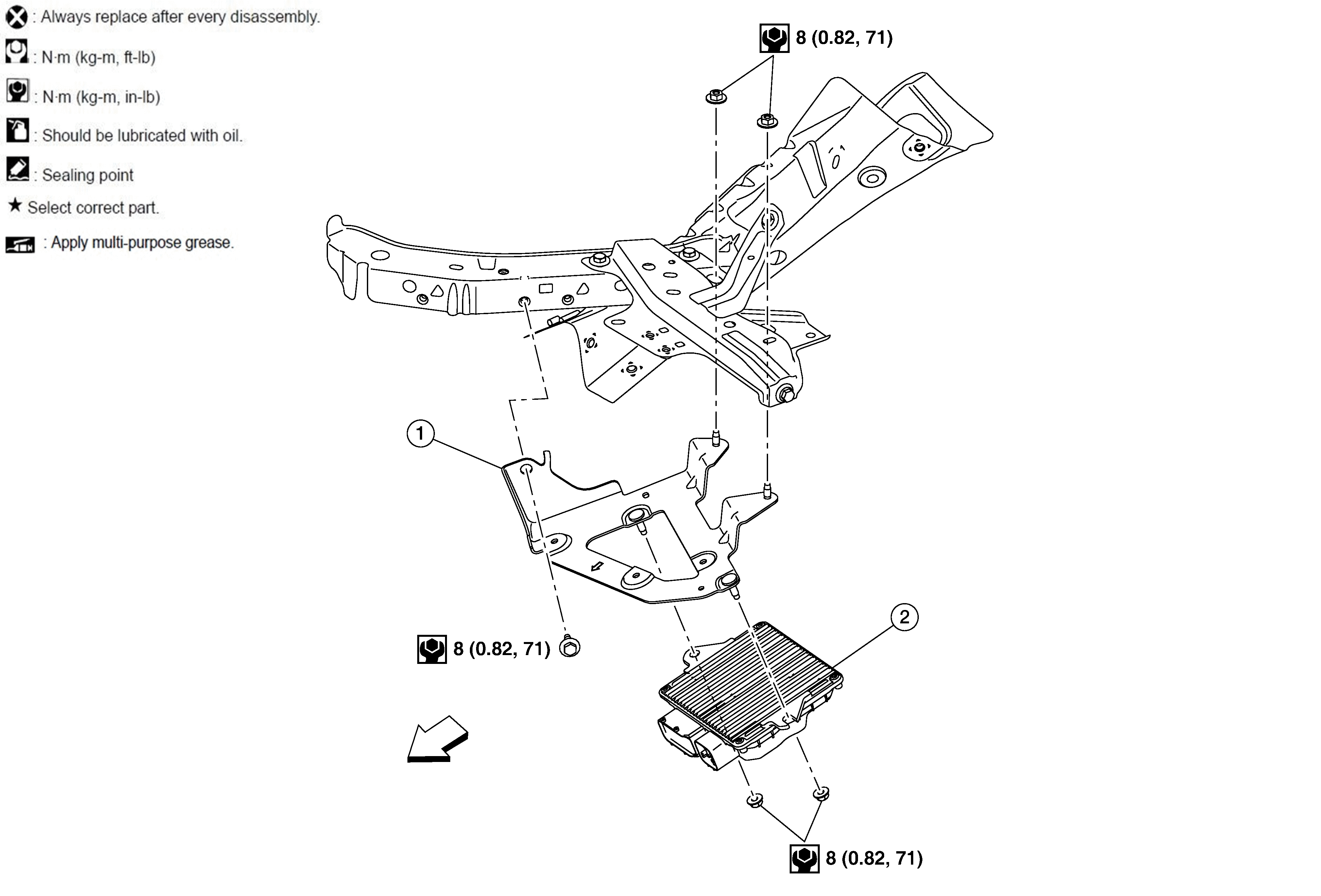

Fig 1: Electric Intake Valve Timing Control Module With Torque Specifications
GNSDB45605Courtesy of NISSAN
1. Electric intake valve timing control module bracket 2. Electric intake valve timing control module SYMBOL Front
