Exploded View

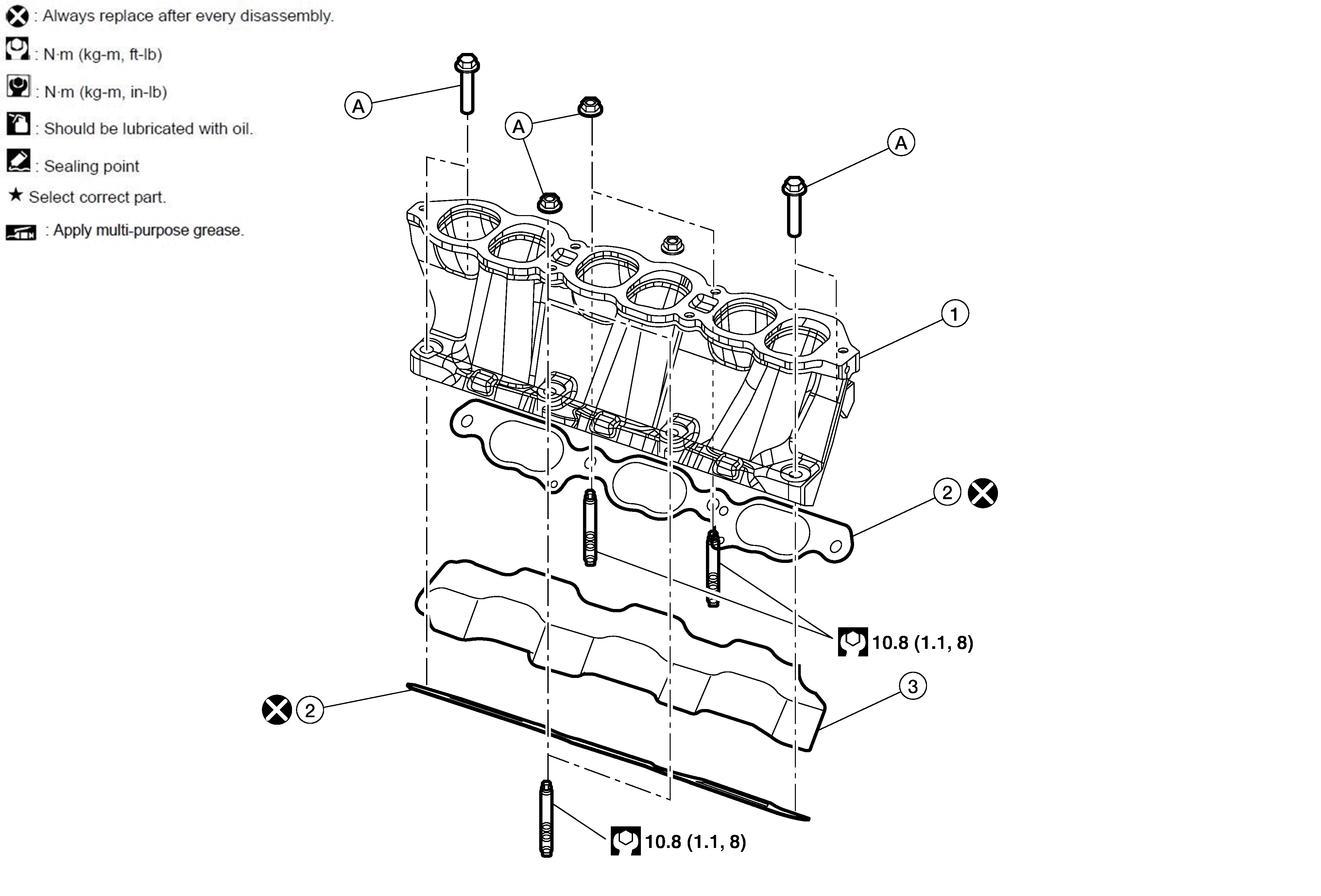

Fig 1: Intake Manifold With Torque Specifications
GNSDB45705Courtesy of NISSAN
1. Intake manifold 2. Intake manifold gasket 3. Insulator
A. Refer to INSTALLATION .
