Exploded View

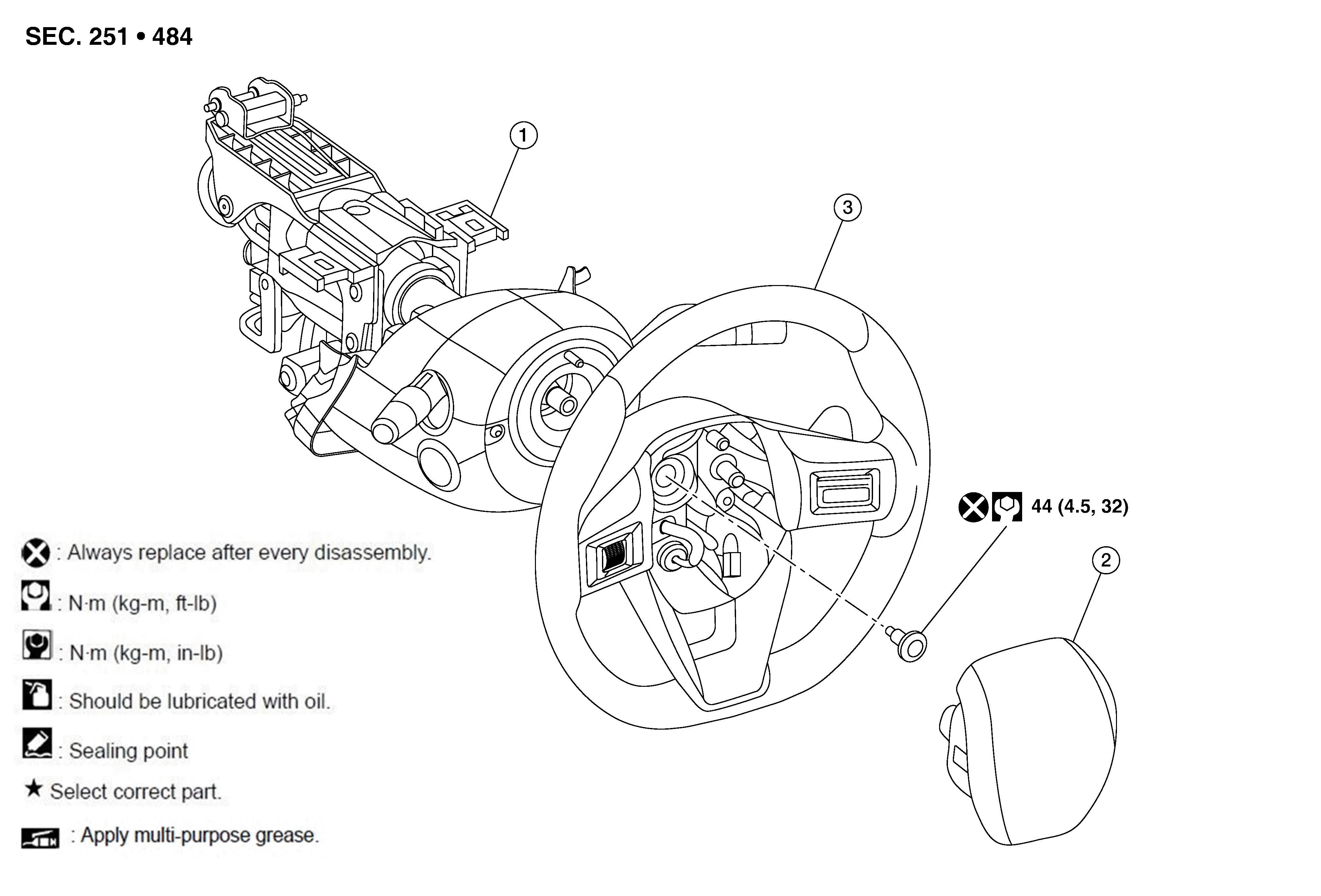

Fig 1: Steering Wheel With Torque Specifications
GNSDB57590Courtesy of NISSAN
1. Steering column 2. Driver air bag module 3. Steering wheel
