Component Location

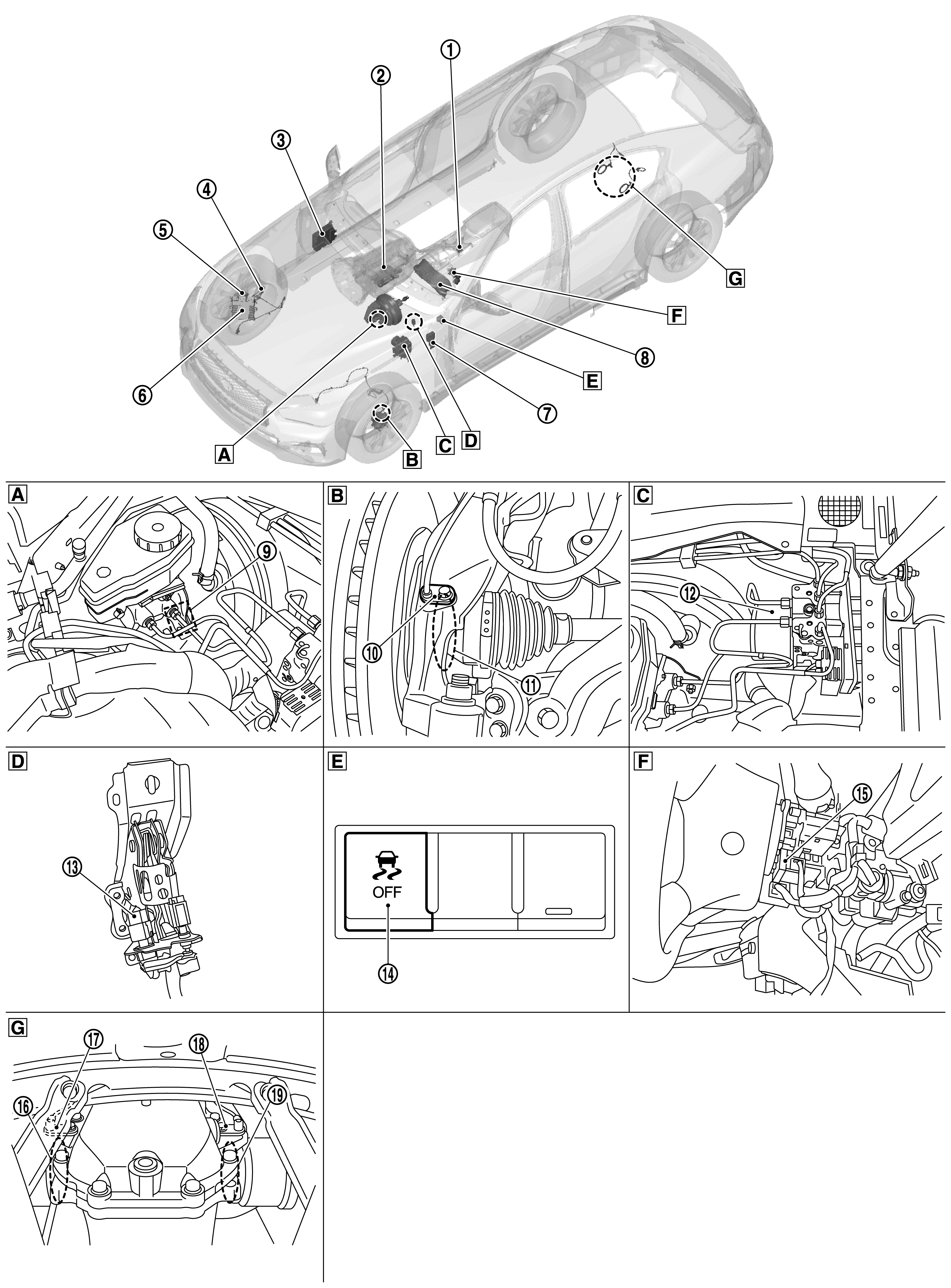

GNSDB148923Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Brake booster SYMBOL Steering knuckle SYMBOL Inside of brake master cylinder cover
SYMBOL Brake pedal SYMBOL Instrument driver lower panel SYMBOL Back of spiral cable assembly
SYMBOL Rear final drive
No. Component parts Function
SYMBOL Drive mode select switch Mainly transmits the following signals to chassis control module unit.
  • Drive mode signal

Refer to Component Location for detailed installation location.
SYMBOL TCM Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication.
  • Current gear position signal
  • Shift position signal

Refer to Component Location for detailed installation location.
SYMBOL Steering force control module* Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication.
  • Steering pinion angle signal
  • Direct Adaptive Steering malfunction signal

Refer to Component Location for detailed installation location.
SYMBOL Front RH wheel sensor Refer to Component Description .
SYMBOL Front RH sensor rotor Refer to Component Description .
SYMBOL ECM Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication.
  • Accelerator pedal position signal
  • Engine torque signal
  • Engine speed signal

Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN communication.
  • Engine torque request signal

Refer to Component Location for detailed installation location.
SYMBOL Chassis control module Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication.
  • Drive mode signal
  • Active trace control signal
  • Brake hold status signal
  • Brake hold request signal

Refer to Component Location for detailed installation location.
SYMBOL Combination meter Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication.
  • Brake fluid level switch signal
  • Parking brake switch signal

Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN communication.
  • ABS warning lamp signal
  • Brake warning lamp signal
  • VDC OFF indicator lamp signal
  • VDC warning lamp signal

Refer to Component Location for detailed installation location.
SYMBOL Vacuum sensor Refer to Component Description .
SYMBOL Front LH wheel sensor Refer to Component Description .
SYMBOL Front LH sensor rotor Refer to Component Description .
SYMBOL ABS actuator and electric unit (control unit) Refer to Component Description .
SYMBOL Stop lamp switch Refer to Component Description .
SYMBOL VDC OFF switch Refer to Component Description .
SYMBOL Steering angle sensor Refer to Component Description .
SYMBOL Rear LH sensor rotor Refer to Component Description .
SYMBOL Rear LH wheel sensor Refer to Component Description .
SYMBOL Rear RH wheel sensor Refer to Component Description .
SYMBOL Rear RH sensor rotor Refer to Component Description .

*: With Direct Adaptive Steering
