Component Location

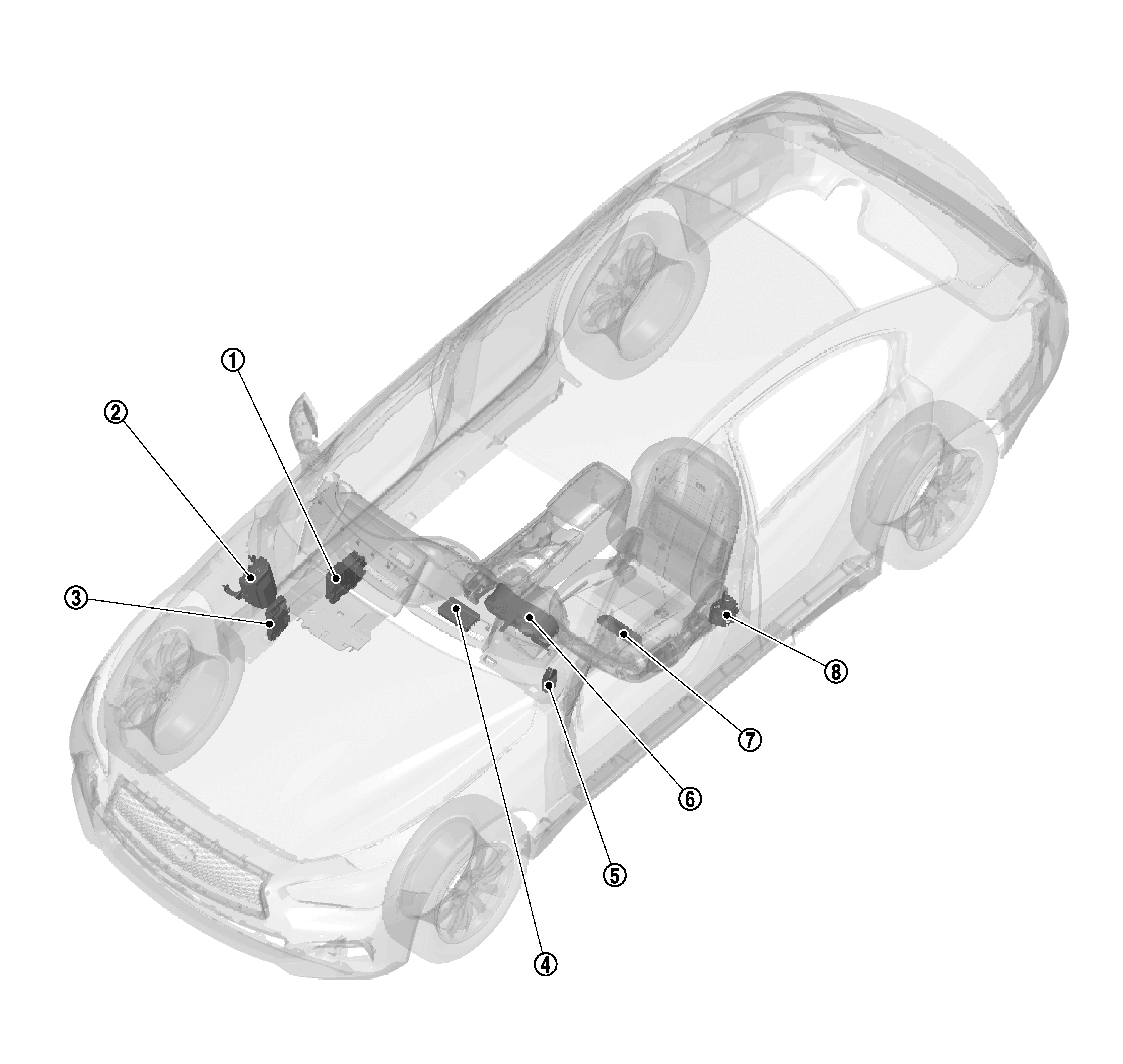

GNSDB148518Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Steering force control module
Refer to Component Location .		 SYMBOL IPDM E/R
Refer to Component Location .		 SYMBOL BCM
Refer to Component Location .
SYMBOL TCU SYMBOL CAN gateway SYMBOL Combination meter
SYMBOL Driver seat control unit SYMBOL Pre-crash seat belt control unit (driver side)
Refer to Component Location .
