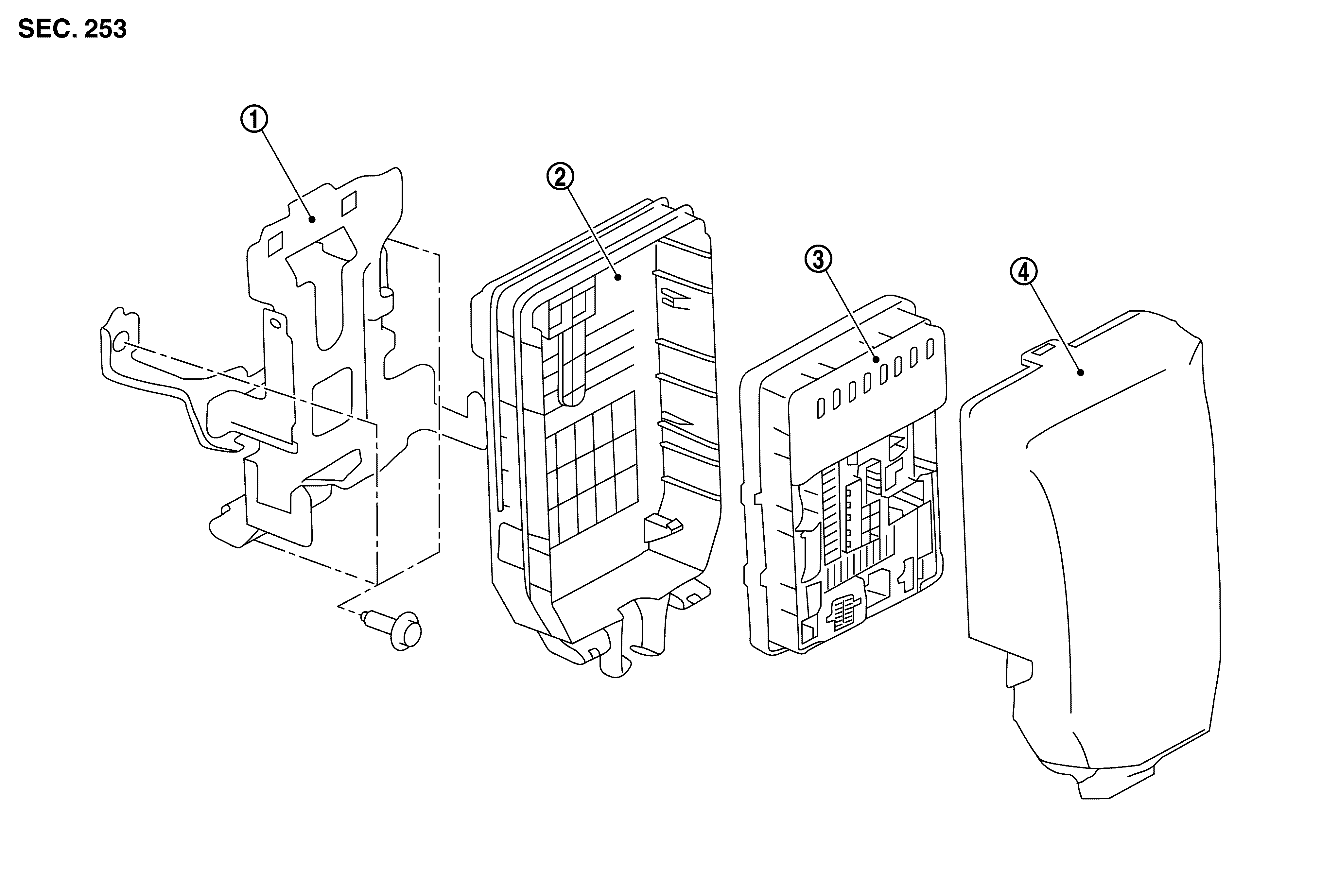

Exploded View

GNSDB149111Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Bracket SYMBOL IPDM E/R cover B SYMBOL IPDM E/R
SYMBOL IPDM E/R cover A
