Circuit Diagram

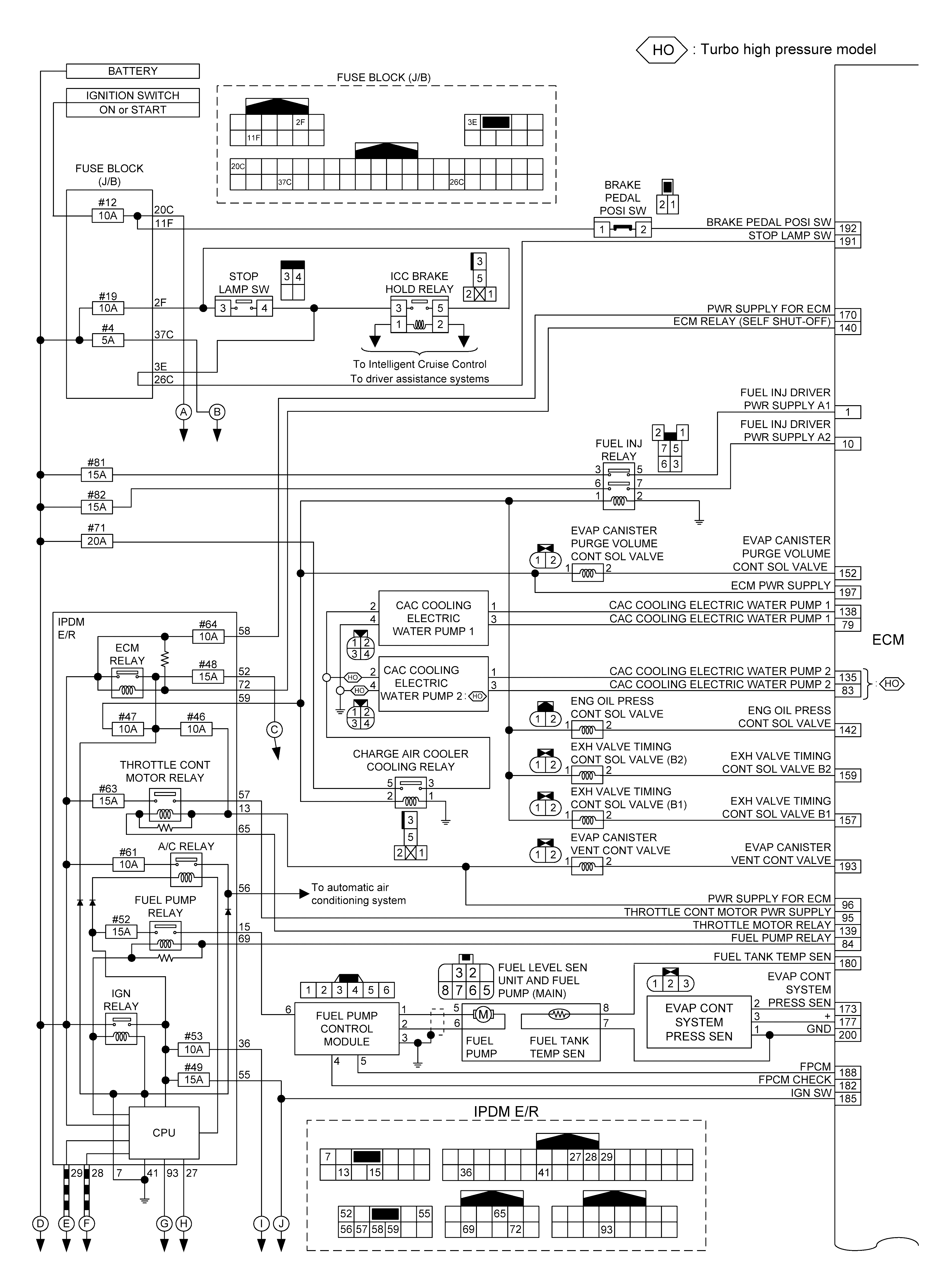

GNSDB149383Courtesy of NISSAN NORTH AMERICA, INC.

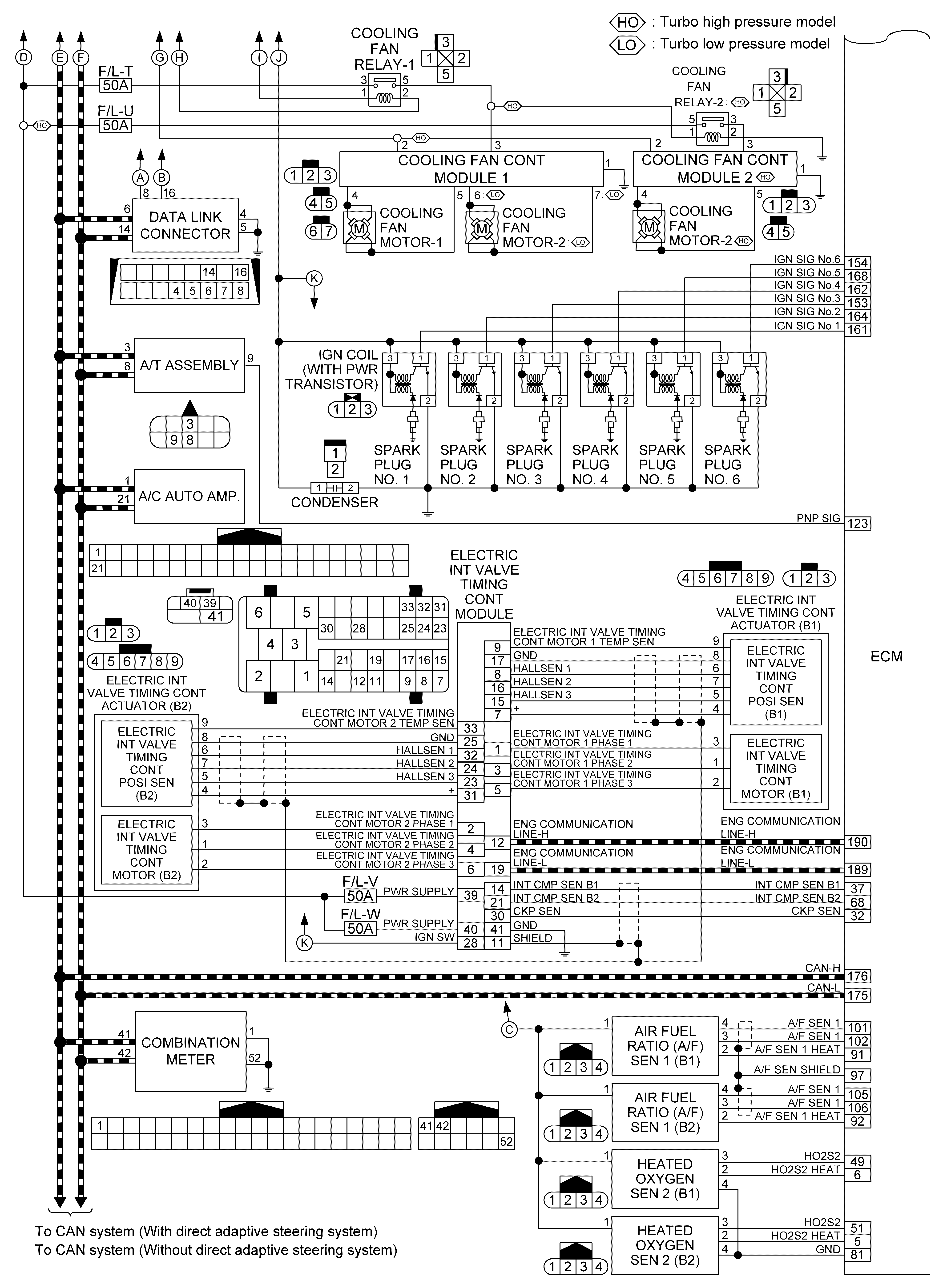

GNSDB148559Courtesy of NISSAN NORTH AMERICA, INC.

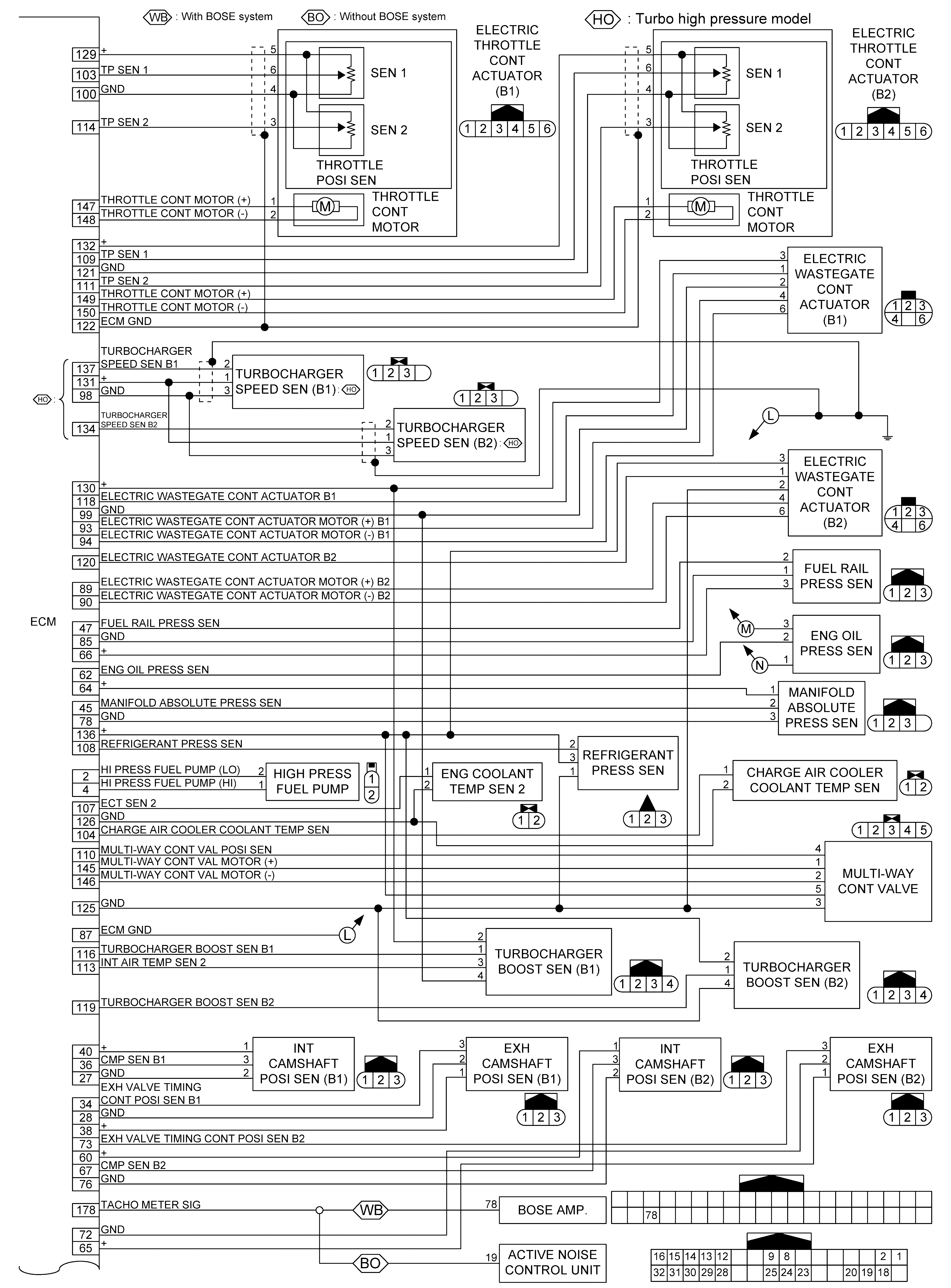

GNSDB148963Courtesy of NISSAN NORTH AMERICA, INC.

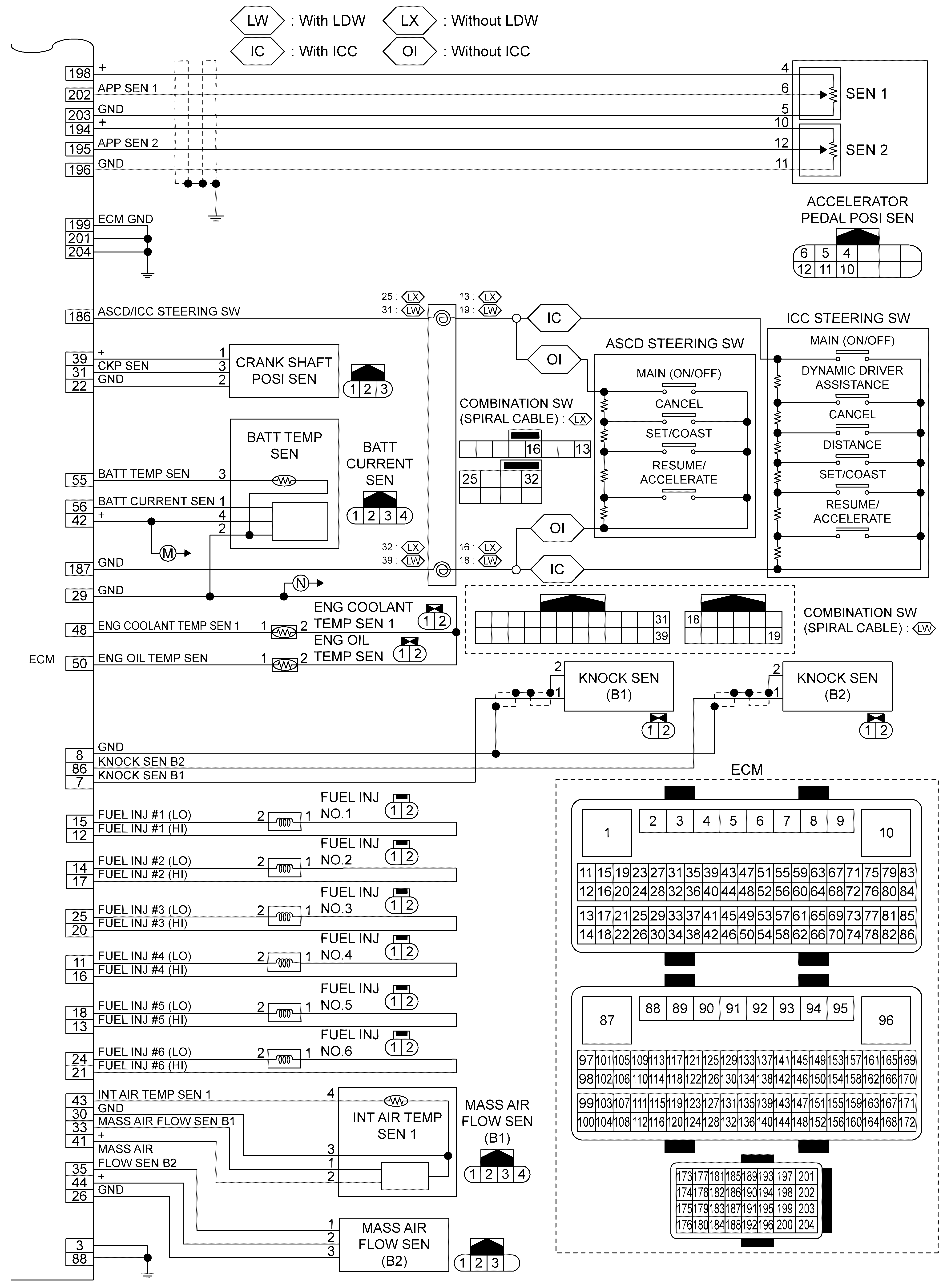

GNSDB147590Courtesy of NISSAN NORTH AMERICA, INC.
