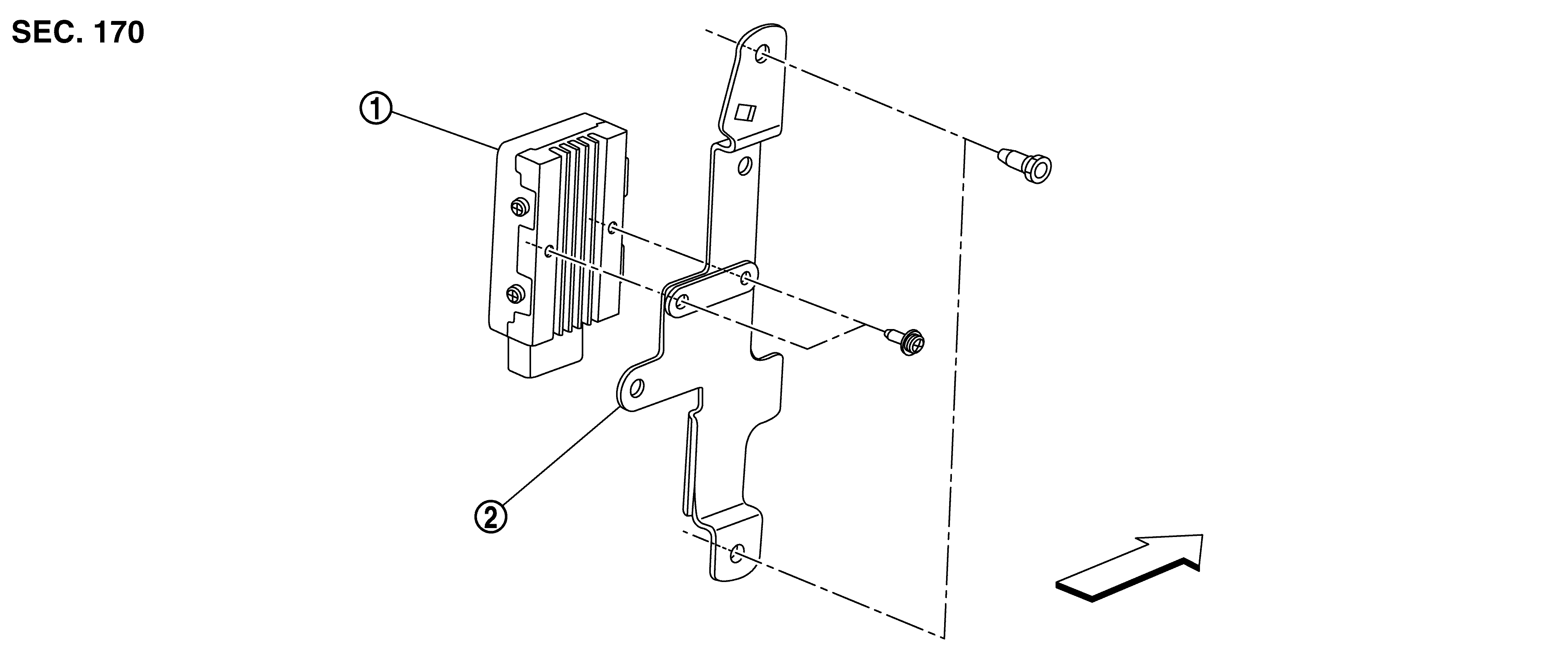

FUEL PUMP CONTROL MODULE (FPCM) : Exploded View

GNSDB147348Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Fuel pump control module SYMBOL Bracket
SYMBOL : Vehicle front
