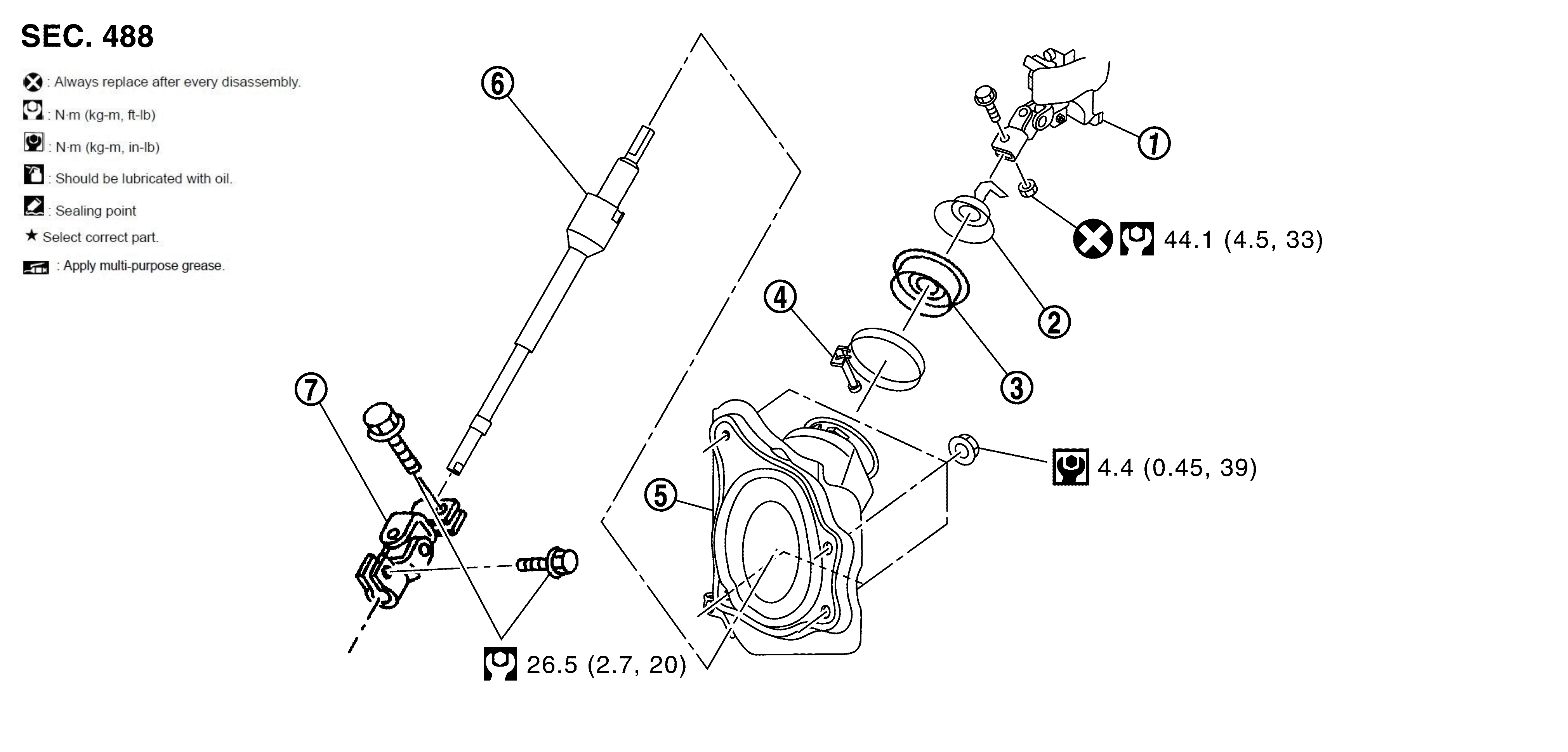

Exploded View

Fig 1: Steering Shaft with Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Steering column assembly	Collar	Hole cover seal
	Clamp	Hole cover	Steering shaft
	Lower joint
: Always replace after every disassembly.
: N.m (kg-m, ft-lb)
: N.m (kg-m, in-lb)
