Exploded View

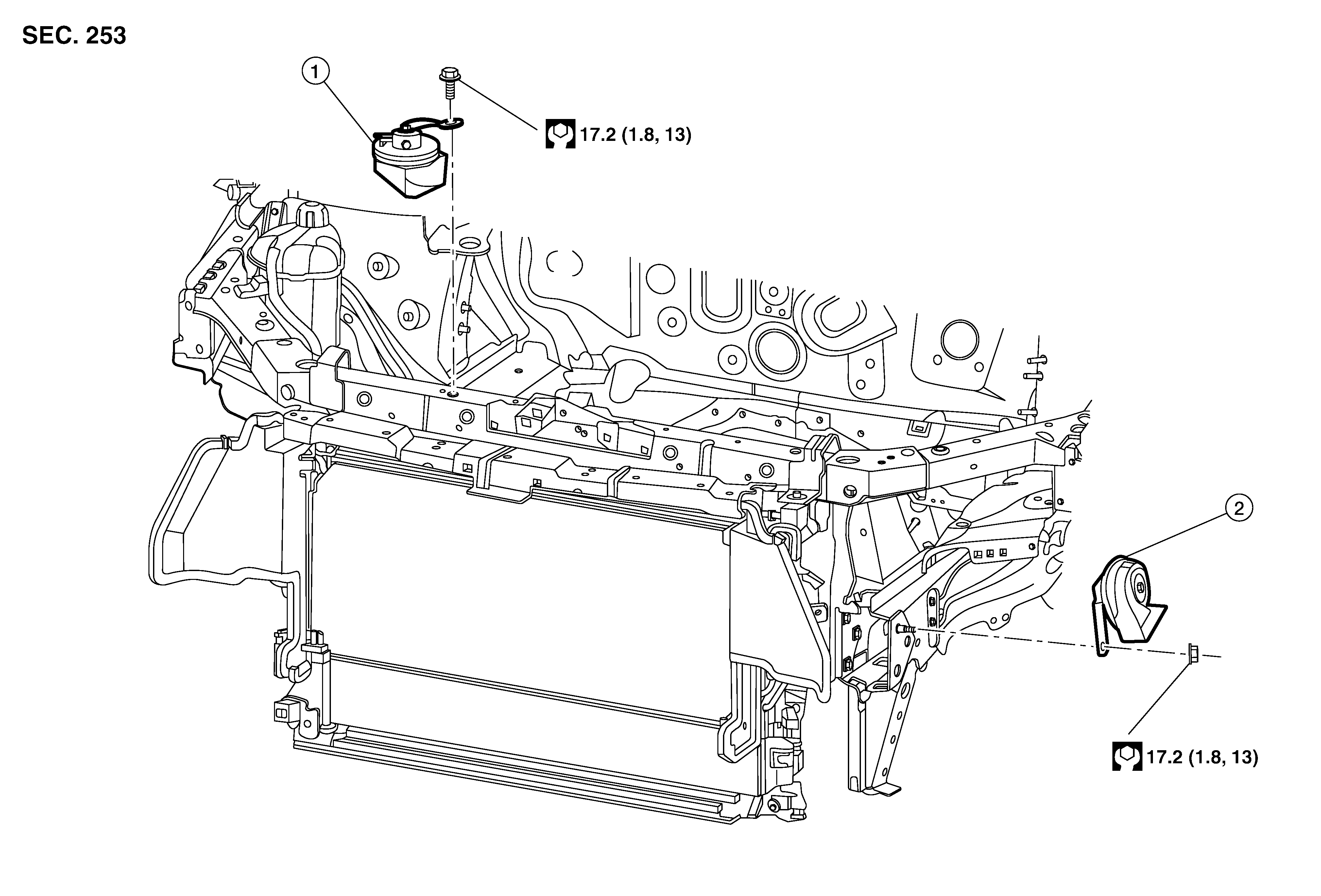

Fig 1: Horn With Torque Specifications

GNSDB139255

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Horn (LOW)

2.

Horn (HIGH)
