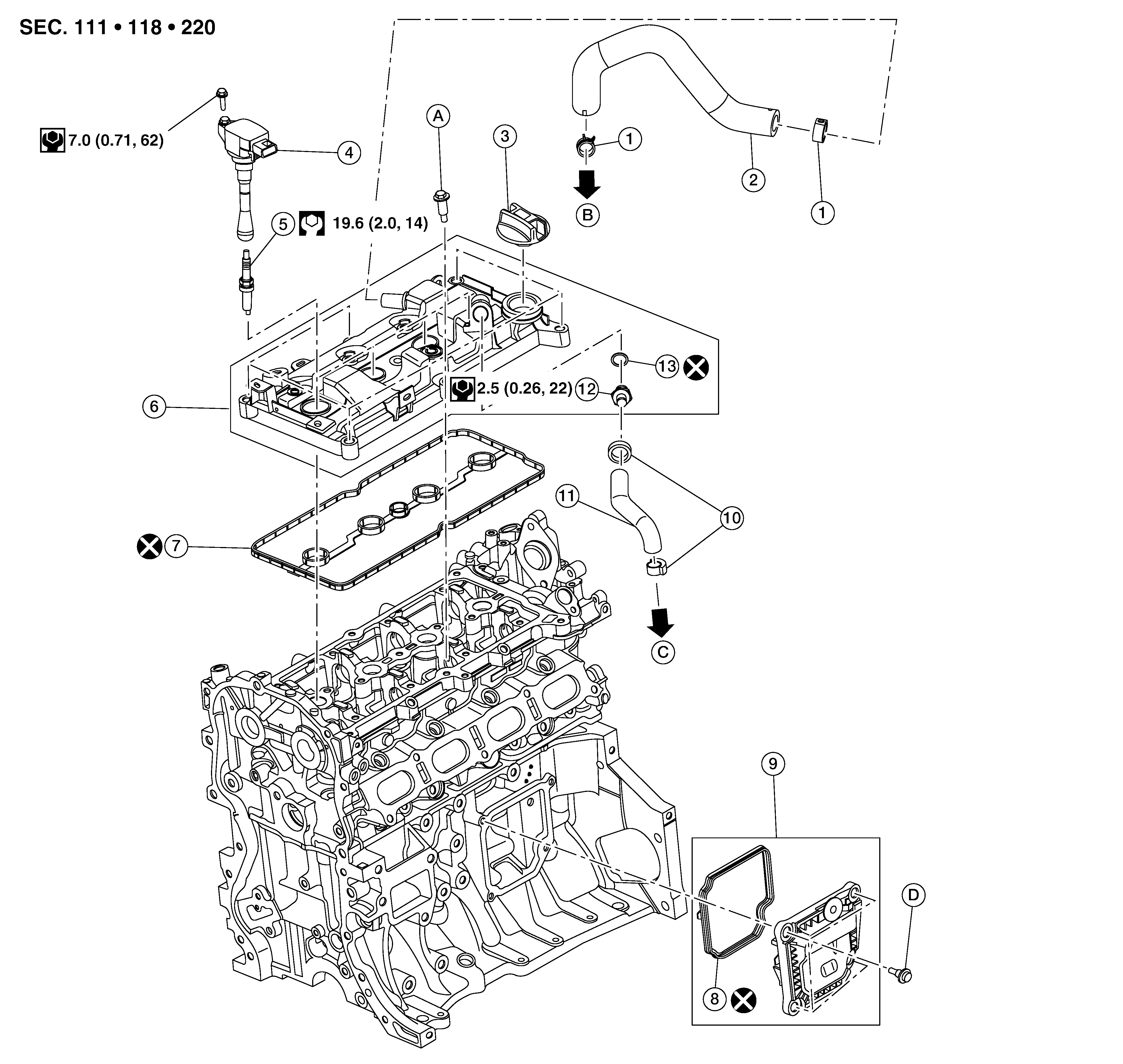

Exploded View
| 1. | Hose clamp | 2. | Air breather hose | 3. | Oil filler cap |
| 4. | Ignition coil | 5. | Spark plug | 6. | Rocker cover assembly |
| 7. | Rocker cover gasket | 8. | PCV separator gasket | 9. | PCV separator |
| 10. | Clamp | 11. | PCV hose | 12. | PCV valve |
| 13. | O-ring | A. | Refer to Removal and Installation . | B. | To air duct 1. Refer to Exploded View . |
| C. | To intake manifold. Refer to Exploded View . | D. | Refer to Removal and Installation . | ||
