Component Location

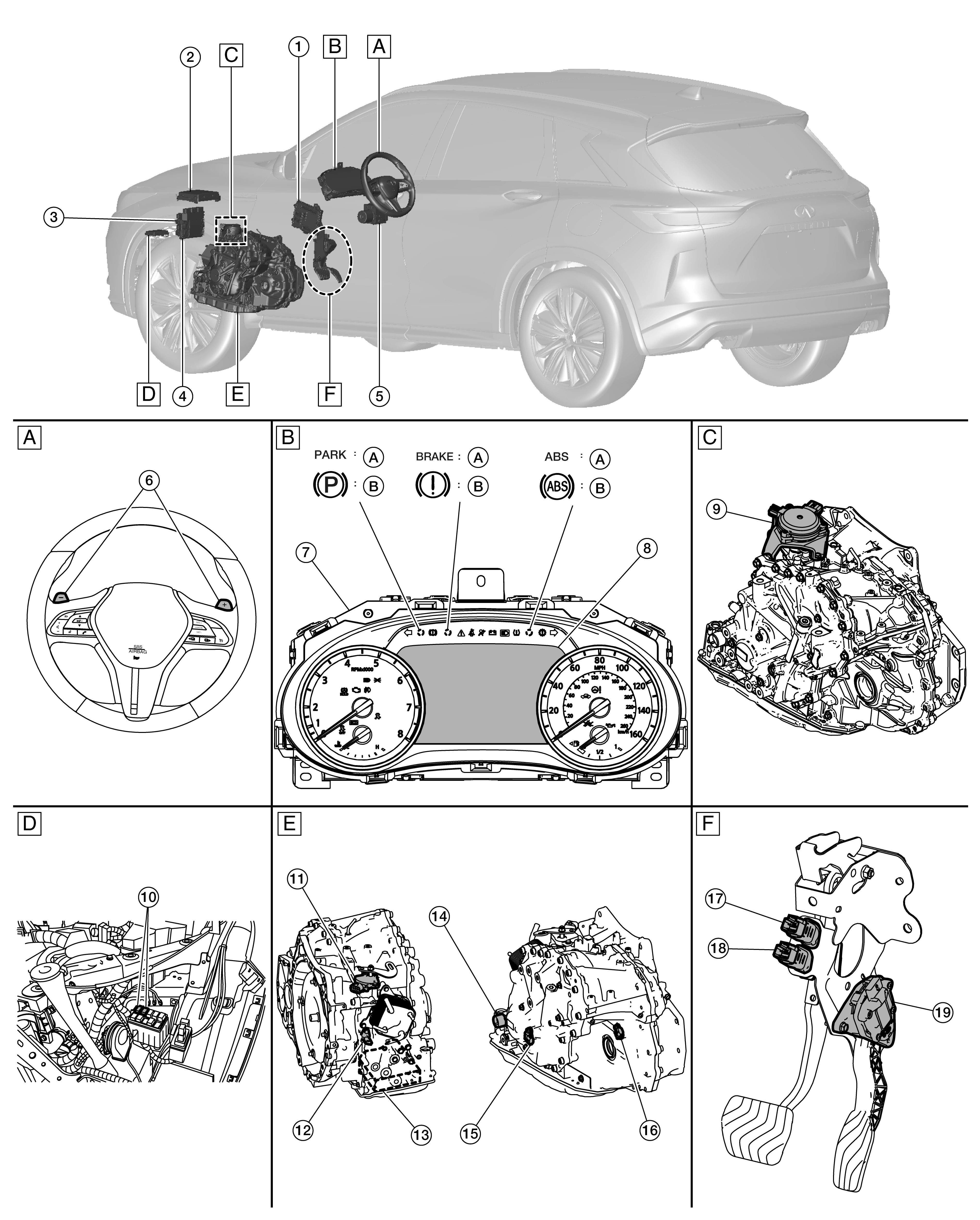

VEHICLE SIDE

GNSDB139155Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL BCM (view with combination meter removed). Refer to Component Location . SYMBOL IPDM E/R Refer to Removal and Installation . SYMBOL TCM
SYMBOL ECM. Refer to Component Location . SYMBOL ABS actuator and electronic unit (control unit). Refer to Component Location . SYMBOL Paddle shifter
SYMBOL Combination meter Refer to Removal and Installation . SYMBOL Shift position indicator SYMBOL Electric shift actuator
SYMBOL Shift actuator relays (A and B) SYMBOL Transmission range switch SYMBOL Input speed sensor
SYMBOL Control valve SYMBOL CVT unit connector SYMBOL Primary speed sensor
SYMBOL Output speed sensor SYMBOL Brake pedal position switch SYMBOL Stop lamp switch
SYMBOL Accelerator pedal position switch
SYMBOL Steering wheel SYMBOL Instrument panel LH SYMBOL Top of transaxle assembly
SYMBOL Left front of vehicle SYMBOL Side of transaxle assembly SYMBOL Brake pedal periphery

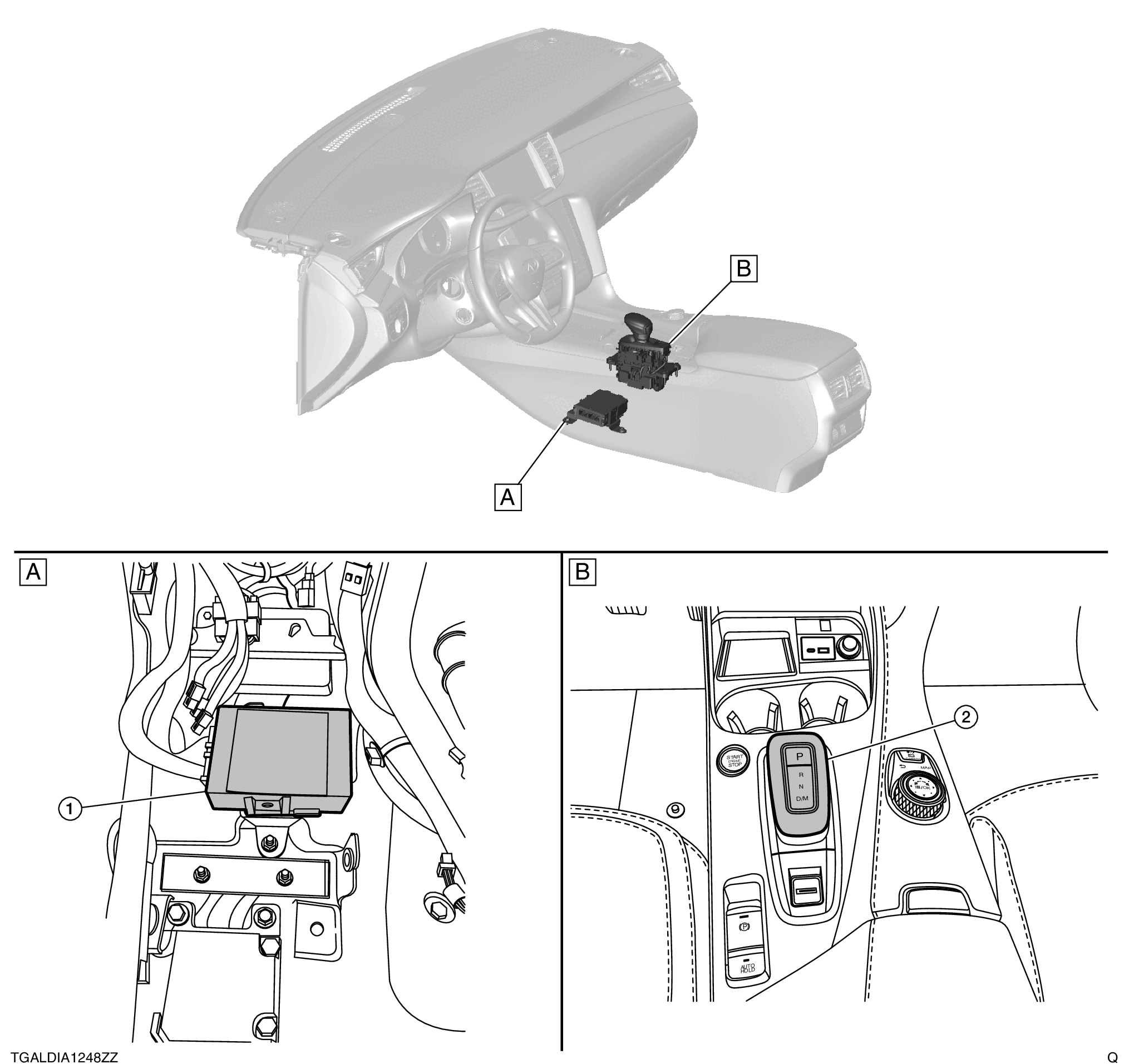

INTERIOR SIDE

GNSDB139041Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Electric shift control module SYMBOL Electric shift selector
SYMBOL Center console floor area SYMBOL Shift selector area
