System Description

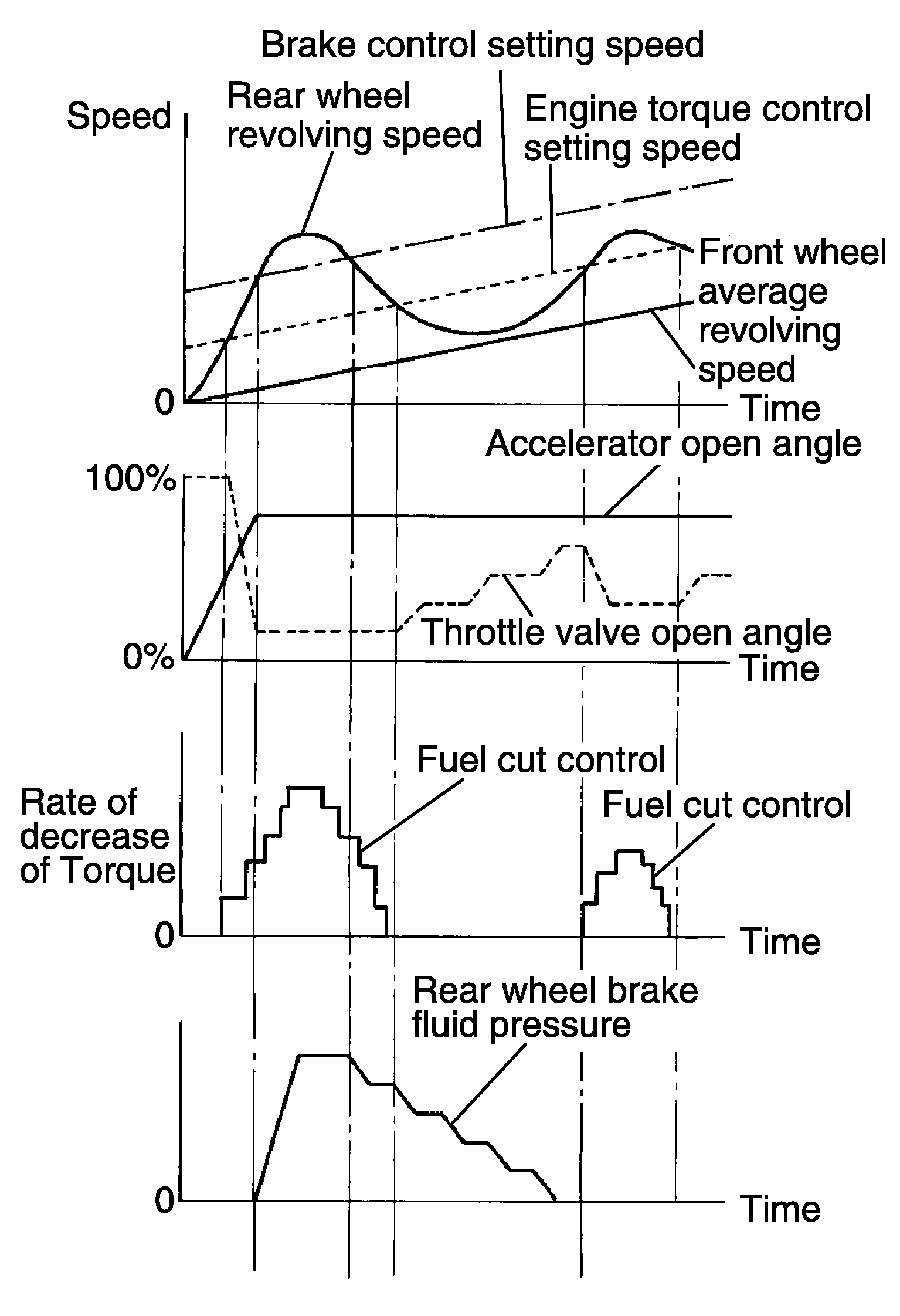

Wheel spin status of drive wheel is detected by wheel sensor of 4 wheels. Engine output and transmission shift status is controlled so that slip rate of drive wheels is in appropriate level. When wheel spin occurs on drive wheel, ABS actuator and electric unit (control unit) perform brake force control of LH and RH drive wheels (apply brake force by increasing brake fluid pressure of drive wheel) and decrease engine torque by engine torque control. Wheel spin amount decreases. Engine torque is controlled to appropriate level.

Courtesy of NISSAN NORTH AMERICA, INC.
TCS function can be switched to non-operational status (OFF) by operating integral switch (VDC OFF signal). In this case, VDC OFF indicator lamp turns ON.
VDC warning lamp blinks while TCS function is in operation and indicates to the driver that the function is in operation.
CONSULT can be used to diagnose the system diagnosis.
Fail-safe function is adopted. When a malfunction occurs in TCS function, the control is suspended for VDC function, TCS function, Brake assist function, hill start assist function and Brake force distribution function The vehicle status becomes the same as models without VDC function, TCS function, Brake assist function, hill start assist function and Brake force distribution function However, ABS function and EBD function are operated normally. Refer to Fail-Safe .

SYSTEM DIAGRAM

Courtesy of NISSAN NORTH AMERICA, INC.

INPUT SIGNAL AND OUTPUT SIGNAL

Major signal transmission between each unit via communication lines is shown in the following table:

Component	Signal description
ECM	Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication: Accelerator pedal position signal Engine speed signal Engine torque signal Stop lamp switch signal Mainly receives the following signal from ABS actuator and electric unit (control unit) via CAN communication: Engine torque request signal
TCM	Mainly transmits the following signal to ABS actuator and electric unit (control unit) via CAN communication: Current gear position signal
Chassis control module	Mainly transmits the following signal to ABS actuator and electric unit (control unit) via CAN communication: Active trace control signal
Combination meter	Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication: Brake fluid level switch signal Electric parking brake switch signal Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN communication: VDC warning lamp signal VDC OFF indicator lamp signal
Steering angle sensor	Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication: Steering angle sensor signal Steering angle sensor malfunction signal
