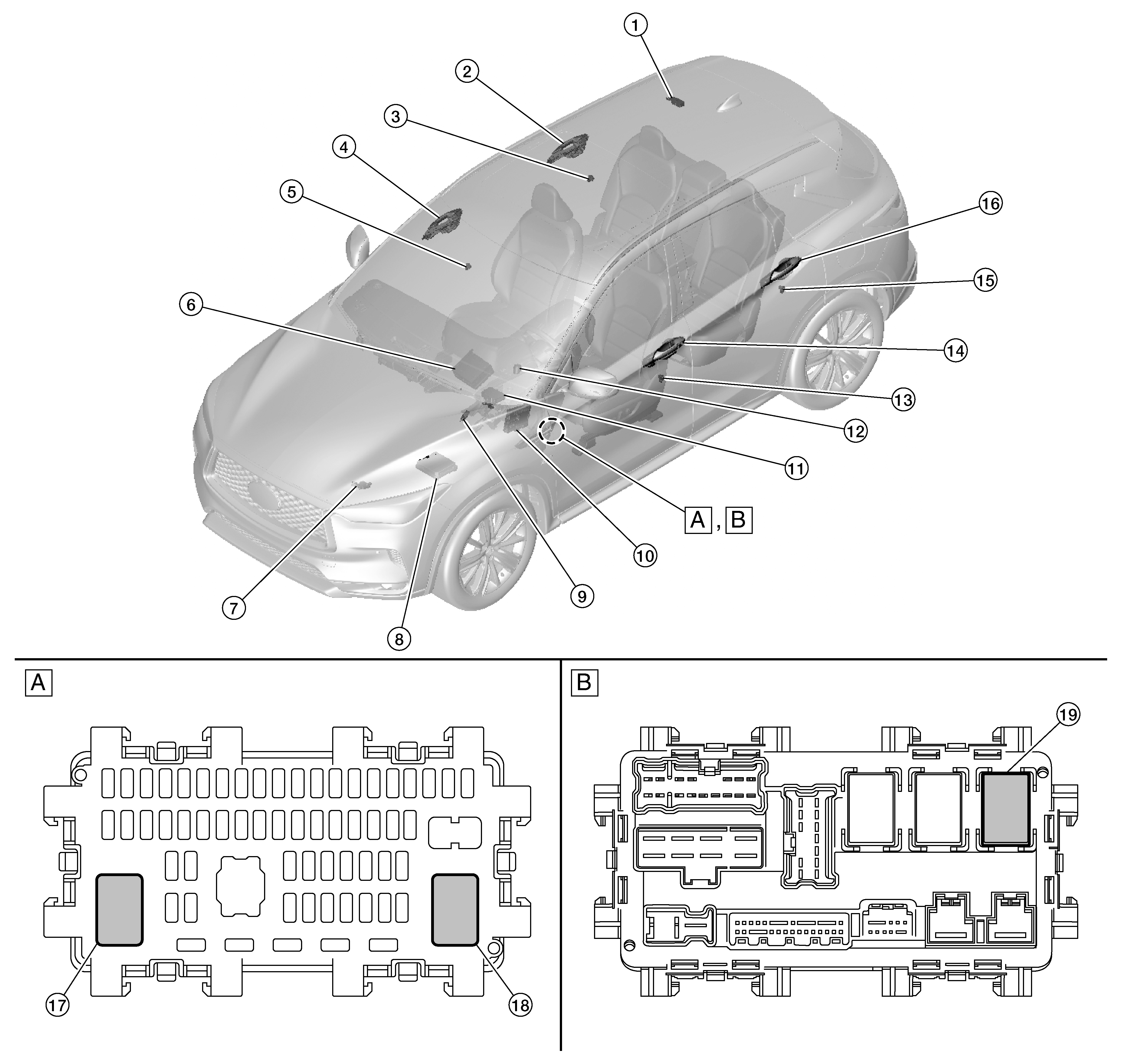

| 1. |
Remote keyless entry receiver |
Transmits the key ID signal to the BCM via CAN communication. Refer to Remote Keyless Entry Receiver for detailed component location.Remote Keyless Entry Receiver
for detailed component location. |
| 2. |
Rear outside handle assembly RH (request switch) |
Transmits the request switch signal to the BCM. Refer to Rear Door Request Switch for detailed component location.Rear Door Request Switch
for detailed component location. |
| 3. |
Rear door switch RH |
Transmits the door switch signal to the BCM. Refer to Rear Door Switch for detailed component location.Rear Door Switch
for detailed component location. |
| 4. |
Front outside handle assembly RH (request switch) |
Transmits the request switch signal to the BCM. Refer to Front Door Request Switch (RH) for detailed component location.Front Door Request Switch (RH)
for detailed component location. |
| 5. |
Front door switch RH |
Transmits the door switch signal to the BCM. Refer to Front Door Switch for detailed component location.Front Door Switch
for detailed component location. |
| 6. |
AV control unit |
Receives the auto ACC signal from the BCM. Refer to AV Control Unit for detailed component location.AV Control Unit
for detailed component location. |
| 7. |
Transmission range switch |
Transmits the P/N position signal to the IPDM E/R. Refer to Transmission Range Switch for detailed component location.Transmission Range Switch
for detailed component location. |
| 8. |
IPDM E/R (Intelligent Power Distribution Module Engine Room) |
- IPDM E/R detects push-button ignition switch status, and transmits push-button ignition switch status signal (CAN) to the BCM.
- IPDM E/R receives ignition relay-1 (IPDM E/R) control signal and push-button ignition switch ON signal (CAN) from BCM, and controls the ignition relay-1.
Refer to System Description
. |
| 9. |
Stop lamp switch |
Transmits the stop lamp switch signal to the BCM. Refer to Stop Lamp Switch for detailed component location.Stop Lamp Switch
for detailed component location. |
| 10. |
BCM (Body Control Module) |
- BCM controls the power distribution system.
- BCM judges push-button ignition switch status by push-button ignition switch and vehicle condition.
- BCM checks push-button ignition switch status internally.
Refer to System Description
. |
| 11. |
Electric shift control module |
Transmits the park position signal to the BCM. Refer to Electric Shift Control Module for detailed component location.Electric Shift Control Module
for detailed component location. |
| 12. |
Push-button ignition switch |
Refer to Push-Button Ignition Switch . |
| 13. |
Front door switch LH |
Transmits the door switch signal to the BCM. Refer to Front Door Switch for detailed component location.Front Door Switch
for detailed component location. |
| 14. |
Front outside handle assembly LH (request switch) |
Transmits the request switch signal to the BCM. Refer to Front Door Request Switch (LH) for detailed component location.Front Door Request Switch (LH)
for detailed component location. |
| 15. |
Rear door switch LH |
Transmits the door switch signal to the BCM. Refer to Rear Door Switch for detailed component location.Rear Door Switch
for detailed component location. |
| 16. |
Rear outside handle assembly LH (request switch) |
Transmits the request switch signal to the BCM. Refer to Rear Door Request Switch for detailed component location.Rear Door Request Switch
for detailed component location. |
| 17. |
Accessory relay-1 [in fuse block (J/B) ] |
- Accessory relay-1 is controlled by the BCM.
- Accessory relay-1 supplies accessory power supply or push-button ignition switch ON signal to each ECU when the push-button ignition switch is placed ON.
- BCM compares status of accessory relay-1 control signal, and push-button ignition switch status judged by the BCM.
|
| 18. |
Ignition relay-2 [in fuse block (J/B) ] |
- Ignition relay-2 is controlled by the BCM.
- Ignition relay-2 supplies ignition ON power supply or push-button ignition switch ON signal to each ECU and system when the push-button ignition switch is placed ON.
- BCM compares status of ignition relay-2 control signal and push-button ignition switch status judged by the BCM.
- BCM monitors ignition relay-2 operating status using the ignition relay-2 feedback signal.
|
| 19. |
Front blower motor relay [in fuse block (J/B) ] |
- Front blower motor relay is controlled by the BCM.
- Front blower motor supplies ignition ON power supply or push-button ignition switch ON signal to the air conditioning system when the push-button ignition switch is placed ON.
- BCM compares status of the front blower motor relay control signal and push-button ignition switch status judged by the BCM.
|
