Exploded View

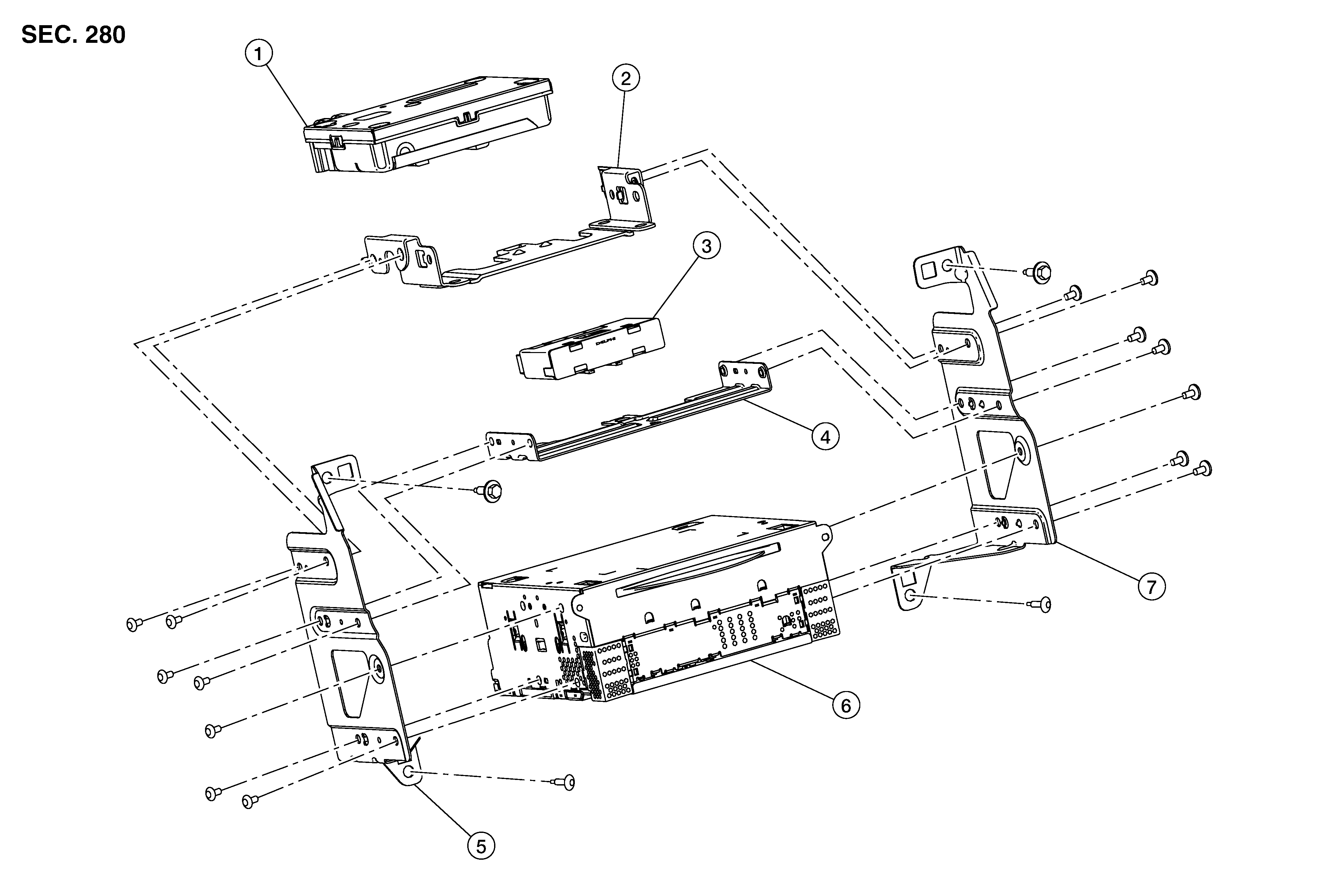

GNSDB139602Courtesy of NISSAN NORTH AMERICA, INC.
1. TCU 2. TCU bracket 3. Front Auxiliary Input Jacks control unit
4. Front Auxiliary Input Jacks control unit bracket 5. Control unit bracket (LH) 6. AV control unit
7. Control unit bracket (RH)
