Removal And Installation
›
Display Unit
›

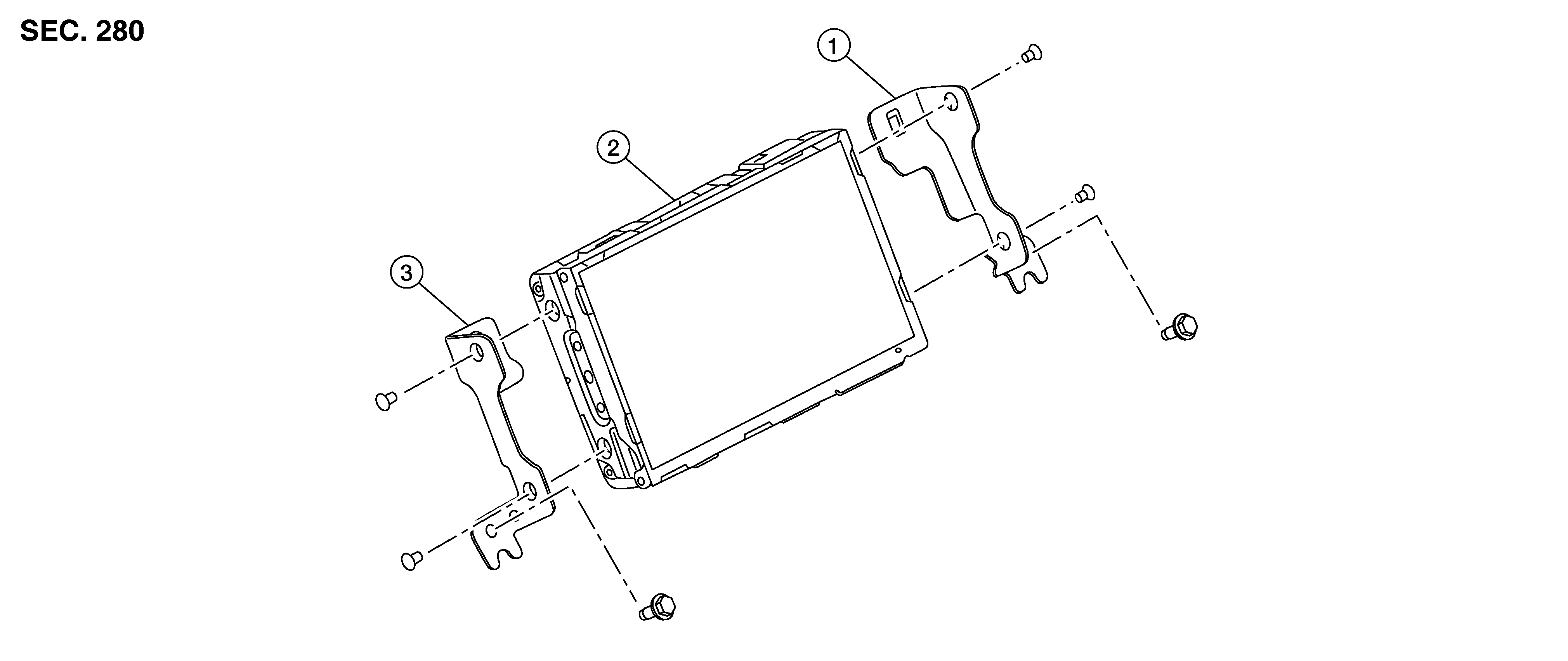

Exploded View
Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Display unit bracket (RH)
2.
Display unit
3.
Display unit bracket (LH)
