Exploded View

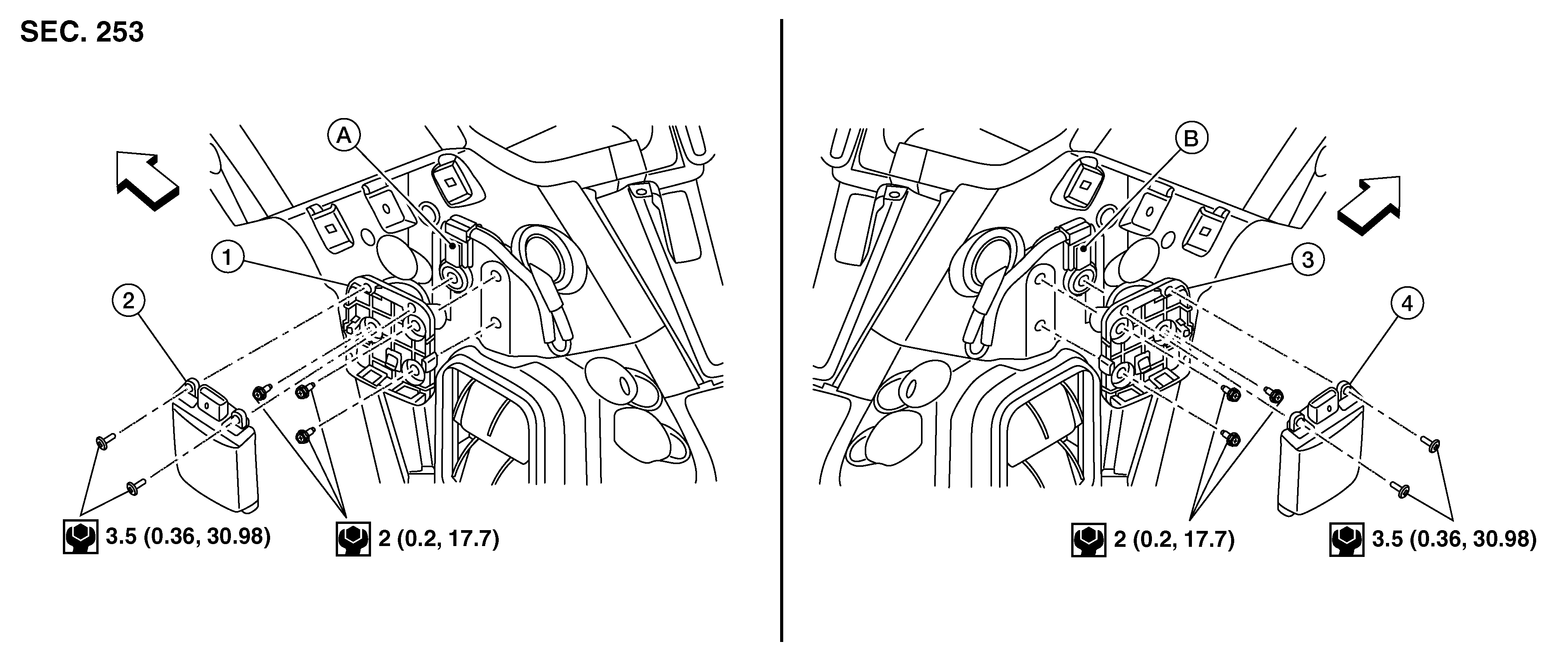

Fig 1: Side Radar With Torque Specifications

GNSDB138495

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Retaining bracket (LH)	2.	Side radar (LH)	3.	Retaining bracket (RH)
4.	Side radar (RH)	A.	Harness connector (LH)	B.	Harness connector (RH)
	Front
