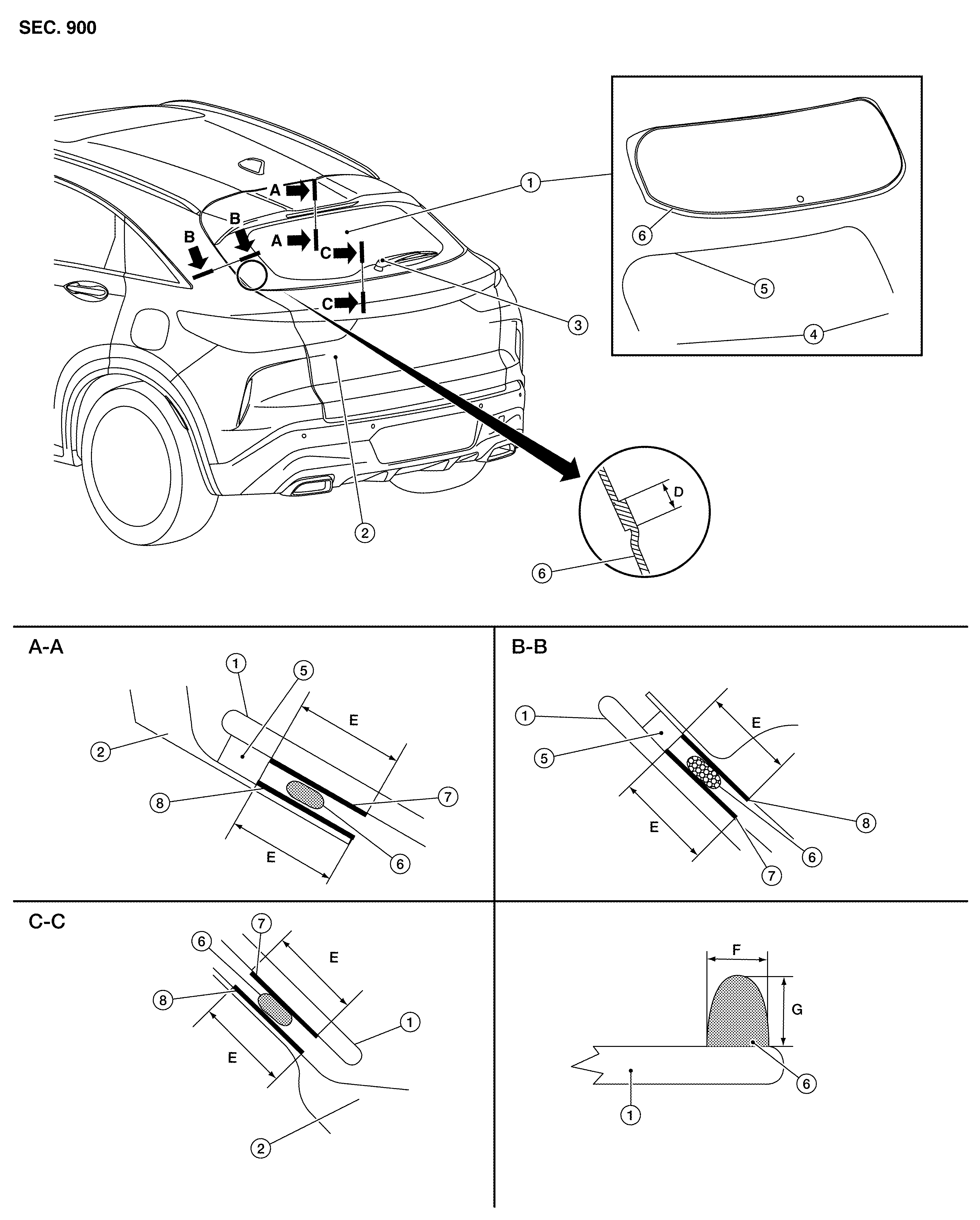

Exploded View

GNSDB140414

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Back door glass	2.	Back door assembly	3.	Rear wiper arm
4.	Spacer	5.	Dam sealant upper	6.	Adhesive
7.	Glass primer	8.	Body primer	D.	30 mm (1.18 in)
E	15 mm (0.59 in)	F.	7 + 2, - 0 mm (0.28 + 0.08, - 0 in)	G.	12 + 2, - 0 mm (0.47 + 0.08, - 0 in)
