Chassis Control Display

DESIGN/PURPOSE

• Hill start assist function information is displayed on the information display.

System Information

Design	Description

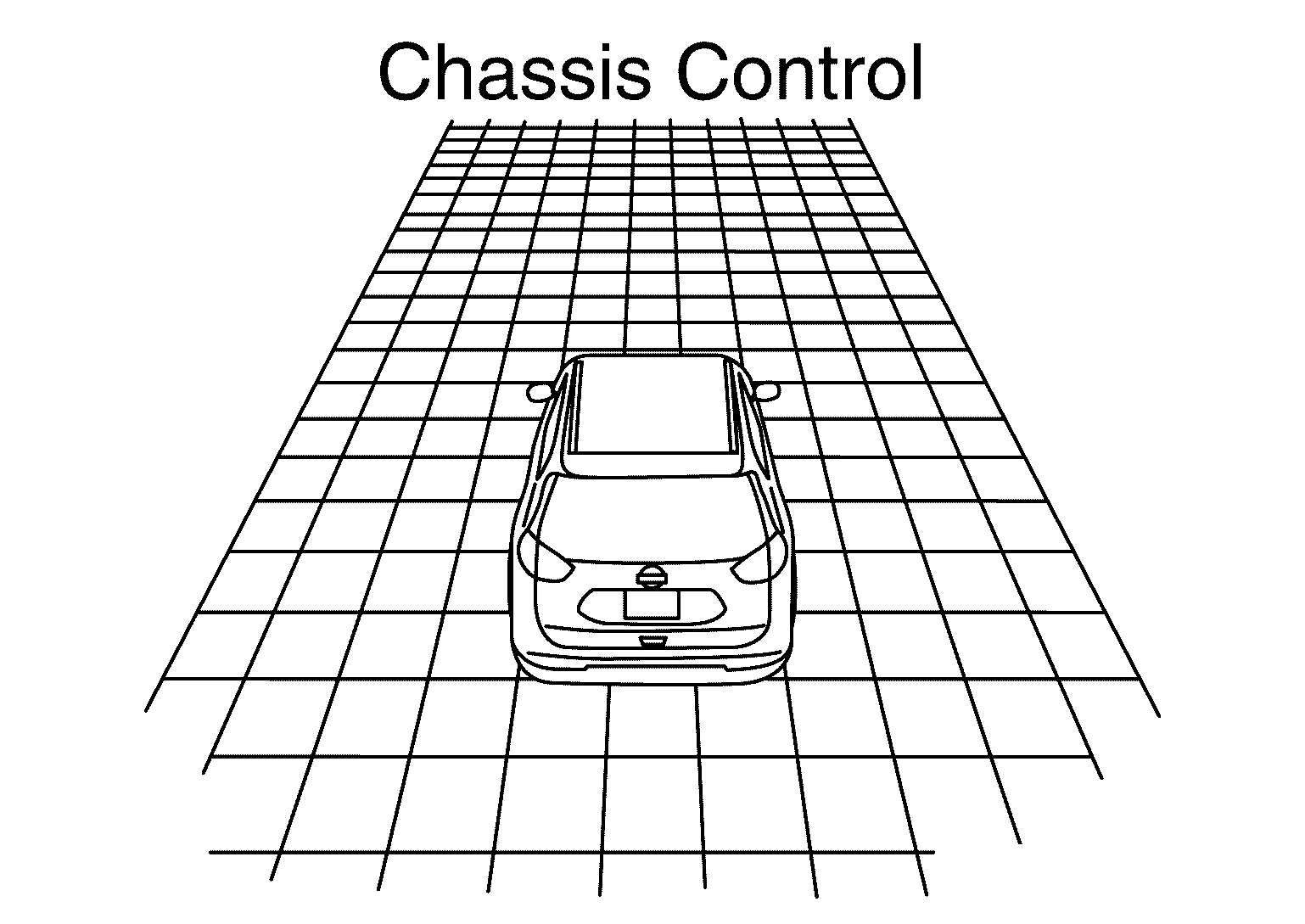

Courtesy of NISSAN NORTH AMERICA, INC.	Hill start assist function operation condition is not satisfied.

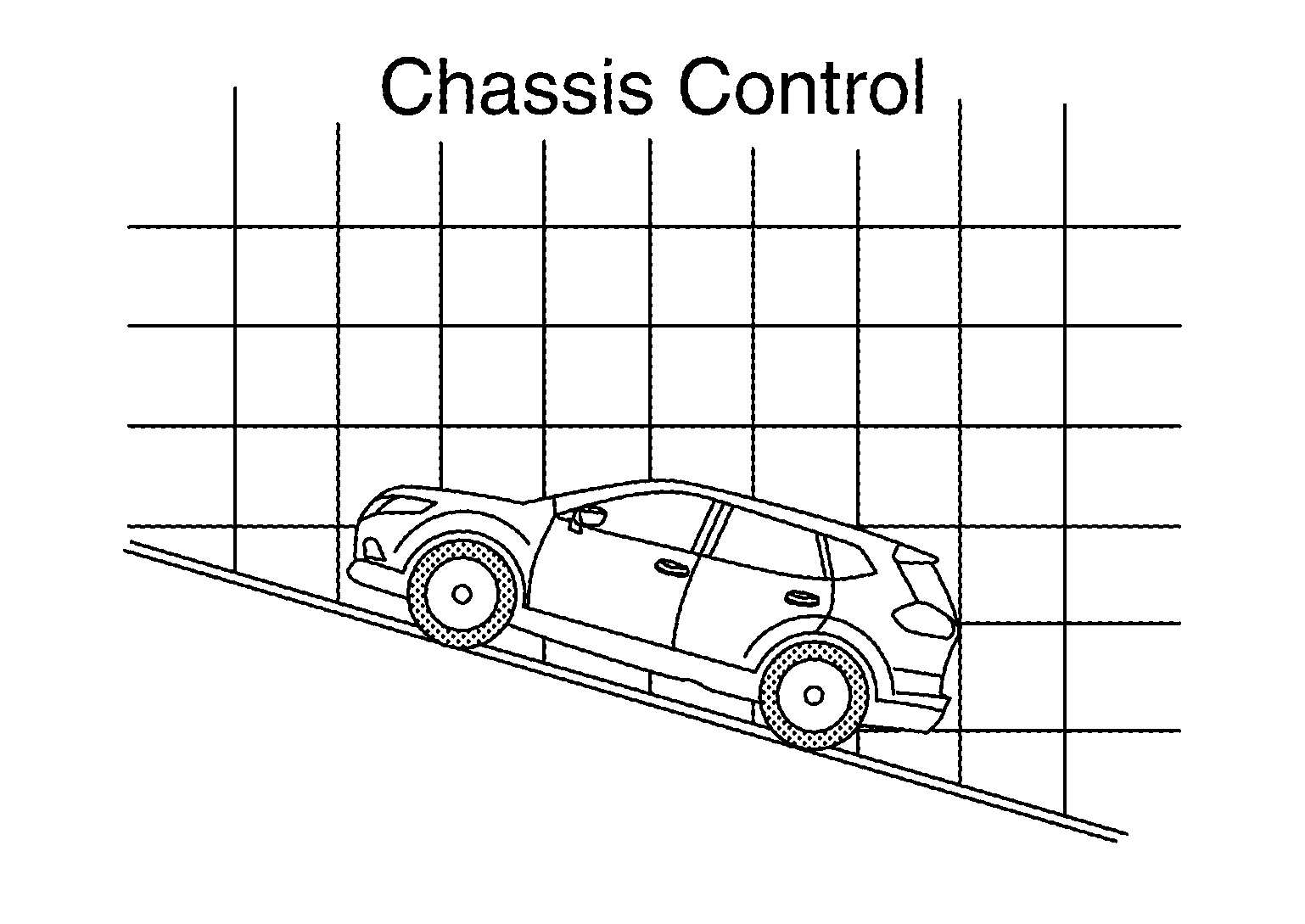

Courtesy of NISSAN NORTH AMERICA, INC.	Not blinking (tire): Hill start assist function operation condition is satisfied (not operating). Blinking (tire): Hill start assist function is operating.

SYNCHRONIZATION WITH MASTER WARNING LAMP

Not applicable

SIGNAL PATH

Hill Start Assist Function

• The ABS actuator and electric unit (control unit) transmits a hill start assist display request signal to the chassis control module via CAN communication when operating status in the hill assist function.
• The chassis control module receiving a hill start assist display request signal, and transmits a hill start assist display request signal to the combination meter via CAN communication.
• The combination meter shows the chassis control display on the information display, according to the signal.
