Component Location

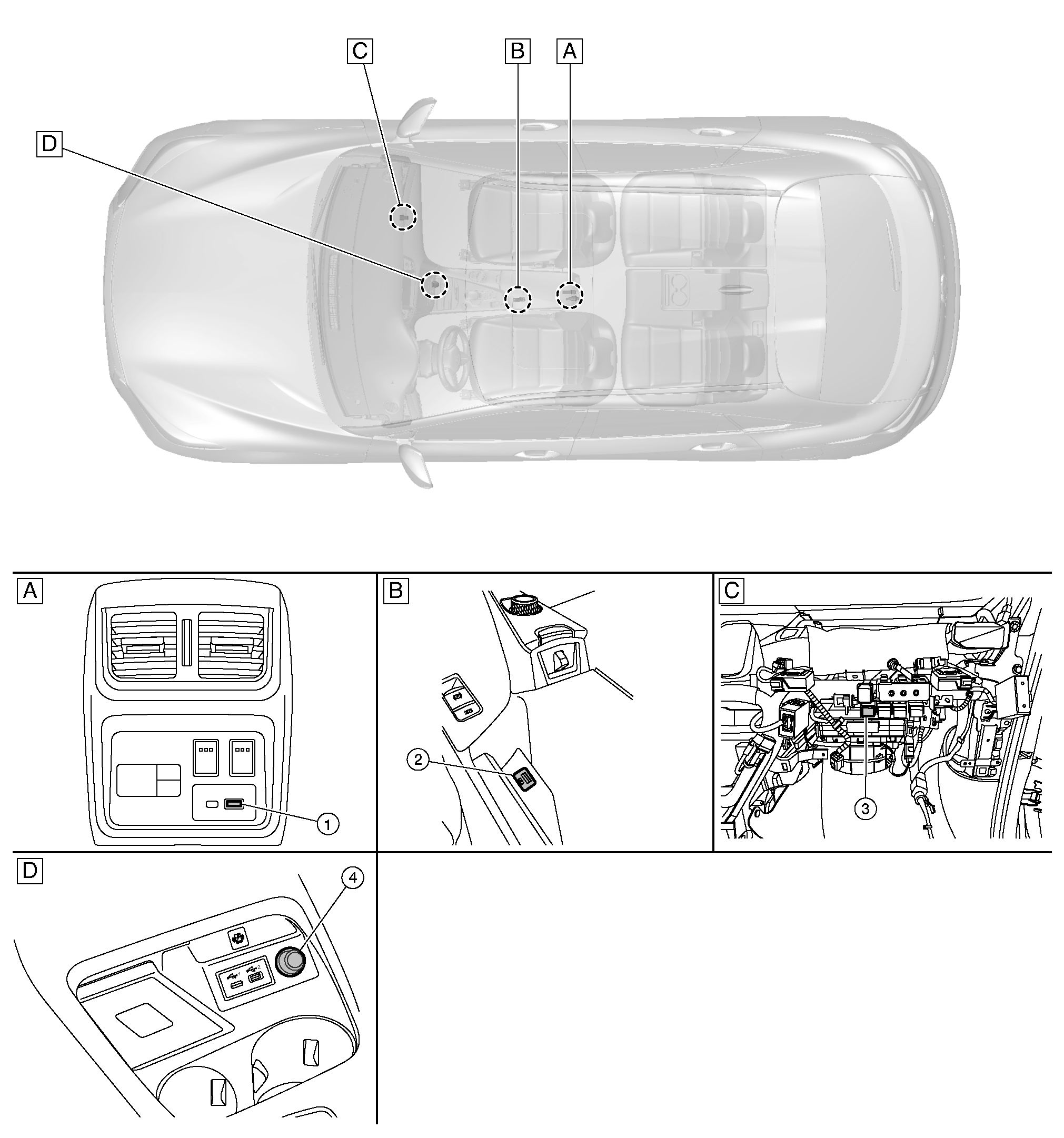

GNSDB140347Courtesy of NISSAN NORTH AMERICA, INC.
A. Center console rear finisher B. View with center console lid open C. View with instrument panel removed
D. Center console
No. Component
1. Rear USB charge port
2. Front USB charge port
3. Front power socket relay
4. Front power socket
