Exploded View

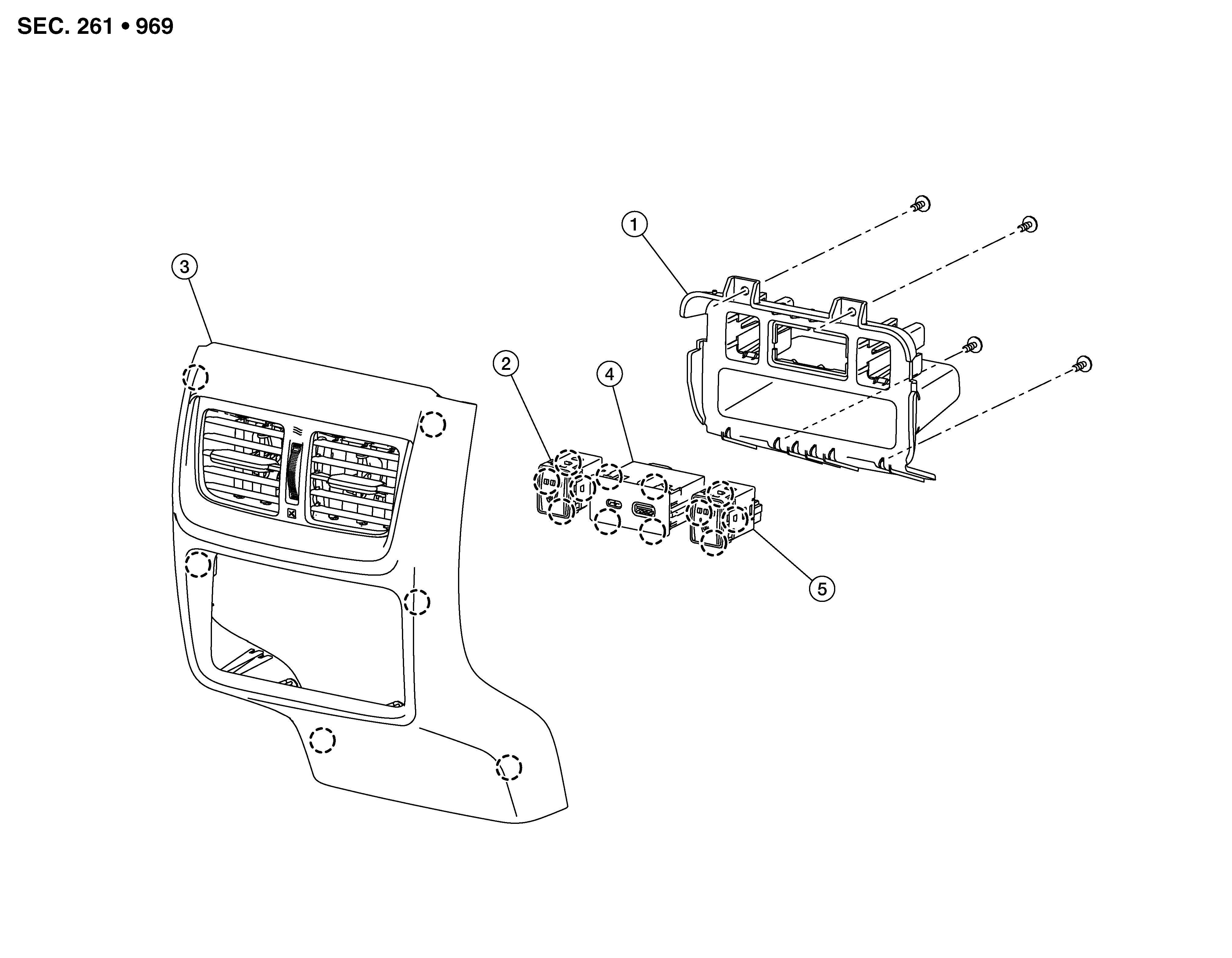

WITHOUT REAR AIR CONTROL

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Console switch finisher	2.	Rear heated seat switch (with rear heated seats)	3.	Rear center console finisher
4.	Rear USB charge port	5.	Rear heated seat switch (with rear heated seats)		Pawl

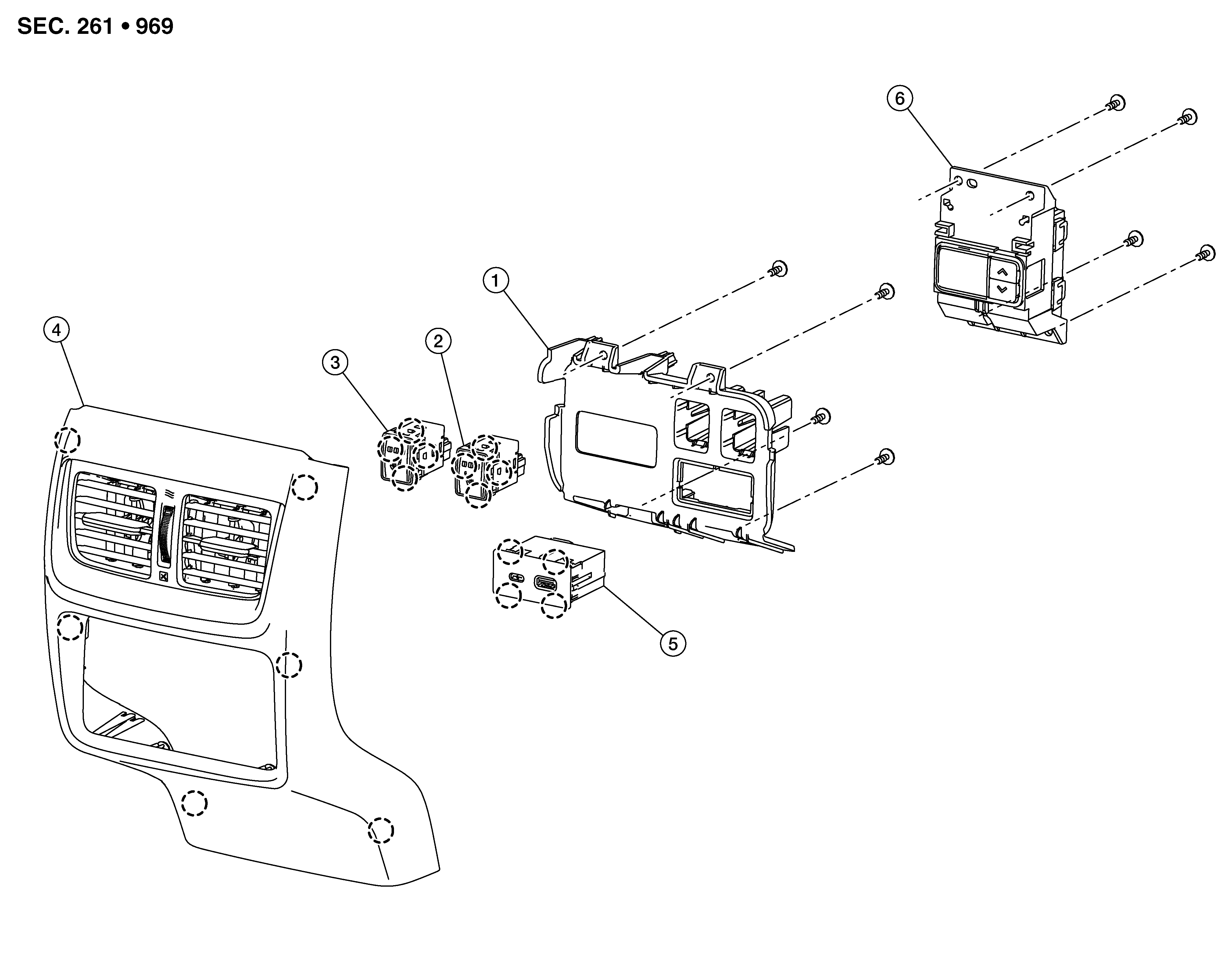

WITH REAR AIR CONTROL

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Console switch finisher	2.	Rear heated seat switch (with rear heated seats)	3.	Rear heated seat switch (with rear heated seats)
4.	Rear center console finisher	5.	Rear USB charge port	6.	Rear air control
	Pawl
