Work Flow (Without 165-DSS-5000P)

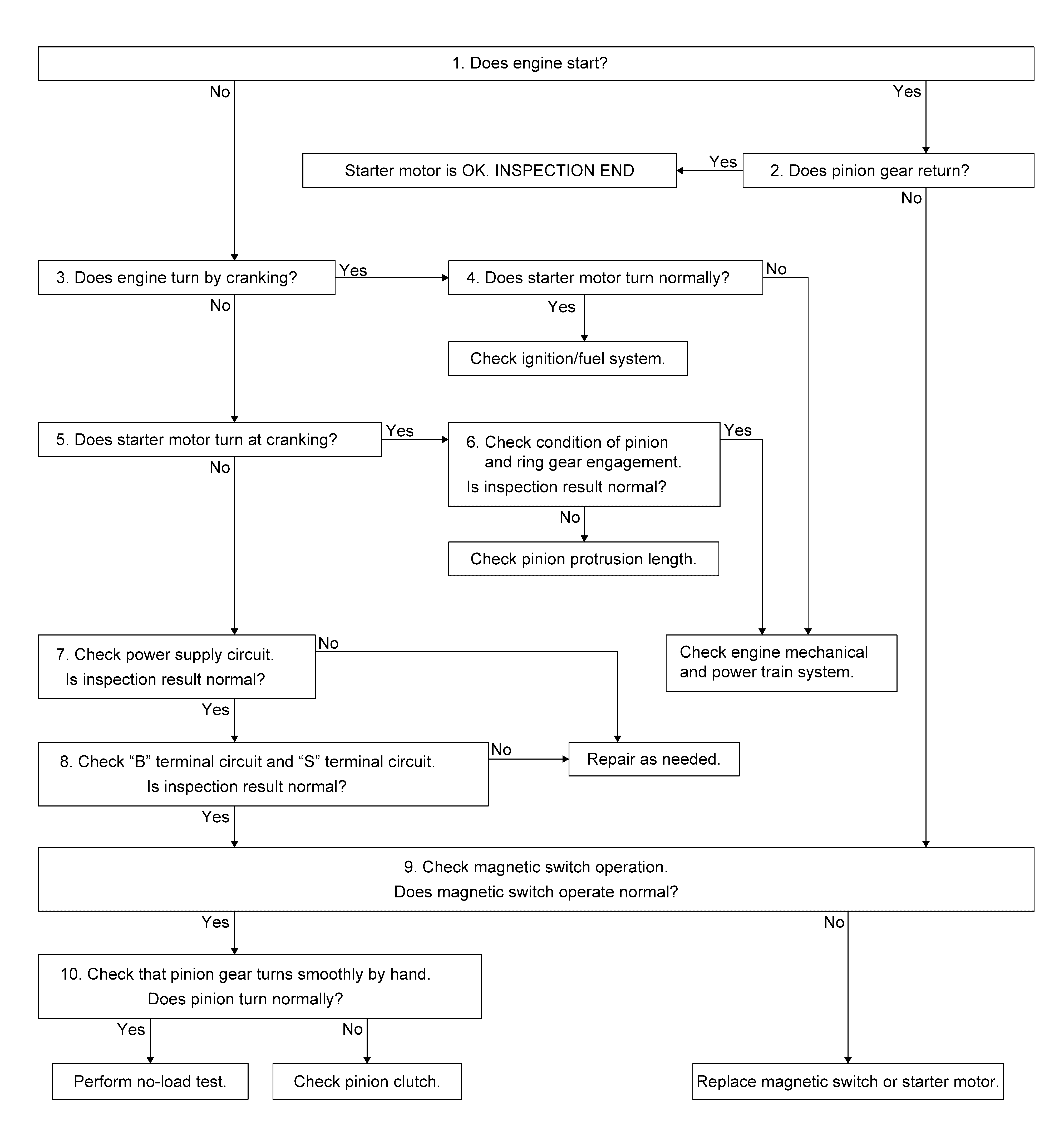

OVERALL SEQUENCE

Courtesy of NISSAN NORTH AMERICA, INC.

DETAILED FLOW

NOTE: If any malfunction is found, immediately disconnect the battery cable from the negative terminal.

1. CHECK ENGINE START
   1. Crank engine and check that engine starts.

   Does engine start?

   YES>>

   GO TO 2.

   NO>>

   GO TO 3.

2. CHECK RETURN OF PINION GEAR
   1. Check that pinion gear returns to original position after engine starts.

   Does pinion gear return?

   YES>>

   Starter motor is OK. Inspection End.

   NO>>

   GO TO 9.

3. CHECK ENGINE SPEED WITH CRANKING
   1. Check that engine turns while cranking.

   Does engine turn by cranking?

   YES>>

   GO TO 4.

   NO>>

   GO TO 5.

4. CHECK STARTER MOTOR TURNING WITH CRANKING
   1. Check that starter motor runs smoothly without abnormal noise at cranking.

   Does starter motor turn normally?

   YES>>

   Check ignition/fuel system.

   NO>>

   Check engine mechanical and power train system.

5. CHECK STARTER MOTOR SPEED WITH CRANKING
   1. Check that starter motor turns while cranking.

   Does starter motor turn at cranking?

   YES>>

   GO TO 6.

   NO>>

   GO TO 7.

6. CHECK PINION GEAR AND RING GEAR ENGAGEMENT
   1. Check condition of pinion and ring gear engagement.

   Is inspection result normal?

   YES>>

   Check engine mechanical and power train system.

   NO>>

   Check pinion protrusion length. Refer to Inspection .

7. CHECK POWER SUPPLY CIRCUIT
   1. Check the following conditions:
      • Fuse and fusible link
      • Charge condition, corrosion and connection condition of the battery. Refer to How to Handle Battery .

   Are these inspection results normal?

   YES>>

   GO TO 8.

   NO>>

   Repair as needed.

8. CHECK STARTING SYSTEM WIRING
   1. Check the following:
      • "B" terminal circuit. Refer to Diagnosis Procedure .
      • "S" terminal circuit. Refer to Diagnosis Procedure .

   Are these inspection results normal?

   YES>>

   GO TO 9.

   NO>>

   Repair as needed.

9. CHECK MAGNETIC SWITCH OPERATION
   1. Check magnetic switch operation. Refer to Inspection .

   Does magnetic switch operate normal?

   YES>>

   GO TO 10.

   NO>>

   Replace magnetic switch or starter motor.

10. CHECK PINION TURNING
    1. 1. Remove starter motor. 2. Check that pinion turns smoothly by hand.

    Does pinion turn normally?

    YES>>

    Perform no-load test of starter motor. Refer to Inspection .

    NO>>

    Check pinion clutch. Refer to Inspection .
