Exploded View

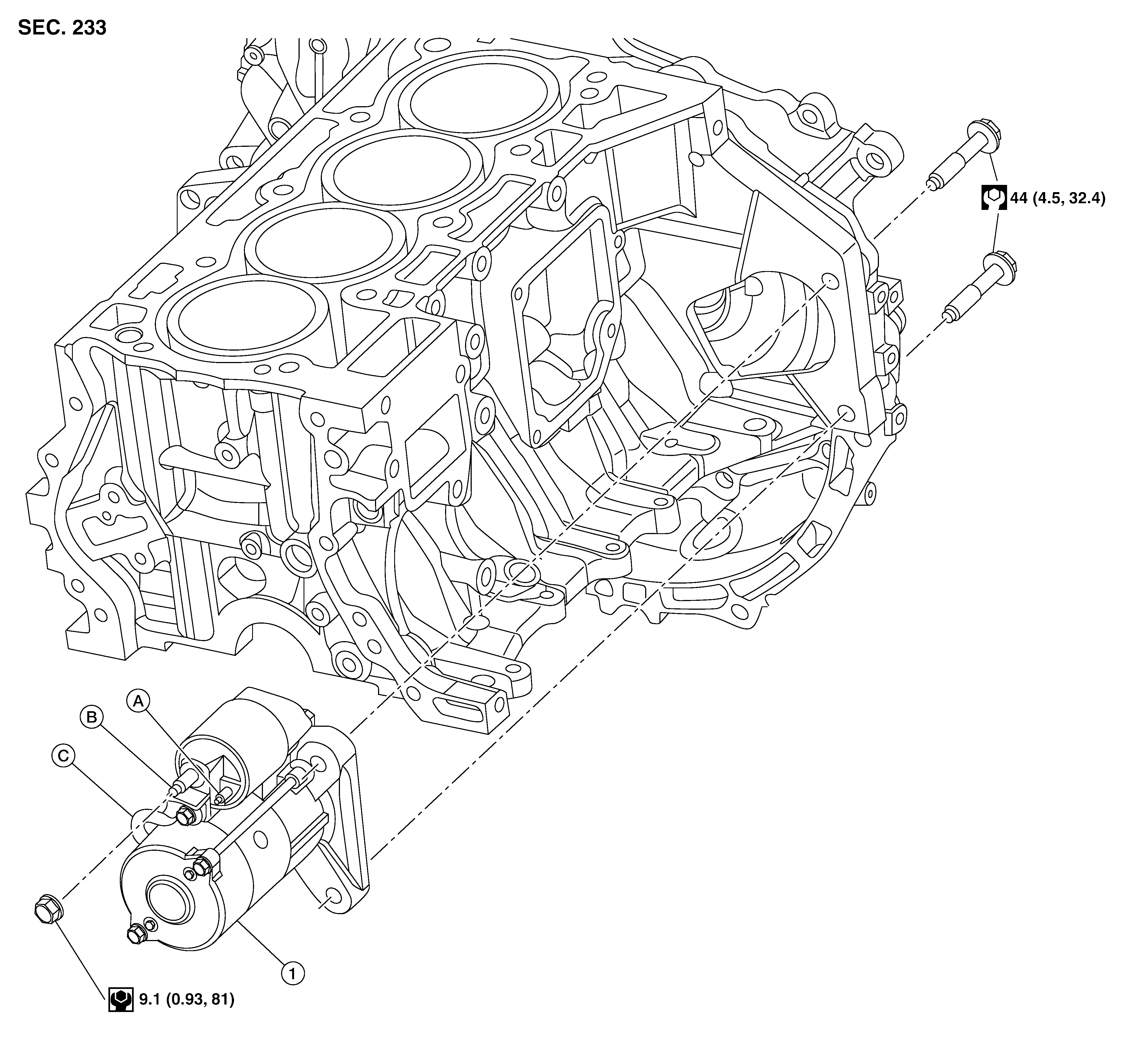

Fig 1: Starter Motor With Torque Specifications
GNSDB139377Courtesy of NISSAN NORTH AMERICA, INC.
1. Starter assembly A. "S" Connector B. "B" Terminal
C. Ground harness
