Malfunction Indicator Lamp (MIL)

DESIGN/PURPOSE

When a malfunction which increases exhaust gases is detected, ECM turns ON MIL and informs the driver of the necessity of inspection and repair. When a malfunction which causes damage to the catalyst is detected, ECM immediately blinks MIL to alert the driver.

Courtesy of NISSAN NORTH AMERICA, INC.

BULB CHECK

The bulb turns ON after turning ON the ignition switch (engine stop) and turns OFF after restarting the engine.

OPERATION AT COMBINATION METER CAN COMMUNICATION CUT-OFF OR UNUSUAL SIGNAL

For the operation for CAN communication blackout in the combination meter, refer to Fail-Safe .

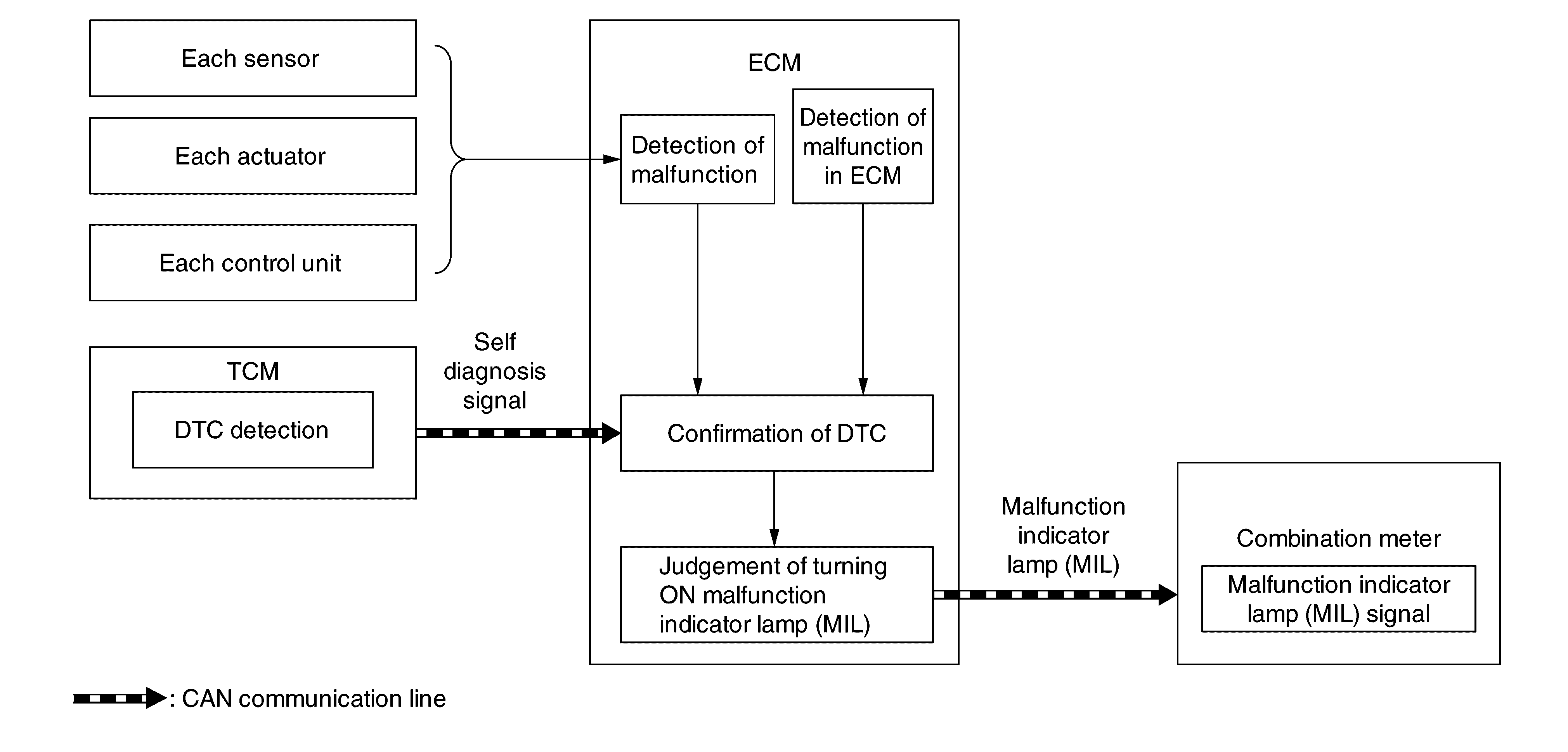

SYSTEM DIAGRAM

Courtesy of NISSAN NORTH AMERICA, INC.

SIGNAL PATH

• When the lighting conditions of the malfunction indicator lamp (MIL) are satisfied, ECM transmits a malfunction indicator lamp (MIL) signal to the combination meter via CAN communication.
• The combination meter turns ON or blinks the malfunction indicator lamp (MIL), according to a signal received from ECM.

LIGHTING CONDITION

When all of the following conditions are satisfied:

• Ignition switch: ON
• DTC which influences on exhaust gasses is judged.

For DTCs that the malfunction indicator lamp turns ON and the number of DTC diagnosis trips, refer to DTC Index .

SHUTOFF CONDITION

When any of the following conditions is satisfied:

• Ignition switch: OFF
• Erase DTC

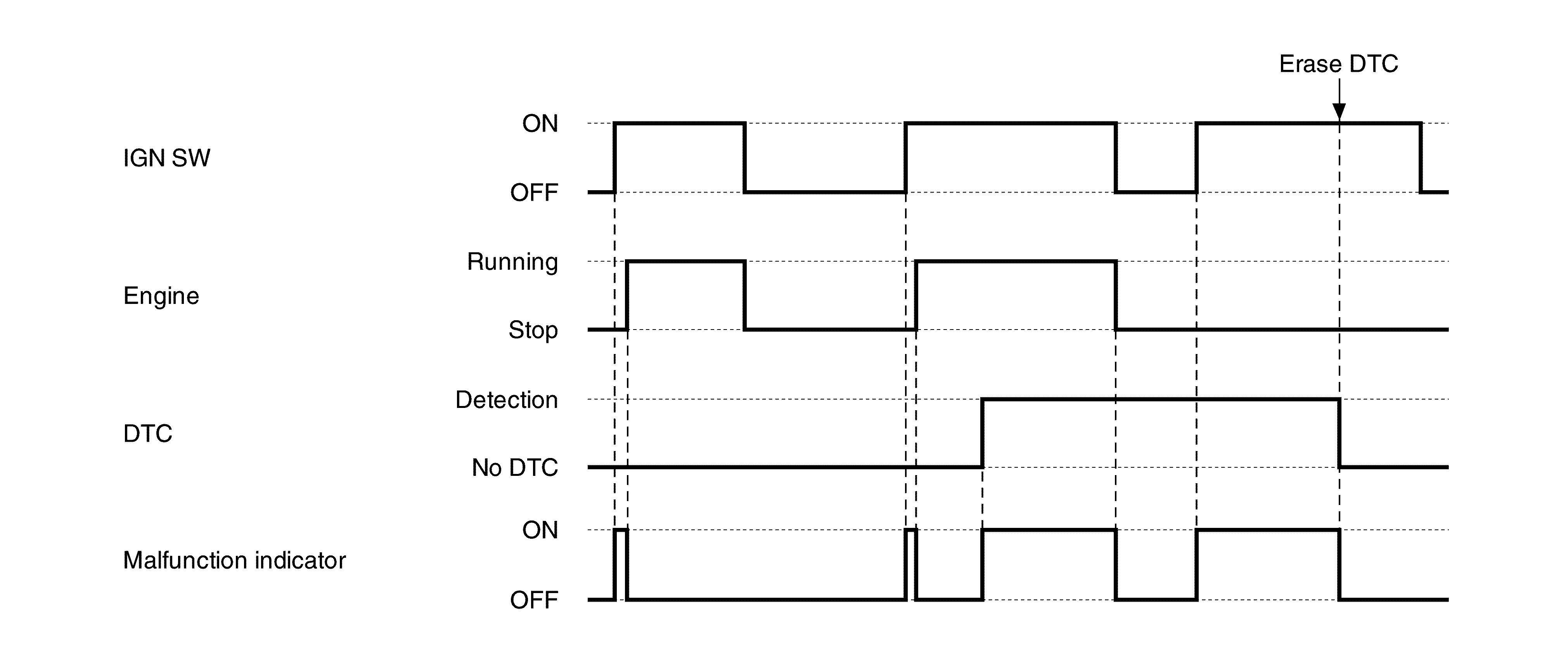

TIMING CHART

Courtesy of NISSAN NORTH AMERICA, INC.
