Exploded View

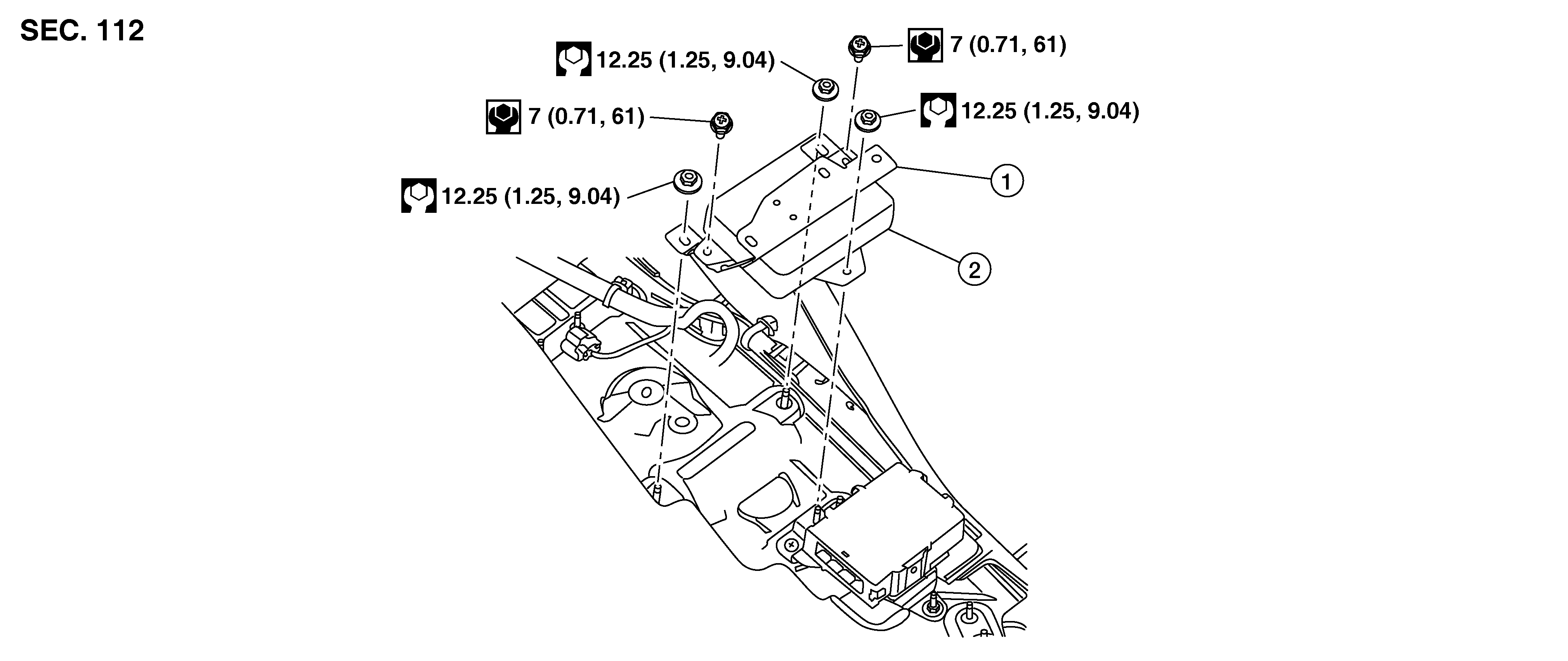

Fig 1: Active Torque Rod Control Module With Torque Specifications

GNSDB138314

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Bracket

2.

Active torque rod control module
