Exploded View

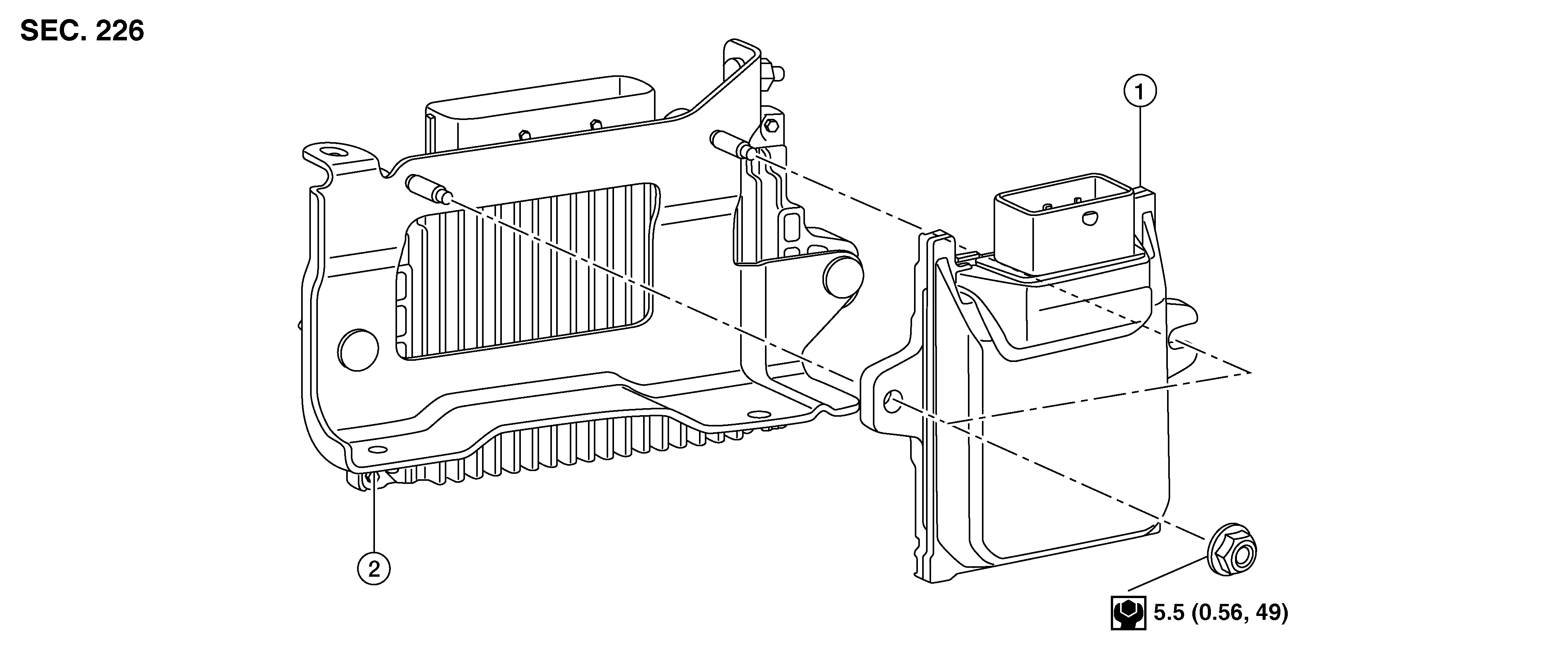

Fig 1: Electric Intake Valve Timing Control Module With Torque Specifications

GNSDB139515

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Electric intake valve timing control module

2.

Bracket
