Exploded View

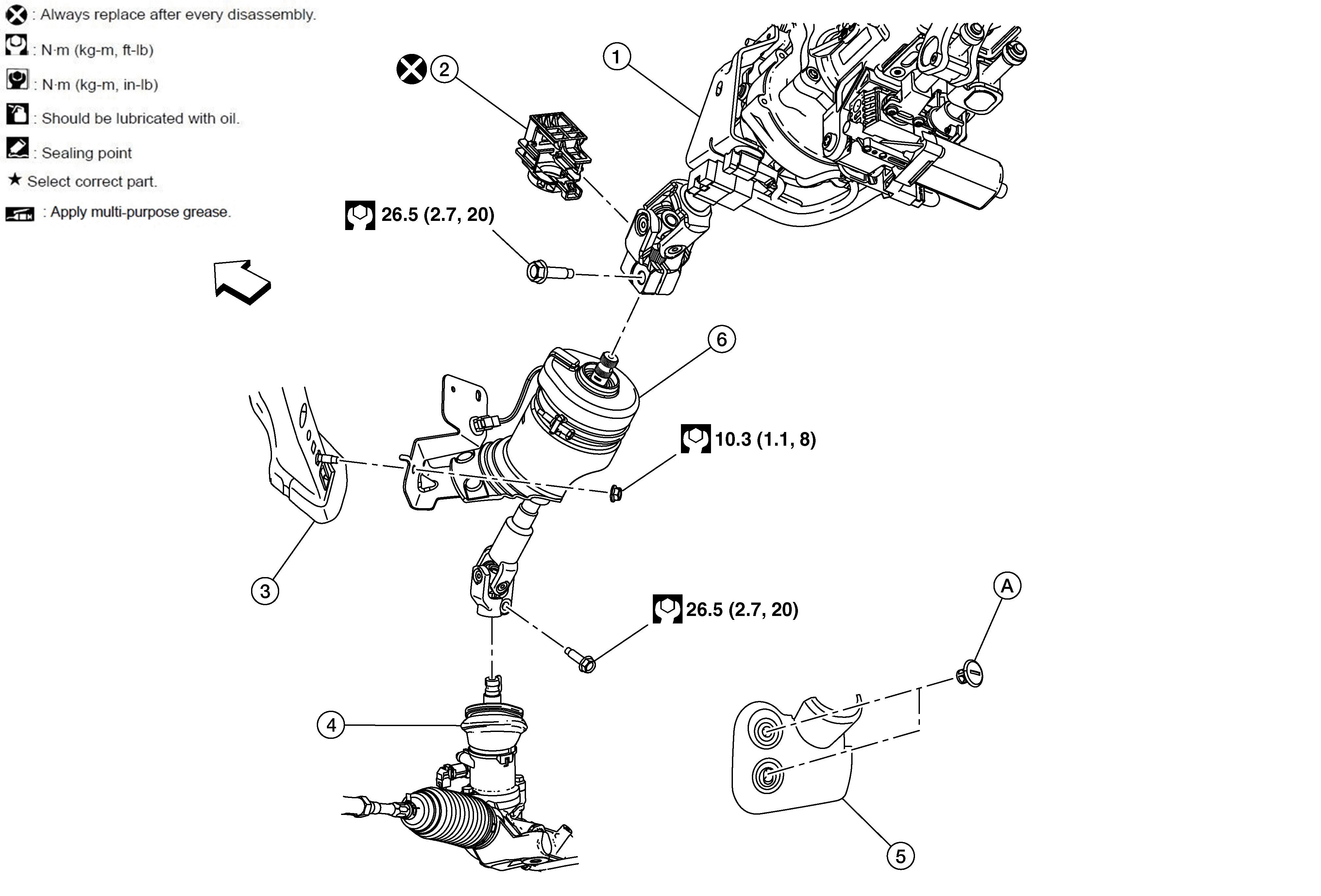

Fig 1: Lower Joint With Torque Specifications
GNSDB138720Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering column 2. Collar 3. Dash panel
4. Steering gear 5. Lower joint cover 6. Lower joint
A. Clip SYMBOL Front
